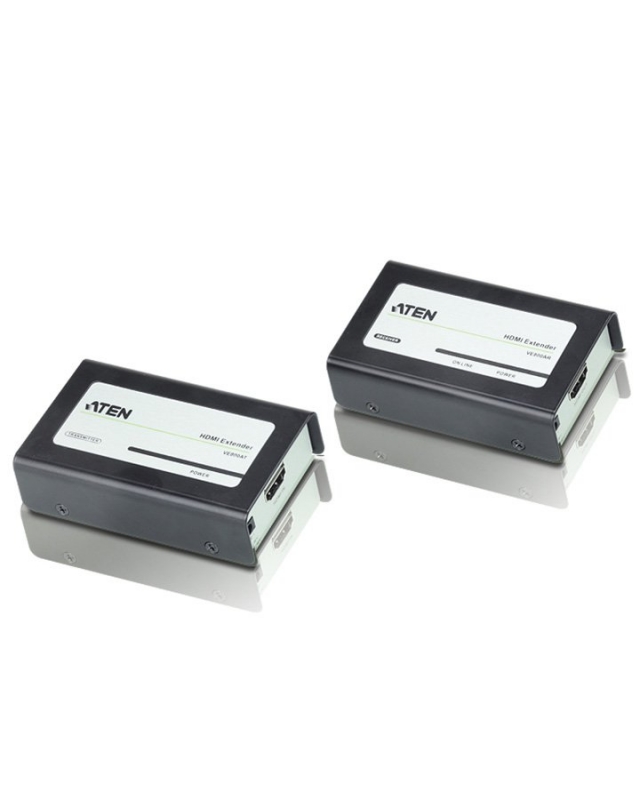

Aten Ve-800a Extender Ve-800a
| SKU: | 238581 |
|---|---|
| MPN: | 006.008.1021 Link |
| Manufacturer: | http://www.aten.com/global/en/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
- Extends the distance between HDMI source and HDMI display
- Uses Cat 5e cable to connect the local and remote units
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Specifications
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ώ
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ώ N/A
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible HDMI (3D, Deep Color)
HDCP Compatible
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Up to 1080p@40m; 1080i@60m
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Power
Connectors 1 x DC Jack 1 x DC Jack
Consumption 5 VDC, 0.75W 5 VDC, 1W
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.16 kg ( 0.35 lb ) 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) 9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.) 9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)
Carton Lot 5 pcs 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
