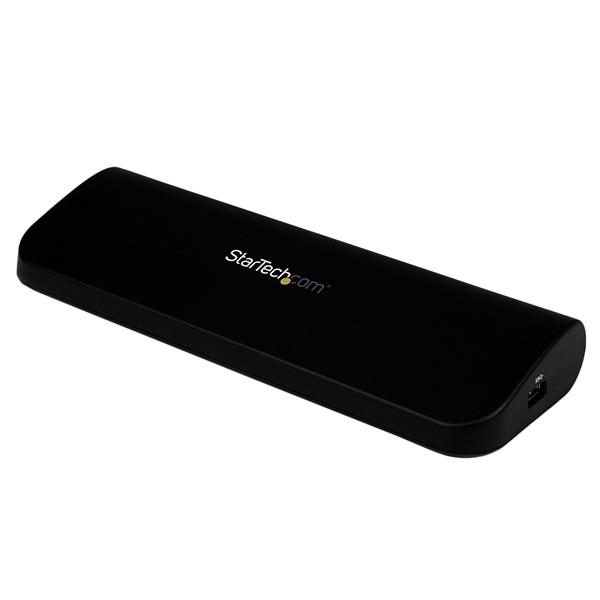

Startech Universal Usb 3.0 Laptop Docking Station - Dual Video Hdmi Dvi Vga - Notebook/ Ultrabook
| SKU: | 205406 |
|---|---|
| MPN: | USB3SDOCKHDV Link |
| Manufacturer: | http://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Add HDMI® and DVI-D, or HDMI and VGA dual video, as well as audio and Gigabit Ethernet connections to your laptop through USB 3.0. The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet lets you add dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook™ computer through a single USB 3.0 connection.
This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity for users who need to connect and manage multiple devices at home or at the office.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Connectivity Technology: Wired
DVI: Yes
Device Supported: Notebook
HDMI: Yes
Microphone: Yes
Network (RJ-45): Yes
Number of USB 3.0 Ports: 3
Product Type: Docking Station
Total Number of USB Ports: 3
VGA: Yes
General Information
Brand Name: StarTech.com
Manufacturer Part Number: USB3SDOCKHDV
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add HDMI® and DVI-D, or HDMI and VGA dual video, as well as audio and Gigabit Ethernet connections to your laptop through USB 3.0. The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet lets you add dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook™ computer through a single USB 3.0 connection.
This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity for users who need to connect and manage multiple devices at home or at the office.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name: HDMI DVI VGA Dual Video Universal USB 3.0 Laptop Docking Station
Product Type: Docking Station
Interfaces/Ports
DVI: Yes
HDMI: Yes
Headphone: Yes
Host Interface: USB
Microphone: Yes
Network (RJ-45): Yes
Number of USB 3.0 Ports: 3
Total Number of USB Ports: 3
VGA: Yes
Miscellaneous
Green Compliant: Yes
Physical Characteristics
Colour: Black
Height: 34 mm
Length: 263 mm
Weight (Approximate): 289 g
Width: 87 mm
Technical Information
Cable Length: 90 cm
Connectivity Technology: Wired
Device Supported: Notebook
Features: Cable Lock Slot
Specifications
| Connector(s) | |
| Connector Type(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-D (25 pin) Female | |
| HDMI (19 pin) Female | |
| RJ-45 Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-B (9 pin) USB 3.0 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| 4K Support | No |
| Bus Type | USB 3.0 |
| Chipset ID | DisplayLink - DL-3900 Genesys Logic - GL3520 Realtek - RTL8211E |
| Displays Supported | 2 |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 |
| Packaging Information | |
| Shipping (Package) Weight | 760 g [26.8 oz] |
| Performance | |
| Audio Specifications | The HDMI port supports audio output |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Analog Resolutions | 2048x1152 (VGA) |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1920x1200 (DVI-D) 1920x1080 (HDMI) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Cable Length | 0.9 m [3 ft] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 44 mm [1.7 in] |
| Product Length | 304 mm [12 in] |
| Product Weight | 289 g [10.2 oz] |
| Product Width | 178 mm [7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.9 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 4 A |
| Output Voltage | 5 DC |
| Plug Type | B |
| Power Consumption (In Watts) | 20 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 Mac OS? 10.6 to 10.13 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available AC electrical outlet |
| HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables | |
| USB 3.0 enabled computer system with available USB 3.0 port | |
| What's in the Box | |
| Included in Package | 0.9m USB 3.0 Cable |
| Docking Station | |
| Installation CD | |
| Instruction Manual | |
| Universal Power Adapter (NA/EU/UK/AU) | |
Vendor Info
The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet lets you add dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook??™ computer through a single USB 3.0 connection.
This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity.
With a range of convenient connections, the dock is ideal for hoteling in shared workspaces, and for hot desks.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
