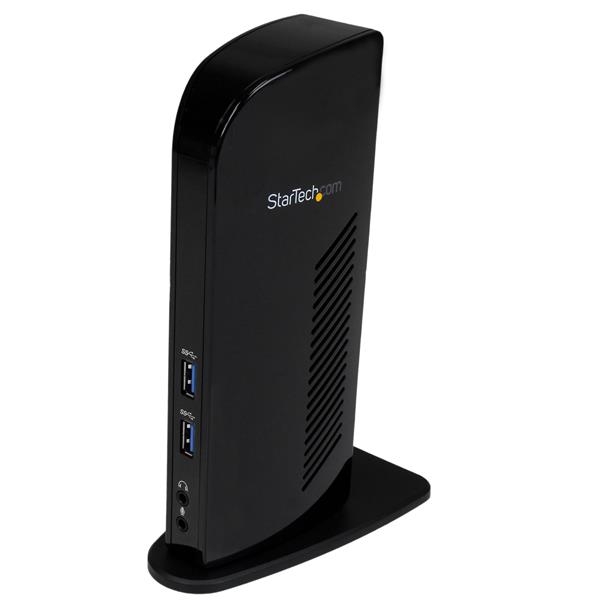

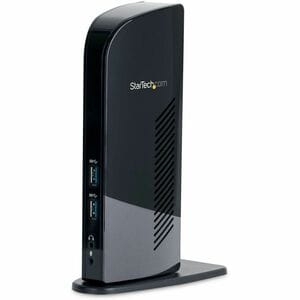

Startech Universal Usb 3.0 Laptop Docking Station Dual Video Hdmi Dvi W/ Audio Ethernet - Port
| SKU: | 205405 |
|---|---|
| MPN: | USB3SDOCKHD Link |
| Manufacturer: | http://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Add HDMI® and DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port. The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.
Offering flexible dual video combinations right out-of-the-box, this versatile universal docking station features HDMI and DVI external monitor outputs, as well as an included DVI to VGA adapter. Plus, each of the video outputs provided by the docking station supports video resolutions up to 1920x1200 and HD video playback - an ideal solution for adding robust video capability while remaining conveniently mobile.
An all-in-one mobile solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office.
Brand Name: StarTech.com
Connectivity Technology: Wired
DVI Out: Yes
DVI: Yes
Device Supported: Notebook
HDMI Out: Yes
HDMI: Yes
Microphone: Yes
Network (RJ-45): Yes
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Product Type: Docking Station
Total Number of USB Ports: 6
Built-in Devices
Speakers: Yes
General Information
Brand Name: StarTech.com
Manufacturer Part Number: USB3SDOCKHD
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add HDMI® and DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port. The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.
Offering flexible dual video combinations right out-of-the-box, this versatile universal docking station features HDMI and DVI external monitor outputs, as well as an included DVI to VGA adapter. Plus, each of the video outputs provided by the docking station supports video resolutions up to 1920x1200 and HD video playback - an ideal solution for adding robust video capability while remaining conveniently mobile.
An all-in-one mobile solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office.
Product Name: Universal USB 3.0 Laptop Docking Station - Dual Video HDMI DVI w/ Audio Ethernet
Product Type: Docking Station
Interfaces/Ports
DVI Out: Yes
DVI: Yes
HDMI Out: Yes
HDMI: Yes
Headphone: Yes
Host Interface: USB
Microphone: Yes
Network (RJ-45): Yes
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Total Number of USB Ports: 6
Miscellaneous
Additional Information:
Universal docking station adds dual independant external monitor outputs (HDMI, DVI) that can extend or mirror the desktop at up to 2048x1152
USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
Green Compliant: Yes
Physical Characteristics
Colour: Black
Height: 126.2 mm
Length: 195.8 mm
Weight (Approximate): 364.3 g
Width: 77 mm
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Specifications
| Connector(s) | |
| Connector Type(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| HDMI (19 pin) Female | |
| RJ-45 Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Operating Temperature | 10?C to 40?C (50?F to 104?F) |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Hardware | |
| 4K Support | No |
| Bus Type | USB 3.0 |
| Chipset ID | DisplayLink - DL-3900 VIA/VLI - VL810 Terminus - FE1.1 Realtek - RTL8211E |
| Displays Supported | 2 |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, 802.3u, and 802.3ab |
| Indicators | |
| LED Indicators | Power (Blue) |
| USB Hub Link (Blue) | |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 929 g [32.8 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Digital Resolutions | 1920 x 1200 |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| USB 3.0 - 5 Gbit/s | |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 195 mm [7.7 in] |
| Product Length | 125 mm [4.9 in] |
| Product Weight | 362 g [12.8 oz] |
| Product Width | 70 mm [2.8 in] |
| Power | |
| Input Current | 0.8A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 4A |
| Output Voltage | 5 DC |
| Plug Type | C |
| Power Consumption (In Watts) | 20 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 Mac OS? 10.6 to 10.13 Chrome OS v55+ |
| Special Notes / Requirements | |
| Note | The DVI-I connector supports DVI-I signaling (digital and analog) |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz or betterRAM: 2GB or higherAvailable USB 3.0 port |
| What's in the Box | |
| Included in Package | Driver CD |
| DVI to VGA Adapter | |
| Instruction Manual | |
| Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| USB 3.0 Cable | |
| USB 3.0 Docking Station | |
Vendor Info
The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.
Offering flexible dual video combinations right out-of-the-box, this versatile universal docking station features HDMI and DVI external monitor outputs, as well as an included DVI to VGA adapter. Plus, each of the video outputs provided by the docking station supports video resolutions up to 1920x1200 and HD video playback - an ideal solution for adding robust video capability while remaining conveniently mobile.
An all-in-one mobile solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing your laptop's capabilities.
With an upright design, the dock occupies minimal desk space, so it's perfect for hoteling or hot desk environments.
