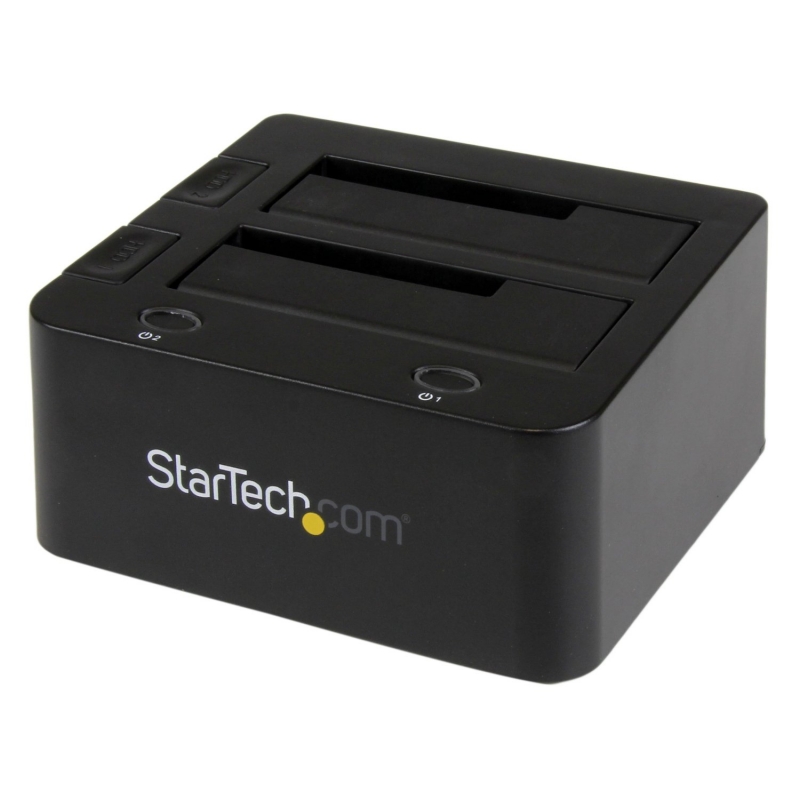

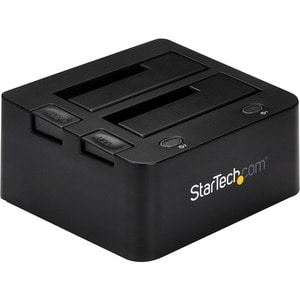

Startech Universla Hard Drive Docking Station - Sata And Ide Dock - 2.5in & 3.5in Hdd And Ssd Docking
| SKU: | 225956 |
|---|---|
| MPN: | UNIDOCKU33 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Specifications
| Connector(s) | |
| Drive Connectors | IDE (40 Pin, EIDE/PATA) Male |
| LP4 (4 pin, Molex Large Drive Power) Male | |
| SATA Data & Power Combo (7+15 pin) Receptacle | |
| Host Connectors | USB Type-B (9 pin) USB 3.0 Female |
| Environmental | |
| Humidity | 8% ~ 90% RH |
| Operating Temperature | 5?C to 80? (41?F to 176?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Chipset ID | JMicron - JMS561U JMicron - JMD330 |
| Compatible Drive Types | SATA & IDE |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Power and Drive Activity |
| Packaging Information | |
| Shipping (Package) Weight | 1.1 kg [2.3 lb] |
| Performance | |
| Insertion Rating | 15,000 Cycles (SATA) |
| Max Drive Capacity | Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 30000 hours |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 70 mm [2.8 in] |
| Product Length | 147 mm [5.8 in] |
| Product Weight | 512 g [18.1 oz] |
| Product Width | 130 mm [5.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.3 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 40 Pin + LP4 to 44 Pin IDE Cable |
| IDE 40 to 40 Pin Cable | |
| Instruction Manual | |
| LP4 Power Cable | |
| Universal Hard Drive Dock | |
| Universal Power Adapter (NA/UK/EU/AUS) | |
| USB 3.0 Cable | |
Vendor Info
The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
