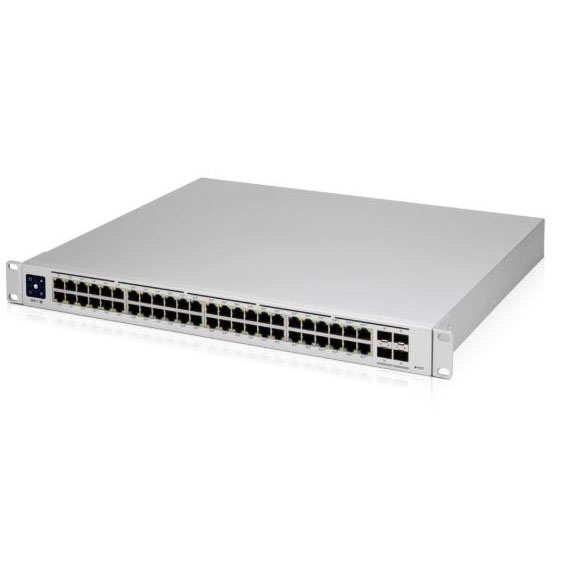

Ubiquiti UniFi USW-PRO-POE-48-POE Gen 2 | UniFi 48 Port Gigabit Switch PoE and SFP+ UB.USW.PRO.48POE

$2,255.00
SKU:297327
MPN:UB.USW.PRO.48POE
Manufacturer:https://www.ui.com/
Brand: Ubiquiti
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

DETAILS

UBIQUITI UNIFI USW-PRO-POE-48-POE GEN 2 | UNIFI 24 PORT GIGABIT SWITCH POE AND SFP+

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch PRO 48 PoE, is a configurable Gigabit Layer-3 switch (Layer3 will be included in later software release) with auto-sensing 40 802.3at PoE+ and 8 802.3bt PoE++. It offers 48 RJ45 Ethernet ports and 4 SFP+ ports, providing 10 Gigabit PoE links to your devices and fiber uplink options to your enterprise network.

The UniFi Switch PRO 48 PoE features a 1.3" touch LCM and integrated fans for quiet cooling. The LCM provides current switch states and the necessary information you need for quick diagnosis.

Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features (Layer3 will be included in later software release), including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing and DHCP server. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

SPECIFICATIONS

  • (40) Gigabit RJ45 ports with PoE 802.3af/at
  • (8) Gigabit RJ45 ports with 802.3bt
  • (4) 1/10G SFP+ ports
  • 1RU Rackmountable (hardware included)
  • 400W Total available PoE
  • Up to a maximum of 64W per port

FEATURES

  • Auto-sensing IEEE 802.3af/at/bt PoE to power your PoE devices, such as UniFi APs and cameras
  • SFP+ Ports enable network uplinks of up to 10 Gbps
  • Near silent cooling with integrated fans featuring PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
  • 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.
  • Scalable UniFi Network Controller
  • Forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
  • Point

WORKS WITH UNIFI NETWORK CONTROLLER

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
Dimensions 442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72")
Weight
With Rackmount Brackets
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)
Interfaces
Networking

Management
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports

Ethernet In-Band
Power Method
Universal Input
USP RPS DC Input

100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 120W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 60W
LEDs
System
RJ45 Data Ports
SFP Data Ports

Status
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
SOUND LEVEL*
25% PoE Load, 25° C Room Temperature 0.9 dBr
50% PoE Load, 25° C Room Temperature 7.3 dBr
100% PoE Load, 40° C 22.5 dBr
POE
PoE Interfaces
Ports 1-40
Ports 41-48

POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE
802.3at
802.3bt

32W
64W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
