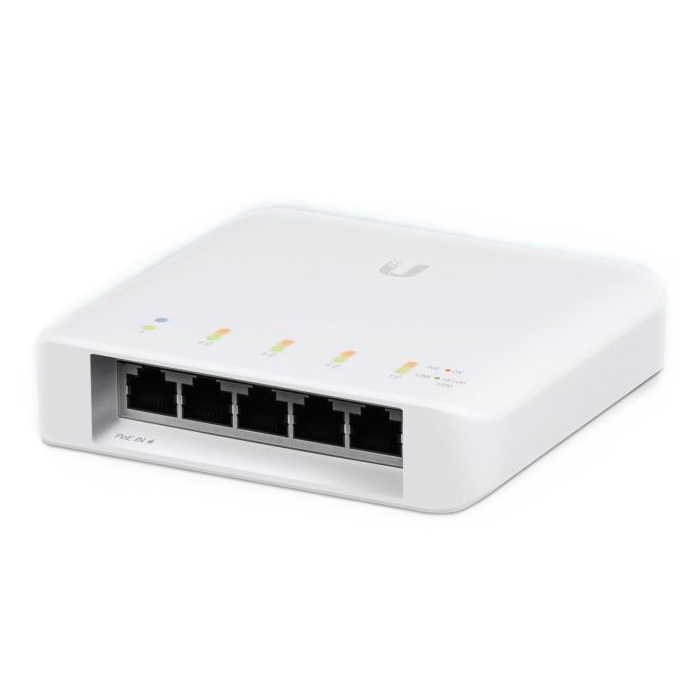

Ubiquiti USW-FLEX Indoor/Outdoor 5 Port PoE Gigabit Switch with 802.3bt Input Power Support UB.USW.FLEX
| SKU: | 375128 |
|---|---|
| MPN: | UB.USW.FLEX |
| Manufacturer: | https://www.ui.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
DETAILS
UBIQUITI USW-FLEX INDOOR/OUTDOOR 5 PORT POE GIGABIT SWITCH WITH 802.3BT INPUT POWER SUPPORT
Build and expand your network with the UniFi® Switch Flex, model USW-Flex. It is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. Five RJ45 Gigabit Ethernet ports provide one PoE input and four PoE output links to your devices.
FEATURES:
Switching Performance
The USW-Flex offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
PoE Flexibility
The USW-Flex features five Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network. Port 1 provides PoE input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af
Indoor/Outdoor Design
An outdoor weatherproof enclosure, the USW Flex Utility, is available as an optional accessory. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. Easily mounted on a pole, the USW Flex Utility provides clean cable management and a screw lock for security.
SCALABLE UNIFI NETWORK CONTROLLER
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Switch Port Status
You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
- Operation mode (switching or mirroring) per port
- Network/VLAN configuration
- Jumbo frame services
- Network settings
- Debug terminal option for command-line interface
Software Features
The UniFi Network Controller software offers the following features:
- Centralized configuration management (including configuration cloning)
- Auto-MDIX automatically adjusts as needed for straight-through or crossover cable
Specifications
| Product Name | Ubiquiti USW-FLEX Indoor/Outdoor 5 Port PoE Gigabit Switch with 802.3bt Input Power Support |
|---|---|
| Part#: | UB.USW.FLEX |
| Weight (kg) | 0.460000 |
| Manufacturer | Ubiquiti |
| Form Factor | Desktop |
| PoE | Yes PoE |
| SFP | No SFP |
| Number of Ports | Less than 8 |
| Predominant Port Type | Gigabit Copper |
| Colour | White |
| Warranty | 1 Year |
