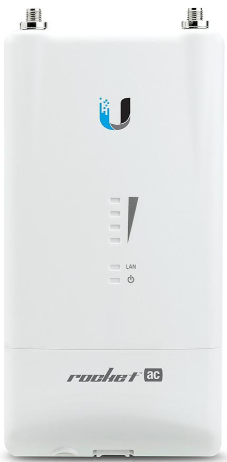

Ubiquiti | AirMAX AC BaseStation | R5AC-LITE | Rocket 5AC PtMP Lite

Upgrade your wireless network to new heights with the Ubiquiti AirMAX AC BaseStation R5AC-LITE, the Rocket 5AC PtMP Lite. Operating in the unlicensed 5 GHz frequency band, this powerhouse base station is designed for long-distance links and covers the full 5 GHz spectrum. Whether you're connecting remote locations or extending network coverage, the Rocket 5AC PtMP Lite ensures reliable, high-speed connectivity.

Harness the power of Gigabit Ethernet to achieve lightning-fast data transfer rates over its wired connection. Plus, with Passive Power over Ethernet (PoE) functionality, you can streamline installation and simplify cabling. Carry both power and data over a single Ethernet cable to the Rocket ac using the included PoE Adapter or an optional PoE switch, making setup a breeze.

With an impressive output power of up to 27 dBm, the Rocket 5AC PtMP Lite provides robust signal strength and coverage. Its plug-and-play integration simplifies installation further, as every airMAX antenna comes with a built-in Rocket mount, eliminating the need for tools. For optimal performance, pair it with airMAX ac antennas and experience seamless, high-performance networking like never before. Elevate your network today with the Ubiquiti Rocket 5AC PtMP Lite and stay connected at the speed of innovation.

FEATURES
5 GHz Frequency Band: This unlicenced band of plentiful spectrum works well for long-distance links. The Rocket5ac Lite covers the full-band 5 GHz Spectrum.
Gigabit Ethernet: Delivers high throughput over its wired connection.
Passive Power over Ethernet (PoE): 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Rocket ac. Use the included PoE Adapter or an optional PoE switch.
Output Power The Rocket5ac Lite offers up to 27 dBm of output power.
Plug and Play Integration Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket ac. (airMAX ac antennas are recommended for optimal performance.)
SPECIFICATIONS
Dimensions: 162 x 84 x 37 mm

Weight: 250 g

Power Supply: 24V, 0.5A Gigabit PoE Adapter
Max. Power Consumption: 8.5W

Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 18-26VDC

Networking Interface: (1) 10/100/1000 Ethernet Port

Processor Specs: Atheros MIPS 74Kc, 720 MHz

Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH
LEDs: Power, LAN, (4) Signal Strength

Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Enclosure: Outdoor UV Stabilized Plastic

ESD/EMP Protection: ± 24KV Air / Contact

Operating Temperature: -40 to 80° C
Operating Humidity: 5 to 95% Noncondensing

RoHS Compliance: Yes

Modes: Access Point, Station
Shock and Vibration: ETSI300-019-1.4
WARRANTY

2-year limited warranty
