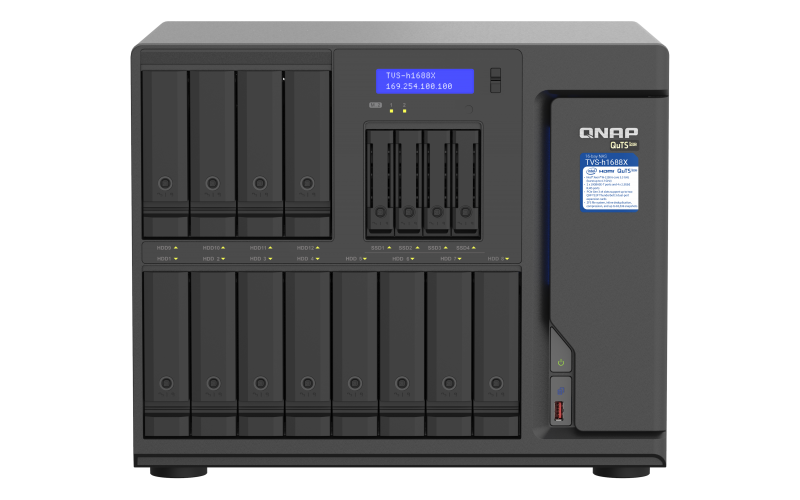

    main product photo

    Qnap TVS-h1688X-W1250-32G,16-Bay TurboNAS(12 X 3.5" Hdd+ 4 X 2.5" SSD),Sata 6G,Intel Xeon W-1250 6 Cores/12 Threads 3.3 GHz(boost Up To 4.7 GHz),32GB DDR4, 3 Yr TVS-h1688X-W1250-32G

    $11,627.00
    SKU:306299
    MPN:TVS-h1688X-W1250-32G Link
    Manufacturer:https://www.qnap.com
    Brand: Qnap
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    QNAP TVS-h1688X-W1250-32G, 16-Bay TurboNAS (12 x 3.5" HDD + 4 x 2.5" SSD), SATA 6G, Intel Xeon W-1250 6 cores 12 threads 3.3 GHz (boost up to 4.7 GHz), 32GB DDR4 ECC RAM (max. 128GB), 4 x 2.5GbE, 2 x 10GBASE-T 10GbE, 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 SSD slots for SSD cache, optional QNAP QXP-T32P 2-port Thunderbolt 3 card support, 3 x PCIe expansion slots (pre-installed 2-port 10GBASE-T card), integrated graphics, 4K HDMI v1.4b, USB 3.2 Gen2, 550W single power supply
    CPUIntel Xeon W-1250 (6 cores, 3.3 GHz base, boost up to 4.7 GHz)
    GPUIntel UHD Graphics P630
    SKUTVS-h1688X-W1250-32G
    UPC885022020423
    HDMI1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
    TypeDesktop NAS
    BrandQNAP
    ModelTVS-h1688X-W1250-32G
    NotesDrive bay counts: twelve 3.5" + four 2.5" SATA III. Some vendor listings reference a 264 TB maximum raw capacity. Refer to manufacturer documentation for drive/RAID configuration limits and compatibility.
    Weight29.6 lb (13.4 kg)
    Cooling3 x 80 mm fans
    M.2 Slots2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots (for SSD cache)
    USB Ports4 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C
    DimensionsDepth: 12.59 in Width: 14.56 in Height: 11.96 in Metric: 36.98 x 31.98 x 30.38 cm
    Drive Bays16 total (12 x 3.5" SATA III + 4 x 2.5" SATA III)
    Max Memory128 GB
    DescriptionHigh-capacity 16-bay desktop NAS designed for demanding workflows such as media production, virtualization, and enterprise backup. Powered by an Intel Xeon W-1250 6-core CPU (3.3 GHz, boost up to 4.7 GHz) with 32 GB ECC DDR4 memory (2 x 16 GB, expandable to 128 GB) and Intel UHD Graphics P630 for 4K transcoding. The chassis supports twelve 3.5" and four 2.5" SATA III drives (diskless), two M.2 NVMe PCIe Gen3 x4 slots for cache, dual 10GbE plus quad 2.5GbE networking, multiple USB 3.2 Gen 2 ports (Type-A and Type-C), HDMI output (up to 4K@30Hz), QuTS hero (ZFS-based) for inline deduplication/compression and enterprise-grade data protection, and flexible PCIe expansion including optional Thunderbolt 3 via QXP-T32P cards.
    Form Factor16-Bay (desktop)
    Memory TypeECC DDR4
    Noise Level25.8 dBA
    Key Features16-bay chassis for high-capacity storage ZFS-based QuTS hero with inline deduplication and compression, near-limitless snapshots, SnapSync, and read/write cache technologies High-speed connectivity with 2 x 10GbE and 4 x 2.5GbE; port trunking and failover supported Supports virtualization, container apps, file server, backup/recovery, and media collaboration Optional Thunderbolt 3 expansion via QXP-T32P cards Real-time 4K media playback and transcoding; HDMI output
    Memory Slots4 x DDR4 DIMM
    Power Supply1 x 500 W PSU
    Network Ports2 x 10GBASE-T (10GbE), 4 x 2.5G Ethernet (2.5GbE)
    Product TitleQNAP TVS-h1688X-W1250-32G 16-Bay NAS (Intel Xeon W-1250, 32GB ECC, 2x10GbE + 4x2.5GbE)
    LED IndicatorsSystem status, LAN, USB, Disk 1-16, M.2 SSD 1-2
    PCIe Expansion3 x PCIe 3.0 slots (supports 5/10/25/40GbE adapters, QM2 cards, graphics cards); supports installing two QXP-T32P Thunderbolt 3 cards to provide up to four Thunderbolt 3 ports
    Supported RAIDRAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 Support for triple parity and triple mirror setups
    Included StorageDiskless (no HDDs included)
    Memory Installed32 GB ECC DDR4 (2 x 16 GB)
    Power ConsumptionInput Voltage: 100 - 240 V Typical (Access): 108.67 W HDD Hibernation / Idle: 91.26 W
    Operating Humidity5 - 95% RH non-condensing (wet bulb: 27°C / 80.6°F)
    Drive Compatibility3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
    Operating Temperature0 - 40°C (32 - 104°F)
    Sequential Read SpeedUp to 1403 MB/s (vendor-stated)
    Manufacturer Part NumberTVS-H1688X-W1250-32G-US
    Operating System / SoftwareQuTS hero (ZFS-based). Installed OS entry also lists QTS 4.5 in vendor specs.
    Package Contents / Included AccessoriesQNAP TVS-h1688X Storage enclosure 1 x Power cord 1 x 10GBASE-T Ethernet cable 36 x Flat head screws for 3.5" HDD 36 x Flat head screws for 2.5" HDD 2 x M.2 SSD heatsinks 2 x Drive tray keys Quick Installation Guide
    QNAP TVS-h1688X-W1250-32G,16-Bay TurboNAS(12 x 3.5" HDD+ 4 x 2.5" SSD),SATA 6G,Intel Xeon W-1250 6 cores/12 threads 3.3 GHz(boost up to 4.7 GHz),32GB DDR4, 3 Yr
