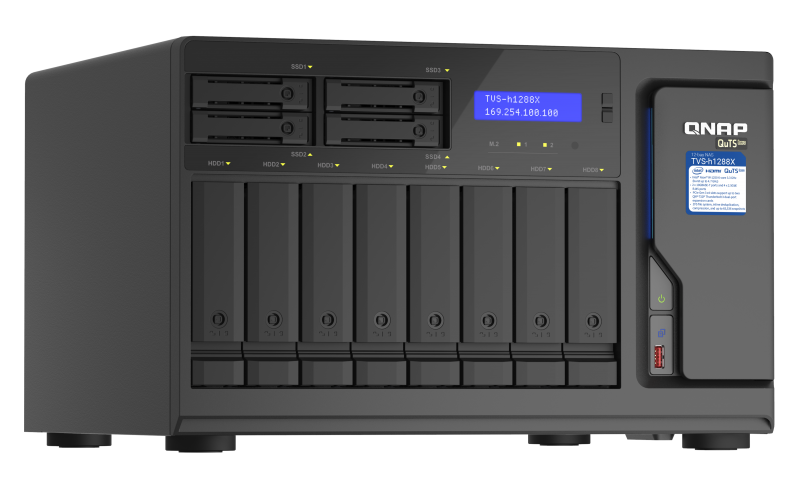

Qnap TVS-h1288X-W1250-16G,12-Bay TurboNAS(8 X 3.5" Hdd + 4 X 2.5" SSD),Sata 6G,Intel Xeon W-1250 6 Cores/12 Threads 3.3 GHz(boost Up To 4.7 GHz),16GB DDR4, 3 Yr TVS-h1288X-W1250-16G
$5,531.00
| SKU: | 304313 |
|---|---|
| MPN: | TVS-h1288X-W1250-16G Link |
| Manufacturer: | https://www.qnap.com |
| Brand: | Qnap |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
QNAP TVS-h1288X-W1250-16G, 12-Bay TurboNAS (8 x 3.5" HDD + 4 x 2.5" SSD), SATA 6G, Intel Xeon W-1250 6 cores 12 threads 3.3 GHz (boost up to 4.7 GHz), 16GB DDR4 ECC RAM (max. 128GB), 4 x 2.5GbE, 2 x 10GBASE-T 10GbE, 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 SSD slots for SSD cache, optional QNAP QXP-T32P 2-port Thunderbolt 3 card support, 3 x PCIe expansion slots (pre-installed 2-port 10GBASE-T card), integrated graphics, 4K HDMI v1.4b, USB 3.2 Gen2, 550W single power supply
Specifications
▼
| SKU | TVS-h1288X-W1250-16G |
|---|---|
| USB | 5 x USB 3.2 Gen2 (2 x Type-C, 3 x Type-A) — 10 Gbps |
| HDMI | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Audio | 1 x audio in (mini-jack), 1 x audio out (mini-jack) |
| Brand | QNAP |
| Color | Black |
| Model | TVS-h1288X-W1250-16G |
| Series | TVS-h1288X |
| GTIN_UPC | 0885022020430 |
| Warranty | 3-year standard warranty (extension to 5 years available) |
| CPU_Clock | 3.3 GHz base, up to 4.7 GHz boost |
| M.2_Slots | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 |
| Processor | Intel Xeon W-1250 |
| Drive_Bays | 8 x 3.5-inch SATA + 4 x 2.5-inch SATA (hybrid design, total 12 bays) |
| PCIe_Slots | 3 (Slot 1: PCIe Gen3 x8 — preinstalled 2-port 10GbE; Slot 2: PCIe Gen3 x4; Slot 3: PCIe Gen3 x4) |
| Description | High-capacity desktop NAS for professional media, virtualization and backup workloads. Powered by an Intel Xeon W-1250 6-core/12-thread processor (3.3 GHz base, up to 4.7 GHz boost) with Intel UHD Graphics P630 and AES-NI encryption, the TVS-h1288X runs the ZFS-based QuTS hero OS (also compatible with QTS) to provide inline deduplication, compression, near-limitless snapshots, SnapSync and read/write cache technologies. The hybrid 12-bay design (8x 3.5" + 4x 2.5") plus 2x M.2 NVMe slots enables high-capacity storage with SSD caching. Built-in networking includes 2x 10GBASE-T and 4x 2.5GbE ports (preinstalled dual-port 10GbE NIC), and the system supports up to three PCIe cards (one preinstalled 2-port 10GbE) including optional QXP-T32P Thunderbolt 3 expansion cards to enable up to four Thunderbolt 3 ports. Ideal for collaborative 4K workflows, VM hosts and enterprise-grade file services. |
| File_System | 128-bit ZFS (QuTS hero) |
| Form_Factor | Tower / Desktop |
| Cooling_Fans | System: 3 x 80mm; CPU: 2 x 97mm |
| Flash_Memory | 5 GB (dual-boot OS protection) |
| Memory_Slots | 4 x Long-DIMM DDR4 (UDIMM) |
| Power_Supply | 550W PSU, 100–240V |
| Hot_Swappable | 3.5-inch and 2.5-inch drive trays supported (M.2 SSDs not hot-swappable) |
| Product Title | QNAP TVS-h1288X-W1250-16G 12-Bay QuTS hero NAS (Intel Xeon W-1250, 16GB ECC) |
| Number_of_Bays | 12 |
| Weight_Net_lbs | 29.3 |
| CPU_Architecture | 64-bit x86 |
| Operating_System | QuTS hero (ZFS-based); QTS supported (versions listed: QuTS hero h5.2.8 / QTS 5.2.8) |
| Weight_Gross_lbs | 32.41 |
| CPU_Cores_Threads | 6 cores / 12 threads |
| Encryption_Engine | AES-NI |
| High_Availability | Supports HA cluster (active/passive) with two TVS-h1288X units |
| Performance_Notes | Tested_Configuration_Notes: Performance figures from QNAP labs test configuration (8 x Seagate ST6000VN0033 6TB HDD RAID 5 + 2 x Samsung 960 PRO 2TB SSD cache) Windows_Random_File_Transfer_4x10GbE_4K: { "Upload_IOPS": 187701, "Download_IOPS": 387204 } Windows_Sequential_File_Transfer_4x10GbE_512K: { "Upload_MBps": 3651, "Download_MBps": 4646 } |
| Power_Consumption | Disk_Standby_Mode_W: 85.216 Operating_Typical_W: 97.492 |
| Relative_Humidity | 5-95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| SSD_Cache_Support | Yes (M.2 NVMe + dedicated 2.5-inch SSD bays for cache) |
| Network_Interfaces | 10GbE: 2 x 10GBASE-T (preinstalled dual-port 10GbE) Other: Supports Port Trunking and failover 2.5GbE: 4 x 2.5GbE (2.5G/1G/100M) |
| Drive_Compatibility | 3.5-inch SATA HDD 2.5-inch SATA HDD 2.5-inch SATA SSD |
| Integrated_Graphics | Intel UHD Graphics P630 |
| Storage_Temperature | -20 to 70 °C (-4 to 158 °F) |
| Thunderbolt_Support | Optional via QXP-T32P Thunderbolt 3 PCIe expansion cards (supports installing two QXP-T32P cards to provide up to 4 Thunderbolt 3 ports) |
| Included_Accessories | Ethernet cable x1 (10GBASE-T cable noted on some listings) Power cord x1 Flat head screw x24 (for 3.5" HDD) Flat head screw x24 (for 2.5" HDD) M.2 SSD heatsink x2 Drive tray keys x2 Quick Installation Guide (QIG) |
| Graphics_Card_Support | Supports GPUs up to 266 x 137 x 45 mm; PSU provides an 8-pin (6+2) and a 6-pin power connector for GPU |
| Operating_Temperature | 0 to 40 °C (32 to 104 °F) |
| System_Memory_Maximum | 128 GB (4 x 32 GB) |
| Dimensions_HxWxD_inches | 8.87 x 14.56 x 12.59 |
| System_Memory_Installed | 16 GB ECC UDIMM DDR4 |
| Virtualization_Certifications | VMware Ready Microsoft Hyper-V Citrix Veeam Ready |
| Optional_Accessories_Mentioned | QXP-T32P Thunderbolt 3 expansion card QM2 expansion cards QXG/QNA network adapters QNAP 10GbE switches RM-IR004 remote control |
| Data_Reduction_and_Snapshot_Features | Inline data deduplication Compression Compaction Near-limitless snapshots Real-time SnapSync Snapshot Replica |
