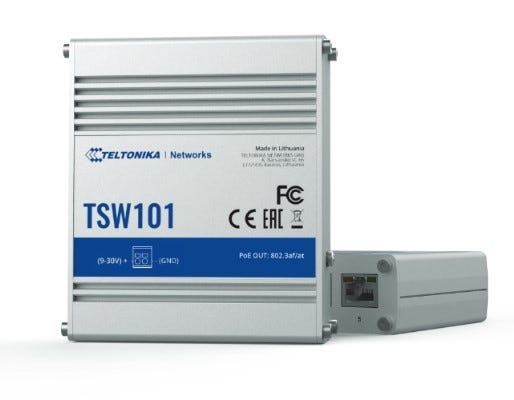

    main product photo

    Teltonika | TT.TSW101| Automotive Ethernet Switch, 4+1 port gigabit unmanaged POE Switch, 802.3af and at compliant, 60W power budget or 15W per port, 24V DC in, for solar and automotive applications, No PSU

    $183.00
    SKU:391630
    MPN:TT.TSW101 Link
    Manufacturer:https://teltonika-networks.com/
    Brand: Teltonika
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Teltonika | TSW101 | Automotive Ethernet Switch, 4+1 port gigabit unmanaged POE Switch, 802.3af and at compliant, 60W power budget or 15W per port, 24V DC in, for solar and automotive applications, No PSU

    Automotive PoE+ Switch


    The TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. With a wide range of supported power supply voltages (9-30 VDC), and its compact size it can slot into many automotive applications.



    Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. While also providing 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions. Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously

    FEATURES

    • Ethernet 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    • PoE ports Port 1- 4
    • PoE standards 802.3af and 802.3at
    • PoE Max Power per Port (at PSE) 30 W
    • Total PoE Power Budget (at PSE) 60 W
    • Maximum Ethernet cable length 100 m

    SPECIFICATIONS

    • Bandwidth (Non-blocking) 10 Gbps
    • Packet buffer 128 KB
    • MAC address table size 2K entries
    • Jumbo frame support 9216 bytes
    • Connector 2-pin industrial DC power socket
    • Input voltage range 9-30 VDC
    • Input voltage range for PoE 9-30 VDC
    • Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
    • Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
    • Status LED’s 1 x Power LED, 10 x LAN status LED’s
    • Power 1 x 2-pin industrial DC power socket
    • Ground 1 x Grounding screw
    • Casing material Aluminum housing
    • Dimensions (W x H x D) 115 x 32 x 95 mm
    • Weight 354 g
    • Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
    • Operating temperature -40 °C to +75 °C
    • Operating humidity 10 % to 90 % non-condensing
    • Ingress Protection Rating IP30
    • Regulatory CE, REACH, RoHS, WEEE, CE, UKCA, FCC, IC, CB, RCM and E-Mark

    WHAT IS IN THE BOX

    • TSW100
    • 65 W PSU
    • QSG (Quick Start Guide)
    • Packaging box

    WARRANTY

    2-years limited warranty

    Manufacturer Part# TSW101
    Series Automotive Ethernet Switch
    Form Factor Desktop/ Din-Rail Mount Option
    PoE Yes PoE
    SFP No SFP
    Number of Ports 5
    Predominant Port Type Gigabit Copper
    Colour Grey
    Warranty 2 Years
