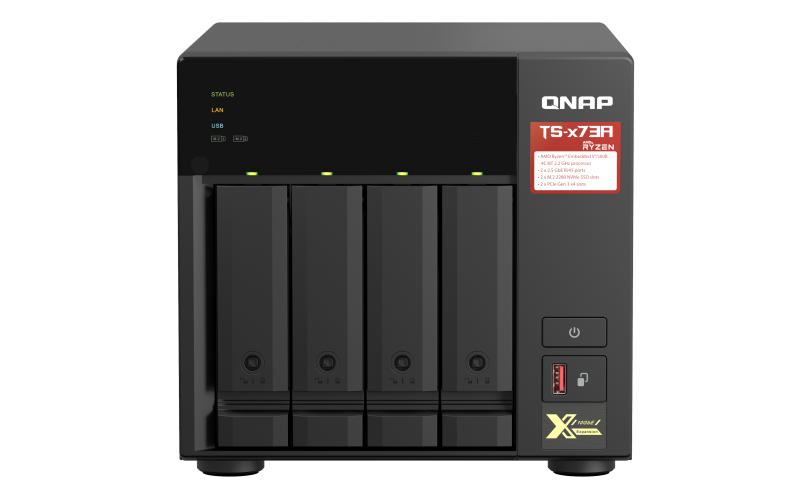

QNAP TS-473A-8G 4-Bay NAS, AMD V1500B quad-core 2.2 GHz processor, 8GB DDR4 RAM (max 64GB),

4x 2.5"/3.5" + 2x M.2 2280 PCIe Gen3 x1 slots, 2y wty
Special Price $1,222.00 Regular Price $1,405.00
SKU:367817
MPN:TS-473A-8G Link
Manufacturer:https://www.qnap.com
Brand: Qnap
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

TS-473A-8G


  • Download Datasheet
  • Download Datasheet
  • Download Datasheet
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SO-DIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
Support ECC memory
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps
IR Sensor  (QNAP RM-IR004)
HDMI Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 199.3 × 280.8 mm
Weight (Net) 5.03 kg
Weight (Gross) 6.04 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
