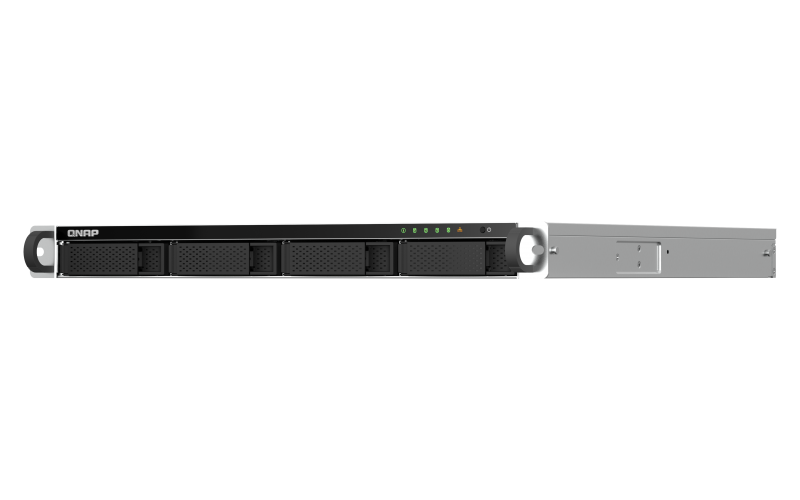

Qnap Ts-464U-Rp-8G,1U 4-Bay Rackmount Nas, Intel® Celeron® N5105/N5095 Quad-core, 8GB RAM Onboard (not Expandable), 4 X 3.5"/2.5" Sata 6Gb/ 3 Yr Wty (No Rail) TS-464U-RP-8G
$2,614.00
| SKU: | 387788 |
|---|---|
| MPN: | TS-464U-RP-8G Link |
| Manufacturer: | https://www.qnap.com |
| Brand: | Qnap |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
QNAP TS-464U-RP-8G,1U 4-Bay rackmount NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB RAM onboard (not expandable), 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 1 x PCIe Gen3 x2 slot, 2 x 2.5GbE, 1 x HDMI 1.4b, 2 x USB 3.2 Gen2 Type-A+ 2 x USB 2.0, 2 x 250W redundant PSU
Specifications
▼
| MPN | TS-464U-RP-8G |
|---|---|
| SKU | TS-464U-RP-8G |
| UPC | 885022024551 |
| ASIN | B0B998KMYM |
| HDMI | 1 x HDMI (4K output) |
| Brand | QNAP |
| Model | TS-464U-RP-8G |
| Power | Input Voltage: 100 - 240 V Power Supply Wattage (each): 250 W Number of Power Supplies Installed: 2 |
| Weight | 14.52 pounds |
| Category | Storage |
| Features | Port trunking (link aggregation) up to 5 Gbps Snapshots for data protection SSD caching Qtier auto-tiering License-free virtualization/container apps PCIe-based expandability (10GbE/QM2/Edge TPU) Intel OpenVINO / AI acceleration support via optional modules |
| Material | Metal |
| Warranty | 3-year limited warranty |
| Processor | Intel Celeron N5105 / N5095 (quad-core, burst up to 2.9 GHz) |
| Dimensions | Depth: 18.9 inches Width: 16.9 inches Height: 1.7 inches |
| Drive Bays | 4 x 3.5"/2.5" SATA III bays |
| Encryption | Integrated Intel AES-NI hardware acceleration; supports AES 256-bit encryption |
| Model Line | TS-464U-RP |
| Description | The QNAP TS-464U-RP-8G is a 1U, 4-bay rackmount NAS engineered for business storage and multimedia/virtualization use. Powered by an Intel Celeron N5105/N5095 quad-core processor (burst up to 2.9 GHz) with 8 GB DDR4 onboard (expandable to 16 GB) and 4 GB flash, it delivers high-throughput storage via dual 2.5GbE RJ45 ports (port trunking up to 5 Gbps) and SATA III (6 Gb/s) drives. The system includes a PCIe Gen3 x2 slot for expansion (10GbE/5GbE, QM2 M.2 SSD caching, USB 3.2 Gen2 card, or Edge TPU), a single 4K-capable HDMI output, hardware-accelerated Intel AES-NI/AES 256-bit encryption, and features QTS 5.x with snapshots, SSD caching, Qtier auto-tiering and license-free virtualization/container support. Redundant 250W power supplies, RAID (0,1,5,6,10) and JBOD support, and comprehensive connectivity options make it suitable for business-critical storage and collaborative workflows. (Diskless enclosure.) |
| Form Factor | 1U rack-mountable |
| Rack Height | 1U |
| Manufacturer | QNAP |
| Sub-Category | Network Attached Storage (NAS) |
| Product Title | QNAP TS-464U-RP-8G 1U 4-Bay Rackmount NAS - Intel Celeron N5105/N5095, 8GB DDR4, Dual 2.5GbE (Diskless) |
| TAA Compliant | Yes |
| USB 2.0 Ports | 2 |
| Expansion Slot | 1 x PCIe Gen3 x2 (for 10GbE/5GbE/2.5GbE cards, QM2, USB 3.2 Gen2 card, Edge TPU, etc.) |
| Maximum Memory | 16 GB |
| RAID Supported | JBOD 0 1 5 6 10 |
| Drive Interface | Serial ATA (SATA III, 6 Gb/s) |
| Processor Cores | 4 |
| Standard Memory | 8 GB DDR4 (onboard) |
| Operating System | QTS 5.x (reported QTS 5.0.1) |
| Country of Origin | Taiwan |
| Memory Technology | DDR4 SDRAM |
| USB Ports (Total) | 4 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| USB 3.2 Gen 2 Ports | 2 |
| Included Accessories | TS-464U-RP-8G unit 1 x Ethernet cable 2 x power cords 48 x flat head screws (for 3.5" HDD) 36 x flat head screws (for 2.5" HDD) 2 x hangers |
| Network Connectivity | 2 x 2.5GbE RJ45 (2.5G/1G/100M) with Port Trunking (up to 5 Gbps) |
| Flash Memory Capacity | 4 GB |
| Number of Network Ports | 2 |
| Manufacturer Part Number | TS-464U-RP-8G-US |
| Supported Drive Count (HDD) | 4 |
| Supported Drive Count (SSD) | 4 |
| Number of USB Ports Reported | 4 |
| Total Number of Expansion Slots | 1 |
| Number of USB 2.0 Ports Reported | 2 |
| Number of Power Supplies Reported | 2 |
| Number of USB 3.2 Gen 2 Ports Reported | 2 |
| Number of Hard Drives Installed (shipped) | 0 |
Vendor Info
▼
QNAP TS-464U-RP-8G,1U 4-Bay rackmount NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB RAM onboard (not expandable), 4 x 3.5"/2.5" SATA 6Gb/ 3 Yr WTY (No Rail)
