    • Qnap Ts-432Pxu-Rp-2G 4-Bay 1U Rackmount Nas Cortex-A57 Quad-core 1.7GHz Cpu, 2GB DDR4 Udimm RAM (max 16GB), Sata 6Gb/s, Redundant PSU,3y Wty (no Rail Incl) TS-432PXU-RP-2G

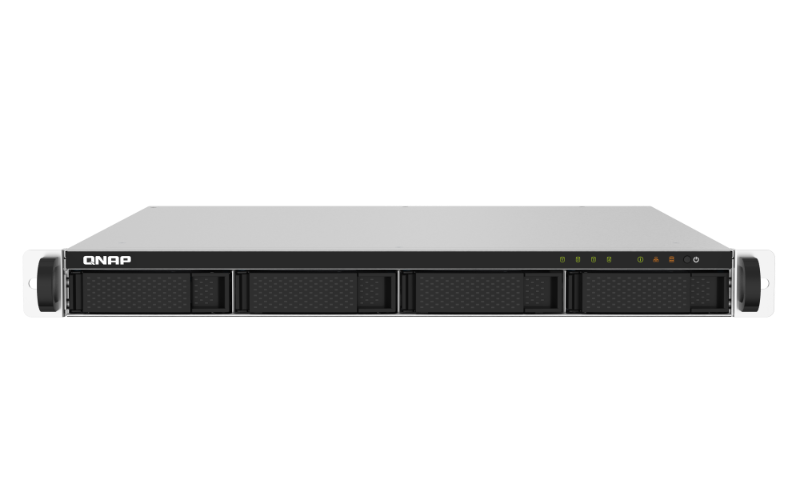

    main product photo

    Qnap Ts-432Pxu-Rp-2G 4-Bay 1U Rackmount Nas Cortex-A57 Quad-core 1.7GHz Cpu, 2GB DDR4 Udimm RAM (max 16GB), Sata 6Gb/s, Redundant PSU,3y Wty (no Rail Incl) TS-432PXU-RP-2G

    $2,233.00
    SKU:395375
    MPN:TS-432PXU-RP-2G Link
    Manufacturer:https://www.qnap.com
    Brand: Qnap
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    QNAP TS-432PXU-RP-2G 4-Bay 1U rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 2GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s, redundant PSU,3y wty (no RAIL incl)
    SKUTS-432PXU-RP-2G
    BrandQNAP
    ModelTS-432PXU-RP-2G
    Cooling2 x 40 mm fans
    PCIe Slot1 x PCIe Gen2 x2 (for network card, SSD cache, wireless card)
    ProcessorAnnapurnaLabs Alpine AL324
    USB Ports4 x USB 3.2 Gen 1 Type-A
    Drive Bays4 bays (3.5" / 2.5" SATA)
    DescriptionThe QNAP TS-432PXU-RP-2G is a 1U, 4-bay rackmount NAS for SMB environments that combines high network bandwidth with flexible expandability. Powered by an AnnapurnaLabs Alpine AL324 quad-core 1.7 GHz ARM processor and 2 GB DDR4 UDIMM (expandable to 16 GB), it features 2 x 10GbE SFP+ and 2 x 2.5GbE RJ-45 ports, a PCIe Gen2 x2 slot for network/SSD cache/expansion cards, and dual 250W redundant PSUs for uninterrupted operation. QTS provides file backup and synchronization, snapshot protection, Google Workspace and Microsoft 365 backup support, cloud gateway capabilities for hybrid cloud deployments, and enterprise-class storage services. Diskless configuration (HDDs not included).
    Form Factor1U Rackmount
    Memory Slots1 x UDIMM DDR4
    Power SupplyDual redundant 250W PSUs (100-240V)
    Weight (Net)17.9 lb
    Product TitleQNAP TS-432PXU-RP-2G 1U 4-Bay Rackmount NAS - Dual 10GbE SFP+ & Dual 2.5GbE, Redundant PSU
    Maximum Memory16 GB (1 x 16 GB)
    Drive InterfaceSATA 6Gb/s
    Additional NotesPCIe Gen2 x2 bandwidth may limit full performance of additional 10GbE cards; M.2 SSD not natively supported (M.2 via PCIe adapter).
    LEDs and ButtonsHDD 1-4, Status, LAN, Storage expansion LEDs; Power and Reset buttons
    Operating SystemQNAP QTS (versions reported: QTS 5.2.8 and QTS 4.4.3)
    Processor Details64-bit ARM Cortex-A57, quad-core, 1.7 GHz
    Relative Humidity5 - 95% RH non-condensing (wet bulb: 27 °C)
    Dimensions (HxWxD)1.7 × 16.93 × 18.86 inches (manufacturer spec; excludes ear hook and PSU protrusion)
    Disk ConfigurationDiskless (HDDs not included) / supports RAID 0, 1, 5, 6, 10, JBOD
    Memory (Installed)2 GB DDR4 UDIMM
    Network Interfaces2 x 10 GbE SFP+ 2 x 2.5 GbE RJ-45
    Drive Compatibility3.5-inch SATA HDDs; 2.5-inch SATA HDDs/SSDs
    Storage Temperature-20 - 70 °C (-4 - 158 °F)
    Supported ProtocolsSMB/CIFS NFS v3/v4 AFP FTP/FTPS SFTP iSCSI HTTP/HTTPS WebDAV SNMP DHCP DDNS IPsec IPv4/IPv6
    Warranty (Standard)3 years (reported)
    Operating Temperature0 - 40 °C (32 - 104 °F)
    RAID Levels SupportedJBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
    Supported File SystemsExternal: [ "EXT3", "EXT4", "NTFS", "FAT32", "HFS+", "exFAT (optional driver license required on ARM models)" ] Internal: EXT4
    Maximum Storage CapacityMaximum Pool Size: 308 TB Maximum Volume Size: 250 TB (note: creating a 250 TB volume may require at least 4 GB RAM) Max Raw Capacity (reported): Up to 88 TB (depends on drive sizes)
    Weight (Gross / Shipping)≈24.2–24.52 lb (reported values vary by source)
    Power Consumption (Typical)53.343 W (operating, tested with drives fully populated)
    Included Accessories / Package ContentsNAS unit (TS-432PXU-RP-2G) 1 x Ethernet cable 2 x Power cords 16 x Flat head screws for 3.5" HDDs 12 x Flat head screws for 2.5" HDDs Quick Installation Guide
    QNAP TS-432PXU-RP-2G 4-Bay 1U rackmount NAS Cortex-A57 quad-core 1.7GHz CPU, 2GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s, redundant PSU,3y wty (no RAIL incl)
