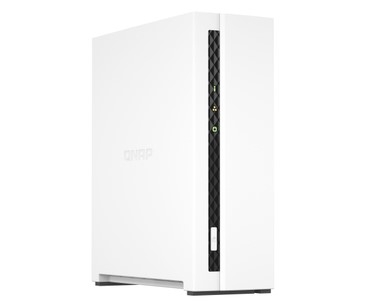

    main product photo

    Qnap Ts-133, 1 Bay Arm 4C 1.8GHz ; 1 X Sata 6Gb/s 3.5"/2.5"; 2GB RAM On-board; 1 X GbE ; 1 X USB3.2 Gen1 And 1 X USB2.0, 2 Years Rtb Wty TS-133

    $329.00
    SKU:389983
    MPN:TS-133 Link
    Manufacturer:https://www.qnap.com
    Brand: Qnap
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    QNAP TS-133, 1 bay ARM 4C 1.8GHz ; 1 x SATA 6Gb/s 3.5"/2.5"; 2GB RAM on-board; 1 x GbE ; 1 x USB3.2 Gen1 and 1 x USB2.0, 2 Years RTB WTY
    CPUARM Cortex-A55 quad-core 1.8 GHz
    NPUIntegrated Neural-network Processing Unit (accelerates QuMagie face recognition and image classification)
    SKUTS-133
    BrandQNAP
    ModelTS-133
    PowerAdapter: 36W adapter (12V DC), 100-240VAC Power Consumption (Disk Standby): 2.74 W Power Consumption (Operating, typical): 7.32 W (tested with drives fully populated)
    WeightNet: 2.14 lbs Gross / Shipping: ~2.8 lbs
    ButtonsPower Reset
    Cooling1 x 50 mm fan (12V DC)
    NetworkEthernet: 1 x Gigabit Ethernet (RJ45) IP Protocols: [ "IPv4", "IPv6" ]
    DisklessYes (no HDD/SSD included)
    WarrantyStandard 2-year manufacturer warranty (warranty extension options reported up to 5 years)
    USB Ports1 x USB 3.2 Gen 1 1 x USB 2.0
    Drive Bays1 x 3.5-inch (supports 3.5" SATA HDD and 2.5" SATA SSD)
    EncryptionAES-NI 256-bit hardware-accelerated encryption for volumes and shared folders (AES 256-bit volume encryption reported validated by FIPS 140-2 CAVP)
    DescriptionCompact 1-bay desktop NAS designed for home and small office use. The QNAP TS-133 is powered by an ARM Cortex-A55 quad-core 1.8 GHz processor with 2 GB DDR4 on-board memory and runs QTS 5 (reported as QTS 5.2.8). It supports one 3.5" SATA 6 Gb/s drive (also compatible with 2.5" SATA SSDs), includes 1 x Gigabit Ethernet port, 1 x USB 3.2 Gen 1 port and 1 x USB 2.0 port. The TS-133 provides AES-NI 256-bit hardware-accelerated encryption, an integrated NPU to accelerate QuMagie photo organization/face recognition, low power consumption, and a quiet cooling fan. The unit ships diskless and includes an AC adapter, power cord, Ethernet cable and drive mounting screws.
    Form Factor1-Bay desktop / tower
    Memory TypeDDR4 SDRAM
    Flash Memory4 GB (dual-boot OS protection)
    Memory Notes2 GB on-board (non-expandable). Some RAM reserved for shared graphics memory.
    Product TitleQNAP TS-133 1-Bay Desktop NAS — ARM Cortex-A55 1.8GHz, 2GB DDR4, Gigabit Ethernet (Diskless)
    LED IndicatorsSystem Status LAN HDD
    Region / NotesMultiple regional listings reference model suffix TS-133-US. Product is commonly sold diskless. Some marketplace listings include inconsistent color and weight/shipping values; values in this record are consolidated from manufacturer and marketplace sources.
    CPU Architecture64-bit ARM
    Operating SystemQTS 5 (reported as QTS 5.2.8)
    Dimensions (HxWxD)7.32 × 2.6 × 6.2 inches (dimensions reported do not include foot pad; foot pad may add up to 1.18 inches)
    Memory (Installed)2 GB (on-board, non-expandable)
    Software & FeaturesQNAP QTS 5 platform QuMagie (photo organization; NPU-accelerated face recognition) Storage snapshot technology NetBak Replicator (Windows backup) Time Machine support (macOS) MyQNAPCloud remote access Plex Media Server available from App Center Hybrid Backup Sync, Qsync, Container Station (feature availability may depend on RAM)
    Included AccessoriesAC adapter (36W, 12V DC, 100-240VAC) Power cord Ethernet cable Flat head screws for 3.5" HDD x6 Flat head screws for 2.5" HDD x2 Quick Installation Guide
    Operating EnvironmentRelative Humidity: 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) Storage Temperature: -20 - 70 °C (-4 - 158 °F) Operating Temperature: 0 - 40 °C (32 - 104 °F)
    Product Type / CategoryNetwork Attached Storage (NAS)
    System Limits & ServicesSNMP: [ "v2", "v3" ] Local User Accounts: 4096 Local Group Accounts: 512 Min Snapshot Interval: 5 minutes Maximum FTP Connections: 1024 Domain User/Group Accounts: 200000
    Supported Drive InterfaceSATA III (6 Gb/s) / SATA I/II compatibility noted
    Model Number / Part NumbersTS-133 TS-133-US
    Security & Network ServicesNetwork access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP) 2-step verification Firewall, Allow/Deny lists, Service binding (features reported)
    Hardware-accelerated TranscodingNot reported / N/A for embedded graphics
    Supported Client OS and BrowsersBrowsers: [ "Latest Apple Safari", "Latest Google Chrome", "Latest Microsoft Edge", "Latest Mozilla Firefox" ] Client Operating Systems: [ "Windows (7, 8, 10, 11, and Server editions)", "macOS (Time Machine supported)", "Linux (various distributions)", "UNIX (select platforms)" ]
    Bundled / Optional Accessories (reported)Bundled: [ "Ethernet cable", "AC adapter", "Power cord", "Drive screws", "Quick Installation Guide" ] Optional: [ "FAN-5CM-T01", "PWR-ADAPTER-48W-A01", "SCR-HDD25A-96", "SCR-HDD35B-96" ]
    Maximum Supported Storage (system-reported limits)Maximum LUN Size: 250 TB (note: requires ≥4 GB RAM) Maximum Pool Size: 308 TB Maximum Volume Size: 250 TB (note: requires ≥4 GB RAM) Maximum Number of Volumes: 128 Maximum Shared Folder Size: 250 TB Maximum Number of Targets/LUNs: 128 Maximum Number of Storage Pools: 128 Maximum Number of Shared Folders: 512
    QNAP TS-133, 1 bay ARM 4C 1.8GHz ; 1 x SATA 6Gb/s 3.5"/2.5"; 2GB RAM on-board; 1 x GbE ; 1 x USB3.2 Gen1 and 1 x USB2.0, 2 Years RTB WTY
