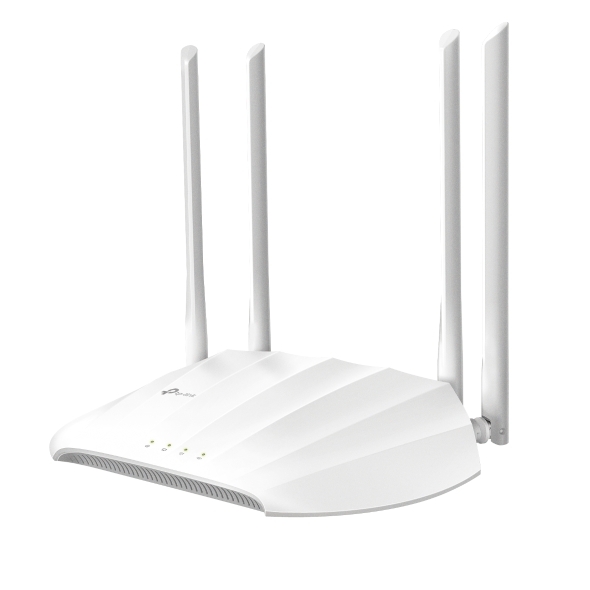

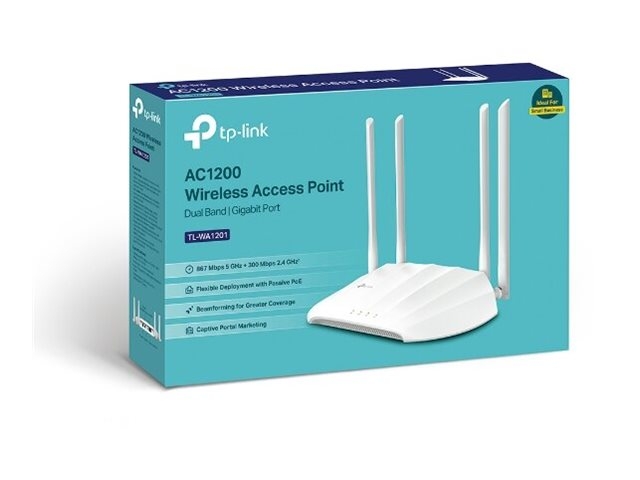

    Tp-Link AC1200 Wireless Access Point (Tl-Wa1201)

    $83.00
    SKU:297243
    MPN:TL-WA1201 Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    • AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
    • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
    • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
    • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
    • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
    • Captive Portal – Offers a designed portal page for heightened security and marketing.
    New Page 1
    HARDWARE FEATURES
    Interface 1× 10/100/1000 Mbps Ethernet Port
    (Supports Passive PoE)
    Button Power On/Off Button, WPS Button, Reset Button
    External Power Supply 12V/1.5A
    Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
    Dimensions ( W x D x H ) 8.9 × 5.7 × 1.5 in
    (225×145.5×37 mm)
    Antenna Type 4 Fixed High Performance Antennas
    WIRELESS FEATURES
    Frequency 2.4 GHz and 5 GHz
    Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
    Reception Sensitivity 5 GHz:
    11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
    11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
    11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
    11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

    2.4 GHz:
    11g 54Mbps: -78 dBm
    11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
    11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
    Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
    FCC: <30dBm(2.4GHz&5GHz)
    Wireless Modes Access Point, Range Extender, Client, Multi-SSID
    Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
    Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
    DHCP Server, DHCP Client List
    Quality of Service WMM
    Advanced Functions Captive Portal
    Access Point: Wireless AC1200 Dual-Band Wi-Fi Multiple Modes (Access Point, Range Extender, Multi-SSID, Client modes)
