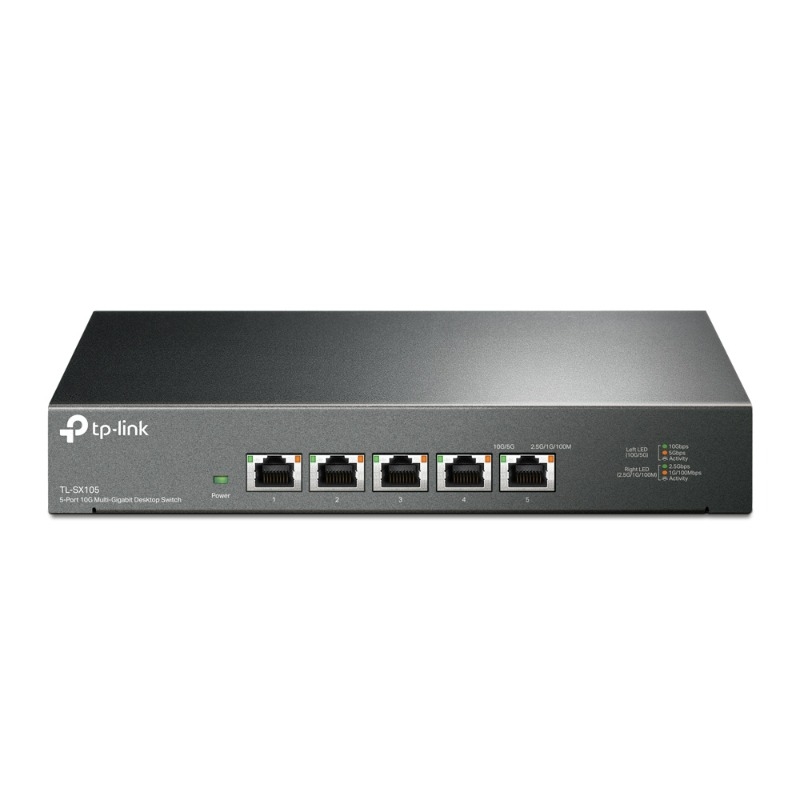

TP-LINK TL-SX105 5-PORT 10G DESKTOP SWITCH, 10G(5),5YR
$565.00
SKU: | 381762 |
---|---|
MPN: | TL-SX105 Link |
Manufacturer: | https://www.tp-link.com/ |
Brand: | Tplink |
Warranty: | Standard Manufacturer's Warranty |
Availability: | Preorder 2-3 weeks |
Fright Estimate |
Description
▼
Specifications
▼
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
Interface | 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
Max Power Consumption | 21.4 W |
PERFORMANCE | |
---|---|
Switching Capacity | 100 Gbps |
Packet Forwarding Rate | 74.4 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 2 Mb |
Jumbo Frame | 10 KB |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
Transfer Method | Store and Forward |
OTHERS | |
---|---|
Certification | CE, FCC ,RoHS |
Package Contents | • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105 • Power Cord • Installation Guide • Rubber Feet |
Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
