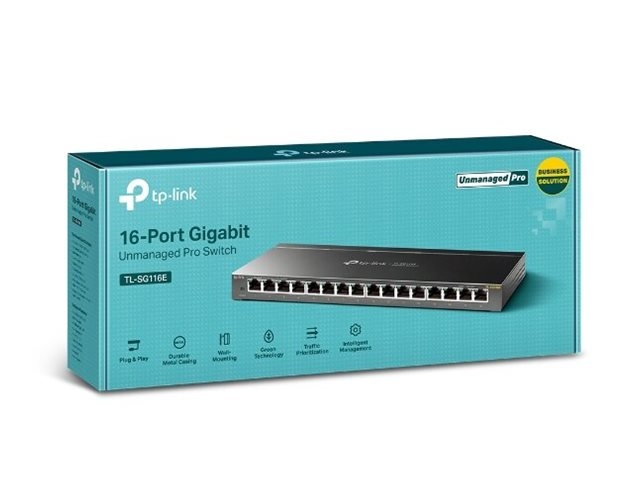

    Tp-link 16 Port Unmanaged Pro Desktop Switch Gbe(16) Steel Casing Black 3yr Wty Tl-sg116e(un)

    Special Price $93.00 Regular Price $107.00
    SKU:266171
    MPN:TL-SG116E Link
    Manufacturer:https://www.tp-link.com/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interface 16 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Power Supply External Power Adapter(Output: 9VDC/0.6A)
    Power Consumption Maximum: 9.3 W
    Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in.
    (286*111.7*25.4 mm)
    PERFORMANCE
    Switching Capacity 32Gbps
    Packet Forwarding Rate 23.81Mpps
    MAC Address Table 8K
    Packet Buffer Memory 4.1Mb
    Jumbo Frame 9KB
    SOFTWARE FEATURES
    Quality of Service Support Port-based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
    L2 Features IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
    Transmission Method Store-And-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents TL-SG116E
    Power Cord
    Installation Guide
    Rubber Feet
    System Requirements Microsoft® Windows® for running Utility
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
