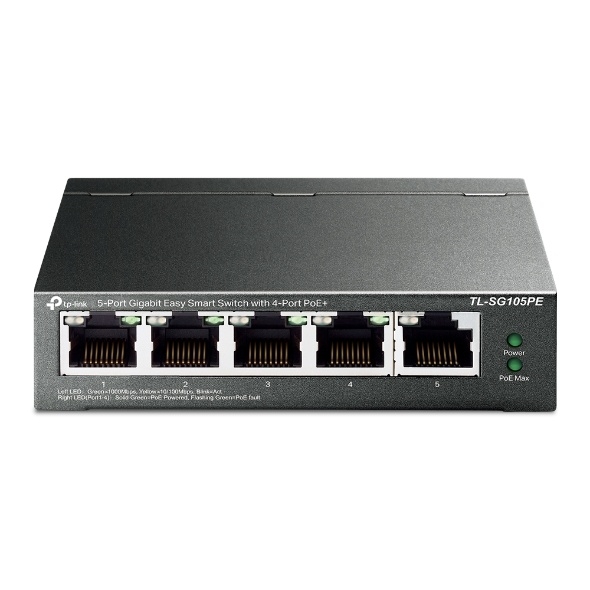

    Tp-Link 5-Port Easy Smart Gigabit Switch, POE+(4), 65W, Metal Case, 5YR TL-SG105PE

    $86.00
    SKU:301131
    MPN:TL-SG105PE Link
    Manufacturer:https://www.tplink.com
    Brand: Tplink
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Five 10/100/1000Mbps RJ45 ports
    Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
    Supports PoE power up to 65 W for all PoE ports*
    Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
    Simple network set-up on top of plug-and-play connectivity
    Web-based user interface and Easy Smart Configuration Utility simplify configuration
    Fanless design lowers energy consumption and eliminates operating noise
    New Page 1
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
    Interface Five 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX

    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity Fanless
    Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
    PoE Ports (RJ45) Standard: 802.3 af/at compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 65 W

    Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
    Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
    75.16 W (220V/50Hz with 65 W PD connected)
    Max Heat Dissipation 15.41 BTU/h (with no PD connected)
    256.30 BTU/h (with 65 W PD connected)
    PERFORMANCE
    Switching Capacity 10 Gbps
    Packet Forwarding Rate 7.44 Mpps
    MAC Address Table 2 K
    Packet Buffer Memory 1.5 Mb
    Jumbo Frame 16 KB
    SOFTWARE FEATURES
    Quality of Service Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control

    L2 Features IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    PoE Auto Recovery
    Extend Mode
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN

    Management Web-based GUI
    Easy Smart Configuration Utility

    Transmission Method Store-And-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents TL-SG105PE
    Power Adapter
    Installation Guide
    Rubber Feet

    System Requirements Microsoft® Windows® for running Utility
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~95%RH non-condensing
    Five 10/100/1000Mbps RJ45 ports
