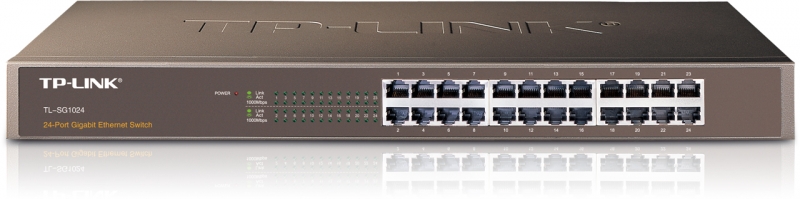

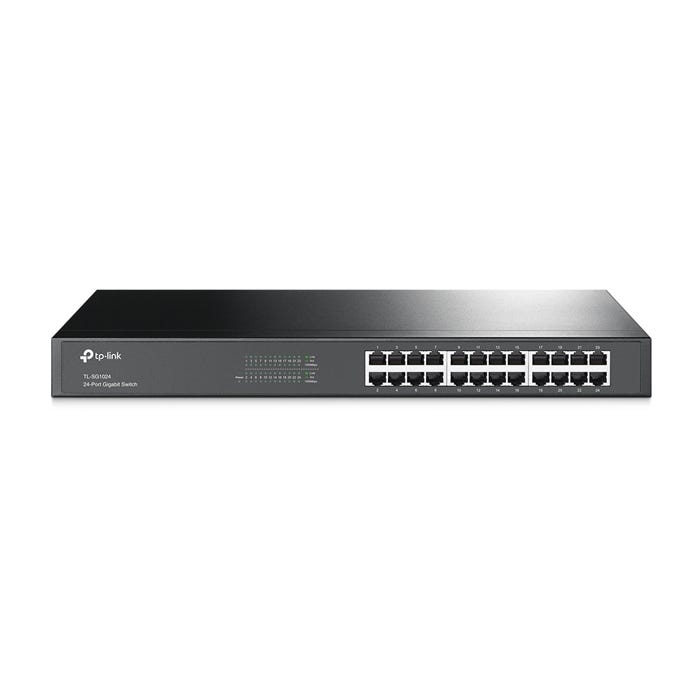

    main product photo

    Tp-link Tl-sg1024: 24-port Unmanaged Gigabit Ethernet Switch Tl-sg1024

    $224.00
    SKU:238577
    MPN:006.008.0062 Link
    Manufacturer:http://www.tp-link.com.au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    Featured with 24 10/100/1000Mbps ports, TL-SG1024 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

    The TL-SG1024 24-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.


    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

    You now have the choice to go green when upgrading to a gigabit network! This new product TL-SG1024 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.



    Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.



    Power Budget According to Cable Length
    Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters(32.8 or 164.0 feet) in length.

    The TL-SG1024 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
    • Innovative energy-efficient technology saves power consumption
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
    • 48Gbps Switching Capacity
    • Auto-MDI/MDIX eliminates the need for crossover cables
    • Supports MAC address auto-learning and auto-aging
    • Support the port N-Way Auto-Negotiation, Store and Forward.
    • Compact size design for desktops, Rackmountable
    • Plug and Play design simplifies installation
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
    Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 13.1W (220V/50Hz)
    Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
    PERFORMANCE
    Switching Capacity 48Gbps
    Packet Forwarding Rate 35.7Mpps
    MAC Address Table 8K
    Jumbo Frame 10KB
    QoS 802.1p/DSCP QoS*
    *Only for V11 and later version
    Green Technology Yes
    Transfer Method Store-and-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents 24-Port Gigabit Rackmount Switch
    Power Cord
    Installation Guide
    Rackmount Kits
    Rubber Feet
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
    Storage Temperature: -40℃~70℃ (-40℉~158℉);
    Operating Humidity: 10%~90% non-condensing;
    Storage Humidity: 5%~90% non-condensing
    TP-Link TL-SG1024: 24-Port Unmanaged Gigabit Ethernet Switch24 10/100/1000Mbps RJ45 portsInnovative energy-efficient technology saves power up to 40%Supports MAC address self-learning and auto MDI/MDIXStandard 19-inch rack-mountable steel caseWhat This Product Does The TL-SG1024 24-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network. Gigabit Switch Featured with 24 10/100/1000Mbps ports, TL-SG1024 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Superior Performance The TL-SG1024 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Go Green With Your EthernetYou now have the choice to go green when upgrading to a gigabit network! This new product TL-SG1024 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Power Budget According to Cable Length Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length.Ease of Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
