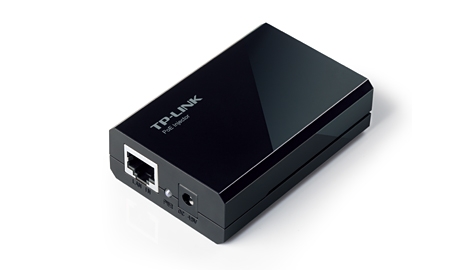

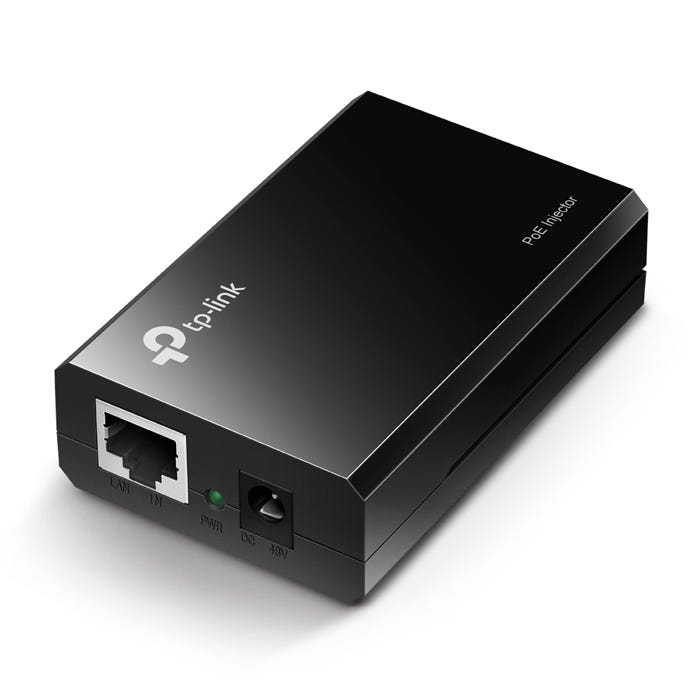

    main product photo

    Tp-link Power Over Ethernet Poe Injector: Tl-poe150s Tl-poe150s

    $40.00
    SKU:238580
    MPN:006.008.0091 Link
    Manufacturer:http://www.tp-link.com.au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    PoE InjectorTL-POE150S

    • IEEE 802.3af compliant
    • Auto-determine the necessary power requirements
    • Gigabit speed support
    • Plug-and-Play, requires no configuration

    What This Product Does

    The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    • IEEE 802.3af compliant
    • Delivers power up to 100 meters
    • Auto-determine the necessary power requirements
    • Gigabit speed support
    • Plug-and-Play, requires no configuration
    • External power adapter supply
    HARDWARE FEATURES
    Interface 2 10/100/1000Mbps RJ45 Port
    AUTO Negotiation/AUTO MDI/MDIX
    1 48VDC POWER INPUT PORT
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    100BASE-TX: UTP category 5, 5e cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
    Power Supply 15.4W (Max. 48VDC)
    LED Indicator PWR
    Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
    SOFTWARE FEATURES
    Basic Function Compatible With IEEE 802.3af Compliant PDs
    Delivers Power Up To 100 Meters
    Auto-Determine The Necessary Power Requirements
    　
    OTHERS
    Certification FCC, CE, RoHS
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    The TP-LINK Power Over Ethernet PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. > IEEE 802.3af compliant > Auto-determine the necessary power requirements > Gigabit speed support > Plug-and-Play, requires no configurationSpecificationsHardware FeaturesIInterface: 2 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX, 1 48VDC POWER INPUT PORTDimensions: 80.8x54x24 mmLED Indicator: PWRPower Supply: 15.4W (Max. 48VDC)Software FeaturesBasic Function: Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To 100 Metres, Auto-Determine The Necessary Power RequirementsOthersCertification: FCC, CE, RoHSSystem Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.Operating Temperature: 0℃ to 40℃Storage Temperature: -40℃ to 70℃Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensingOur Promise & Value Add > We ship 97% of orders same day
