Atdec Telehook Th-3270-ufm Th-3270-ufm

$602.00

SKU:	242943
MPN:	TH-3270-UFM Link
Manufacturer:	http://www.atdec.com/
Brand:	Atdec
Warranty:	Standard Manufacturer's Warranty
Availability:	Preorder 2-3 weeks
Fright Estimate

Description

▼

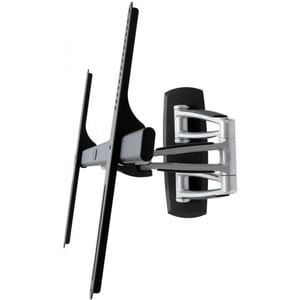

Telehook TH-3270-UFM

by Atdec

The TH-3270-UFM combines cutting edge, sleek design with the capacity to hold a display 65kg (143lbs) in weight out from the wall. Full motion capability comes from three pivot points that give you complete control over tilt, pan, swing, pull out and pivot. Such superior control with minimal effort is thanks to Telehook’s Smooth GlideTM technology and spring assisted tilting mechanisms. These innovative features support the full weight of your screen during adjustment, allowing one person to easily set the screen position for maximum viewing comfort. The die cast aluminum arm can extend out to 635mm (25”) from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled, with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode.

Specifications

▼

Basic
Brand Name:	Telehook
Device Supported:	Flat Panel Display
Maximum Load Capacity:	65 kg
Maximum Screen Size Supported:	177.8 cm (70")
Product Type:	Mounting Arm
VESA Mount Standard:	100 x 100
	200 x 100
	200 x 200
	200 x 300
	300 x 300
	400 x 300
	400 x 400
	600 x 400
	800 x 200
	800 x 400

General Information
Brand Name:	Telehook
Manufacturer Part Number:	TH-3270-UFM
Manufacturer Website Address:	http://www.atdec.com.au
Manufacturer:	Atdec Pty Ltd
Product Model:	TH-3270-UFM
Product Name:	3270 Wall/Full Motion
Product Type:	Mounting Arm

Miscellaneous
Additional Information:	Spring supported tilt adjustment -5°/+20° TV horizontal adjustment of -/+5° Maximum reach from wall 635mm Minimum distance from wall 174mm Smooth Glide technology for effortless articulation or movement Offers a full range of movement via three pivot points Designed for simple installation Quick release mechanism for fast TV attachment or removal Advanced internal cable management Theft resistant design
Assembly Required:	Yes
Compatibility:	LED LCD Plasma

Physical Characteristics
Colour:	Silver
Depth:	15.5 cm
Material:	Steel
VESA Mount Compatible:	Yes
VESA Mount Standard:	100 x 100
	200 x 100
	200 x 200
	200 x 300
	300 x 300
	400 x 300
	400 x 400
	600 x 400
	800 x 200
	800 x 400

Product Information
Device Supported:	Flat Panel Display
Features:	Articulating
	Cable Management
	Pan
	Quick Release Mechanism
	Theft Resistant
	Tilt
Maximum Adjustable Depth:	635 mm
Maximum Load Capacity:	65 kg
Maximum Screen Size Supported:	177.8 cm (70")
Minimum Screen Size Supported:	106.7 cm (42")
Number of Displays Supported:	1

Vendor Info

▼

Marketing Text	The TH-3270-UFM combines cutting edge, sleek design with the capacity to hold a display 65kg (143lbs) in weight out from the wall. Full motion capability comes from three pivot points that give you complete control over tilt, pan, swing, pull out and pivot. Such superior control with minimal effort is thanks to Telehook’s Smooth GlideTM technology and spring assisted tilting mechanisms. These innovative features support the full weight of your screen during adjustment, allowing one person to easily set the screen position for maximum viewing comfort. The die cast aluminum arm can extend out to 635mm (25”) from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled, with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode.
PI Date	October 2011
Brand Name	Atdec
Manufacturer Web Site	www.atdec.com.au
Product Type	Wall Mount
Display Size Supported	32 - 65inch
Weight Capacity	65Kg
Color	Black and Silver
Material	Aluminium/Steel
Warranty Information	10 year warranty if purchased after Jan 1, 2011
