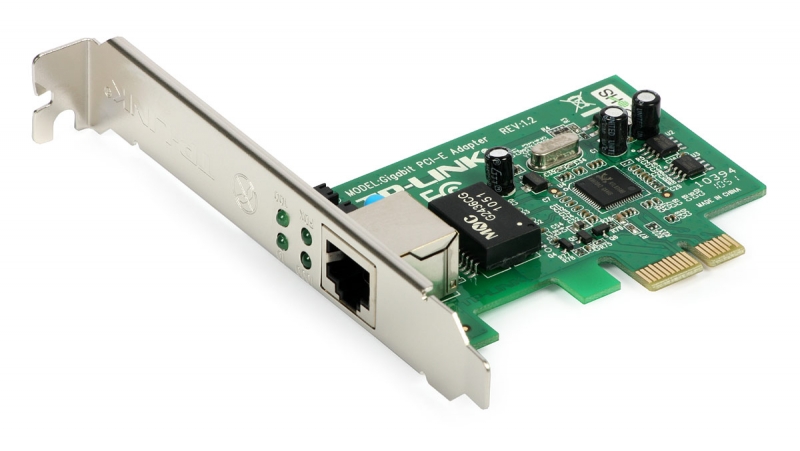

    main product photo

    Tp-link 32-bit Gigabit Pcie Network Lan Adapter, Realtek Rtl8168b Chipset Tg-3468

    $21.00
    SKU:240172
    MPN:TG-3468 Link
    Manufacturer:http://www.tp-link.com.au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    Gigabit PCI Express Network AdapterTG-3468

    • 10/100/1000Mbps PCIe Adapter
    • 32-bit PCIe interface, saving the finite chassis space
    • Wake-on-LAN, convenient to manage over LAN

    What This Product Does

    TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

    The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
    Interface 32-bit PCI Express
    1 10/100/1000Mbps RJ45 port
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000Base-T: UTP category 5, 5e cable (maximum 100m)
    Data Rates 10/100/1000Mbps for Half-Duplex mode
    20/200/2000Mbps for Full-Duplex mode
    LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
    Flow Control IEEE 802.3x Flow Control (Full-Duplex)
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents Gigabit PCI Express Network Adapter TG-3468
    Resource CD
    Quick Installation Guide
    System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
