SKU	TEG1016D
ASIN	B006KAP4EG
Brand	Tenda
Color	Brown / Curry (as listed)
Model	TEG1016D
Notes	Multiple vendor listings reference revisions v6 and v8.0. Some dimensional/shipping weights vary by source; listed values reflect those published in the provided product details.
Ports	16
Fanless	Yes (fanless design)
Category	Networking
Port Type	RJ45
Management	Unmanaged
UPC / GTIN	885397030126
Description	The Tenda TEG1016D is an unmanaged 16-port Gigabit Ethernet switch designed for small to medium business, surveillance and general networking use. It provides sixteen 10/100/1000 Mbps auto‑negotiation RJ45 ports with Auto MDI/MDIX, fanless full‑steel housing for quiet, reliable operation, and professional 6 kV lightning protection on ports and the power module. The switch supports line‑speed forwarding, large packet/cache capacity and jumbo frames for stable large-file transfers and continuous 24/7 connectivity. Desktop, wall or rack mounting options are supported and the package includes the switch and power cable/adapter and quick start guide.
Form Factor	Desktop; Rack-mountable; Wall-mountable
Item Weight	2.77 pounds (listed)
Power Input	100–240V AC, 50/60Hz (built-in power supply module listed)
Flow Control	IEEE 802.3X (flow control listed)
Manufacturer	Tenda
Sub-Category	Switches and Hubs

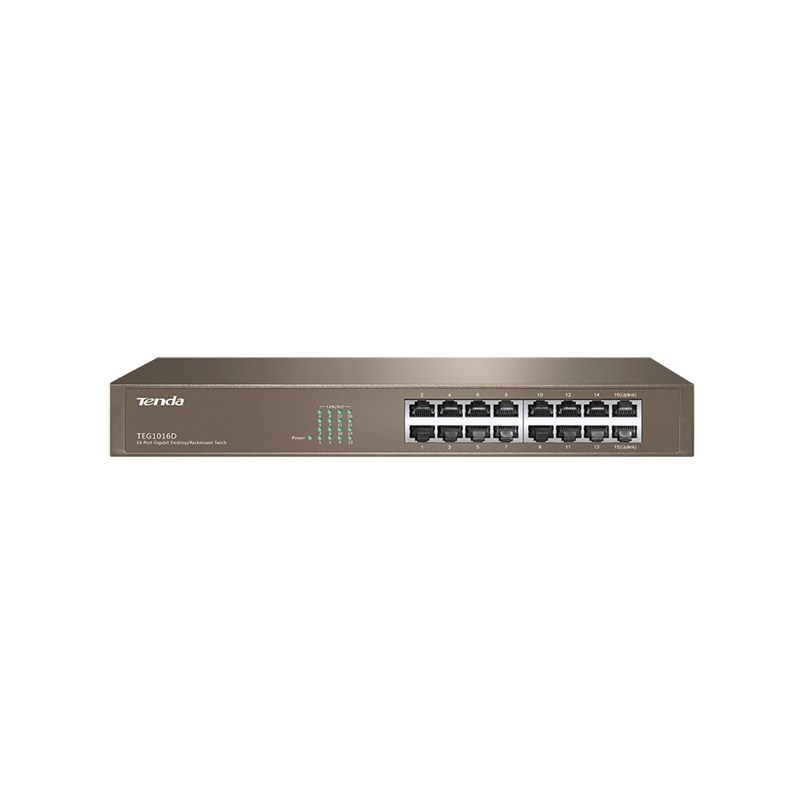

Product Title	Tenda TEG1016D 16-Port Gigabit Unmanaged Ethernet Switch (Metal, Fanless, Rack/Desk Mount)
Buffer / Cache	2M (listed)
Current Rating	0.5 A (listed)
Shipping Weight	4.75 pounds (listed)
Chassis Material	Full steel / metal housing (plated)
Mounting Options	Desktop, Wall, 19-inch Rack (mountable)
Port Configuration	16 x 10/100/1000 Mbps Auto‑negotiation RJ45 ports (Auto MDI/MDIX)
Jumbo Frame Support	Up to 10K bytes (listed)
Included Accessories	Power cord / power adapter Quick installation guide / user guide
Lightning Protection	6 kV protection on all ports and power supply (IV-class/common mode as listed)
Body Size (marketing)	13-inch body design (listed)
Features / Highlights	All‑Gigabit ports for high-speed, low-latency transfers Line‑speed forwarding on all ports Large cache for timely large-file transfer and stable video streaming Quiet operation due to fanless metal design and efficient heat dissipation Professional integrated lightning protection for ports and power
Max Power Consumption	12W (listed)
Port Speed (per port)	10/100/1000 Mbps
Dimensions (H x W x D)	1.73 x 11.57 x 7.04 inches (listed)
Full-Duplex (as listed)	Supports up to 2000 Mbps full‑duplex transmission rate (as listed)
MAC / Address Table Size	8,000 entries (listed)
Certifications / Standards	IEEE 802.3 / 802.3u / 802.3ab / 802.3x; CE, FCC, RoHS (listed)
Model Revisions / Variants	v6 v8.0
Switch Capacity / Backplane	32 Gbps (listed)
What's in the Box (as listed)	16-port Gigabit Ethernet switch Power cord / adapter Quick installation guide / user guide
Compatible Devices (examples listed)	Routers, mesh systems, PCs, game consoles, IP cameras, smart TVs, printers, other switches

Tenda TENDA (TEG1016D) 16-port Gigabit Ethernet Switch is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: TD82024. Order online for Australia-wide delivery with local support.
