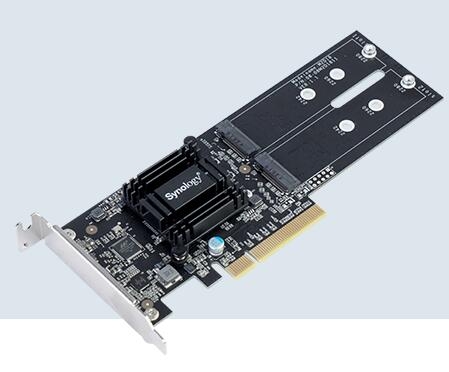

Synology M2D18 PCIe Adapter Card. M2D18
$206.00
| SKU: | 266361 |
|---|---|
| MPN: | M2D18 Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology PCIe Gen2 x8 adapter card for dual M.2 SSD slot.
Support form factor:
For both SATA & NVMe: Broadwell-DE :FS1018, DS3018xs.
Denverton: RS2818Rp+, RS2418+( RP+),DS2419+, DS1819+,DS1618+
SATA only :
Avoton: RS1218+. RS818+(RP+) , DS1517+.
SATA after DSM 6.2, NVMe after DSM 7.0 : FS2017 , RS18017xs+, RS4017xs+, RS3617RPxs ;, RS3617xs+, RS3618xs , DS3617xs.
Support form factor:
For both SATA & NVMe: Broadwell-DE :FS1018, DS3018xs.
Denverton: RS2818Rp+, RS2418+( RP+),DS2419+, DS1819+,DS1618+
SATA only :
Avoton: RS1218+. RS818+(RP+) , DS1517+.
SATA after DSM 6.2, NVMe after DSM 7.0 : FS2017 , RS18017xs+, RS4017xs+, RS3617RPxs ;, RS3617xs+, RS3618xs , DS3617xs.
Specifications
▼
| EAN | 0846504003099 |
|---|---|
| UPC | 0846504003099 |
| GTIN | 0846504003099 |
| Brand | Synology |
| Model | M2D18 |
| Notes | Model specifications are subject to change. For mission-critical or I/O-intensive environments, use higher-endurance SSDs to avoid potential data loss due to finite SSD write endurance. |
| Weight | 0.18 lbs |
| Features | Supports NVM Express (NVMe) Attachable heatsink for thermal management Supports both NVMe and SATA M.2 SSDs Flexible form factor support (2280/2260/2242) |
| Heatsink | Attachable heatsink panels for M.2 SSDs (individual heatsink panels adhesive to NAND chips); heatsink clips included |
| Warranty | Limited warranty - 3 years |
| M.2 Slots | 2 |
| Description | Synology M2D18 is a dual M.2 SSD adapter card designed to boost NAS I/O performance by reducing random I/O latency for tasks such as photo indexing, file search, and virtualization. It provides two internal M.2 slots that support both NVMe and SATA SSDs (note: some NAS models only support SATA or NVMe — see compatibility notes). The adapter uses a PCIe 2.0 x8 host interface, includes attachable heatsinks for thermal management, and supports 2280/2260/2242 form factors. Includes mounting brackets and accessories for flexible installation. |
| Product Type | Storage bay adapter / Host Bus Adapter |
| Compatibility | Drive Support Notes: All NAS will support SATA 6Gb/s, but only some will support NVMe drives. Two SSDs must be both NVMe or both SATA at the same time — mixing NVMe and SATA is not supported. Compatibility (SATA Only): [ "RS1219+", "RS818+", "RS818RP+", "DS1817+", "DS1517+" ] Compatibility (Both SATA and NVMe): [ "FS1018", "DS3018xs", "RS2818RP+", "RS2418+", "RS2418RP+", "DS2419+", "DS1819+", "DS1618+" ] Compatibility (SATA after DSM 6.2 / NVMe support in next update): [ "FS2017", "RS18017xs+", "RS4017xs+", "RS3617RPxs", "RS3617xs+", "RS3618xs", "DS3617xs" ] |
| Product Title | Synology M2D18 Dual M.2 SSD Adapter Card (PCIe 2.0 x8) |
| SATA Controller | Marvell 88SE9235 |
| Packaged Quantity | 1 |
| Power Device Type | None |
| Host Bus Interface | PCIe 2.0 x8 |
| Interface Provided | 2 x M.2 (internal) |
| Operating Humidity | 5% - 95% RH |
| PCI-Express Switch | IDT 89HPES24T6G2 |
| Supported SSD Types | NVMe SATA |
| Included Accessories | Heatsinks Heat sink clips M.2 drive risers Alternate backplane Screws Instruction manual Low-profile and full-height brackets |
| Operating Temperature | Max: 40 °C (104 °F) Min: 0 °C (32 °F) |
| Manufacturer Part Number | M2D18 |
| Supported M.2 Form Factors | 2280 2260 2242 |
| Interface Required Connections | 1 x PCIe 2.0 x8 |
Vendor Info
▼
Synology M2D18 PCIe Adapter card.
