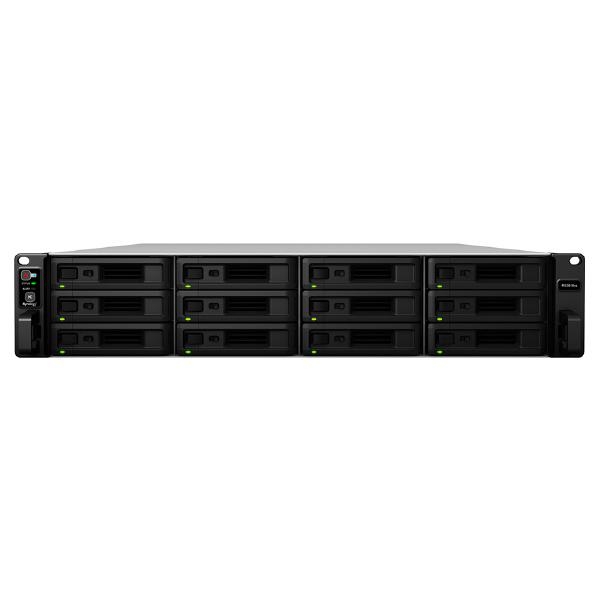

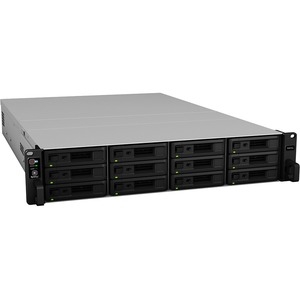

    Synology RS3618xs RackStation 12-Bay Scalable Nas ( Rail Kit Optional ) RS3618xs

    $5,349.00
    SKU:264067
    MPN:RS3618xs Link
    Manufacturer:https://www.synology.com
    Brand: Synology
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Synology RackStation RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. RS3618xs simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS3618xs is backed with 5-year warranty.

    Specification:

    •CPU Frequency: Intel Xeon D-1521 quad-core 2.4Ghz,Turbo boost up to 2.7Ghz

    •Floating Point

    •Memory: DDR4 8GB ECC RAM(Expandable, up to 64GB

    •Internal HDD/SSD: 3.5" or 2.5" SATA(II) x12, SSD cache x2(Hard drive not included)

    •Max Internal Capacity: 120TB (12x 10TB HDD) (Capacity may vary by RAID types)

    •Hot Swappable HDD

    •External HDD Interface: USB 3.0 X 2, Expansion Port x2

    •Size (HxWxD): 88x430.5x692mm

    •Weight: 14.5Kg

    •LAN: Gigabit x 4 supports 2Xoptional dual-port 10GbE add-on card

    •Link Aggre
    Fans4 x 80 x 80 mm
    BrandSynology
    ColorBlack
    ModelRS3618xs
    NotesDiskless system — storage drives sold separately Refer to Synology compatibility list for supported drives and expansion units Model specifications subject to change without prior notice
    BTU/hrAccess: 487.12 BTU/hr HDD Hibernation: 187.84 BTU/hr
    Weight14.5 kg
    CategoryStorage
    Warranty5-year limited hardware warranty (Synology Replacement Service available in selected regions)
    CPU Cores4
    CPU ModelIntel Xeon D-1521
    Fan ModesFull-Speed Mode Cool Mode Quiet Mode
    USB Ports2 x USB 3.0 (Type-A)
    Drive Bays12
    Rack Units2U
    CPU Threads8
    DescriptionThe Synology RackStation RS3618xs is a high-performance, scalable 2U rackmount NAS designed for large-scale enterprises and virtualization environments. Powered by an Intel Xeon D-1521 quad-core (4 cores / 8 threads) processor with AES-NI and 8 GB DDR4 ECC UDIMM (expandable to 64 GB across 4 slots), the RS3618xs delivers fast sequential throughput and high iSCSI random IOPS. The unit includes 12 hot-swappable 2.5"/3.5" SATA drive bays and supports expansion up to 36 drives with two RX1217/RX1217RP expansion units. Dual PCIe 3.0 x8 slots support optional 10GbE/25GbE NICs or M.2 adapter cards for SSD cache. DiskStation Manager (DSM) provides enterprise features including Btrfs/EXT4 support, snapshot replication, virtualization integration (VM Manager, VMware, Hyper-V, Citrix, OpenStack), iSCSI, link aggregation/failover, and comprehensive backup solutions. The RS3618xs includes redundant-ready design elements, four 80 x 80 mm fans, 500 W internal power supply, and a 5-year limited hardware warranty.
    Form Factor2U rackmount (4-post 19" rack supported; Synology Rail Kit RKS-02)
    Noise Level50.2 dB(A)
    Power SupplyType: Internal Rated Wattage: 500 W Power Frequency: 50/60 Hz, Single Phase AC Input Voltage: 100V to 240V AC
    Sub-CategoryNetwork Attached Storage (NAS)
    CPU Frequency2.4 GHz base / 2.7 GHz turbo
    Product TitleSynology RackStation RS3618xs 12-Bay 2U Rackmount NAS (Diskless)
    Expansion Ports2 (for expansion units)
    Operating SystemDiskStation Manager (DSM)
    Country of OriginTaiwan
    Memory TechnologyDDR4 ECC UDIMM
    Packaging ContentMain unit x1 Accessory pack x1 AC power cord x1 Quick Installation Guide x1
    Power ConsumptionAccess: 142.76 W HDD Hibernation: 55.05 W
    Network Interfaces4 x Gigabit Ethernet (RJ-45) - link aggregation and failover support
    Operating Humidity5% to 95% RH (varies by source: 5–95% / 8–80% reported)
    Total Memory Slots4
    Storage Temperature-20°C to 60°C (-5°F to 140°F)
    Hot-Swappable DrivesYes
    PCIe Expansion Slots2 x PCIe Gen3 x8 (x8 link)
    Operating Temperature5°C to 35°C (40°F to 95°F)
    Supported Drive Types3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
    Supported RAID LevelsRAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID F1 Basic JBOD Synology Hybrid RAID (SHR)
    Dimensions (H x W x D)88 mm x 482 mm x 724 mm (3.5" x 16.9" x 27.2")
    File Systems (Internal)Btrfs EXT4
    Maximum Memory Capacity64 GB (16 GB x 4)
    Number of HDDs Supported12
    Number of SSDs Supported12
    Expansion Units SupportedRX1217 RX1217RP
    System Memory (Installed)8 GB DDR4 ECC UDIMM (1 x 8 GB)
    Hardware Encryption EngineAES-NI
    Certifications & ComplianceFCC CE BSMI VCCI RCM EAC CCC KC BIS RoHS
    Supported Protocols & ServicesiSCSI NFS SMB / CIFS AFP FTP HTTP/HTTPS RSync Kerberos DLNA VPN Wake on LAN (WOL)
    Total Raw Capacity (documented)144 TB
    M.2 Adapter / Combo Card SupportE10M20-T1 (10GbE + M.2 combo) M2D18 / M2D20 (M.2 adapter cards)
    Virtualization & Backup FeaturesSynology Virtual Machine Manager VMware, Windows Hyper-V, Citrix, OpenStack integration Active Backup for Server Hyper Backup Active Backup for Office 365 / G Suite Snapshot Replication File self-healing
    External Drive File System SupportBtrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
    Maximum Drive Bays with Expansion Unit36 (with up to 2 x RX1217/RX1217RP)
    Optional / Compatible Accessories (selected)DDR4 ECC UDIMM (D4EC-2666-8G / D4EC-2666-16G) Expansion units: RX1217, RX1217RP Enterprise 3.5" SATA HDD: HAT5300 Series Enterprise 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE combo adapter card: E10M20-T1 M.2 SSD adapter cards: M2D20, M2D18 10GbE NICs: E10G30-F2, E10G30-T2, E10G18-T1 25GbE NIC: E25G30-F2 Synology rail kit: RKS-02 (sold separately)
    Synology RS3618xs RackStation 12-Bay Scalable NAS ( RAIL KIT optional )
