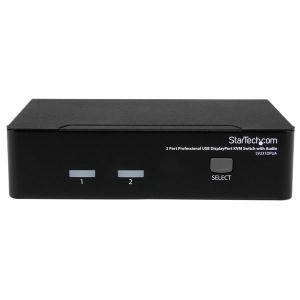

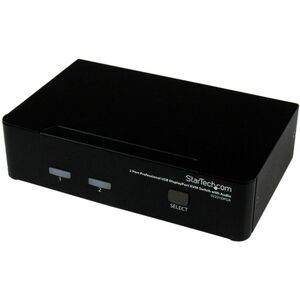

Startech 2 Port Professional Usb Displayport Kvm Switch With Audio Sv231dpua
| SKU: | 223536 |
|---|---|
| MPN: | SV231DPUA Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Native resolution: 2560 x 1600 @ 60Hz, beyond 1080pThe SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic. |  |
 | Hotkey and push-button switchingA simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices. |
High resolution medical imaging and Health care display, such as MRI and Xray displayA suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate. |  |
Applications
- Multimedia design, multimedia post-production and video editing using Mac or PC computers
- High resolution medical imaging and Health care display, such as MRI and Xray display
- Manufacturing line computer control
- PC test/burn-in computer control
- High-res Digital Signage server control
- Satellite Topography
- Dual system control for a single work terminal
Specifications
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Green - Online indicator (One LED per port) |
| Red - Select indicator (One LED per port) | |
| Packaging Information | |
| Shipping (Package) Weight | 1300 g [45.9 oz] |
| Performance | |
| DVI Support | No |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130 mm [5.1 in] |
| Product Height | 44 mm [1.7 in] |
| Product Weight | 1100 g [38.8 oz] |
| Product Width | 220 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 2-port DisplayPort KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/UK/EU/AU) | |
Vendor Info
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
