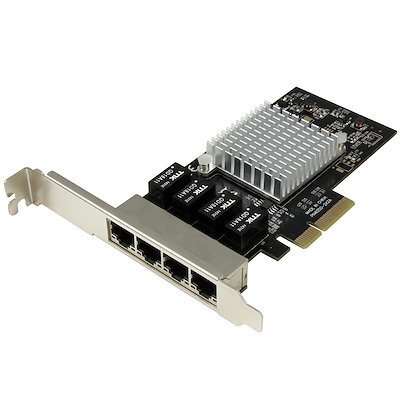

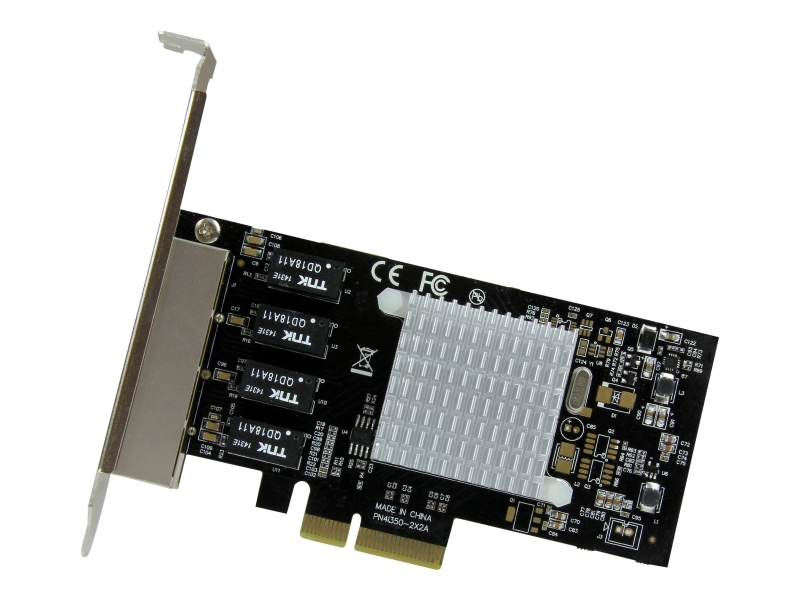

STARTECH 4-PORT GbE PCIE NETWORK CARD, INTEL I350, 2YR ST4000SPEXI
| SKU: | 394647 |
|---|---|
| MPN: | ST4000SPEXI Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Add four 10/100/1000 RJ-45 Ethernet ports to a client, server or desktop through one PCIe slot
Intel I350-AM4 chipset with Intel® Virtualization Technology for connectivity
PXE network boot
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Auto MDIX support
Autonegotiation support
Wake-on-LAN support
Up to 9K jumbo frame support
IEEE802.3az Energy Efficient Ethernet (EEE)
Supports IEEE 802.1Q VLAN tagging
Full or low-profile (LP bracket included) installation
Full duplex support
CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4
4 - RJ-45
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20% ~ 80% RH
Hardware
Ports
4
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full Duplex Flow Control
Chipset ID
Intel - I350-AM4
Indicators
LED Indicators
4 - 100/1000 Mbps Indicator
4 - Link/Activity
Packaging Information
Package Height
1.2 in [3.1 cm]
Package Length
5.6 in [14.3 cm]
Shipping (Package) Weight
5.7 oz [162.0 g]
Package Width
6.7 in [17.1 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
2000 Mbps (full-duplex)
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Supported Protocols
IEEE 802.3ad (link aggregation), IEEE 1588 (time sync)
Physical Characteristics
Weight of Product
3.2 oz [90.0 g]
Color
Black
Material
Steel
Product Length
5.2 in [13.2 cm]
Product Width
0.7 in [1.8 cm]
Product Height
4.7 in [12.0 cm]
Power
Power Consumption (In Watts)
4.4W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express x4 or higher (x8, x16) slot
What's in the Box
Included in Package
1 - 4 Port Network Card
1 - Low Profile Bracket
1 - Instruction Manual
