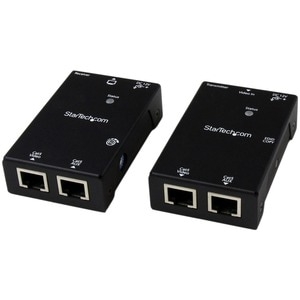

StarTech.com Video Extender Transmitter/Receiver - Wired - Taa Compliant - 1 Input Device - 1 Output Device - 50 M Range - 4 X Network (Rj-45) - 1 X HDMI In - 1 X HDMI Out - 1920 X 1080 Video Resolution - Full Hd - Twisted Pair - Rack-mountable ST121SHD5
$202.00
| SKU: | 209984 |
|---|---|
| MPN: | ST121SHD50 Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer
Specifications
▼
| Product Type | Video Extender Transmitter/Receiver |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Brand Name | StarTech.com |
| Maximum Operating Distance | 50 m |
| Number of Network (RJ-45) Ports | 4 |
| Number of HDMI Inputs | 1 |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| TAA Compliant | Yes |
| Manufacturer Part Number | ST121SHD50 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Twisted Pair Cable Standard | Category 6 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/st121shd50_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/st121shd50_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/st121shd50_weee.pdf |
| Length | 78.7 mm |
| Transmitter Height | 20.32 mm |
| Transmitter Width | 50.80 mm |
| Transmitter Depth | 78.74 mm |
| Receiver Height | 20.32 mm |
| Receiver Width | 50.80 mm |
| Receiver Depth | 78.74 mm |
| Transmitter Weight (Approximate) | 314 g |
| Receiver Weight (Approximate) | 314 g |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminium |
| Daisy Chain | No |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Shipping Dimensions | Height 6.8, Width 15.6, Length 23.4, Shipping Weight 0.94 KG |
Vendor Info
▼
StarTech.com Video Extender Transmitter/Receiver - Wired - TAA Compliant - 1 Input Device - 1 Output Device - 50 m Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1920 x 1080 Video Resolution - Full HD - Twisted Pair - Rack-mountable
