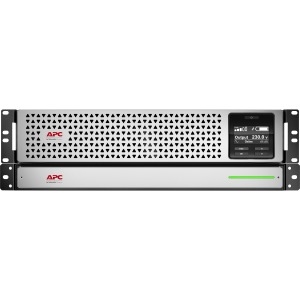

Apc (srtl1000rmxli-nc) Smart-ups Srt Li-ion 1000va Rm 230v Network Card Srtl1000rmxli-nc

$5,528.00
SKU:270527
MPN:SRTL1000RMXLI-NC Link
Manufacturer:http://www.apc.com/
Brand: Apc
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line has a rack/tower convertible chassis. The batteries allow for greater performance at higher temperatures and greater overall lifecycle of the UPS.

Features:

  • Battery failure notification
  • LCD graphics display
  • ECO Mode
  • Rack/Tower convertible
  • Battery failure notification

    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

  • LCD graphics display

    Text and mimic diagrams that display modes of operation, system parameters and alarms

  • ECO Mode

    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • Rack/Tower convertible

    Protects the initial investment in the UPS when migrating from tower to rack-mount environment

Technical Specification Output
  • Output power capacity 900Watts / 1.0 kVA
  • Max Configurable Power (Watts) 900Watts / 1.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Distortion Less than 2%
  • Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
  • Other Output Voltages 220, 240
  • Load Crest Factor 3 : 1
  • Topology Double Conversion Online
  • Waveform type Sine wave
  • Output Connections (8) IEC 320 C13 (Battery Backup)
  • Bypass Built-in Bypass
Input
  • Nominal Input Voltage 230V
  • Input frequency 40 - 70 Hz (auto sensing)
  • Input Connections IEC-320 C14
  • Input voltage range for main operations 50-150 (40% Load), 80 - 150V
  • Other Input Voltages 220, 240
Batteries & RuntimeCommunications & Management
  • Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
  • Pre-Installed SmartSlot™ Cards AP9631
  • Control panel Multi-function LCD status and control console
  • Audible Alarm Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO) Yes
Surge Protection and Filtering
  • Surge energy rating 340Joules
Physical
  • Maximum Height 128mm , 12.8CM
  • Maximum Width 432mm , 43.2CM
  • Maximum Depth 590mm , 59.0CM
  • Rack Height 3U
  • Net Weight 25.7KG
  • Shipping weight 37.4KG
  • Shipping Height 445mm , 44.5CM
  • Shipping Width 600mm , 60.0CM
  • Shipping Depth 850mm , 85.0CM
  • Color Black
  • Units per Pallet 6.0
Environmental
  • Operating Temperature 0 - 40 °C
  • Operating Relative Humidity 0 - 95% non-condensing %
  • Operating Elevation 0-3000meters
  • Storage Temperature -20 - 50 °C
  • Storage Relative Humidity 0 - 95% non-condensing %
  • Storage Elevation 0-15000meters
  • Audible noise at 1 meter from surface of unit 50.0dBA
  • Online thermal dissipation 400.0BTU/hr
  • Protection Class IP 20
Conformance
  • Approvals CE, CE Mark, EAC, RCM, VDE
  • Standard warranty 5 year repair or replace
Basic
Backup/Run Time (Full Load): 31.60 Minute
Brand Name: Schneider Electric
Form Factor: Tower/Rack Mountable
Hot Swappable: Yes
Input Voltage Range: 80 V AC - 150 V AC
Input Voltage: 230 V AC
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 900 W
Network (RJ-45): Yes
Plug/Connector Type: IEC 60320 C14
Product Family: Smart-UPS SRT
Product Type: Dual Conversion Online UPS
Rack Height: 3U
Receptacles: 8 x IEC 60320 C13
Waveform Type: Sine Wave
Battery Information
Backup/Run Time (Full Load): 31.60 Minute
Hot Swappable: Yes
Maximum Battery Recharge Time: 6 Hour
General Information
Brand Name: Schneider Electric
Manufacturer Part Number: SRTL1000RMXLI-NC
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Line: Smart-UPS SRT
Product Name: Smart-UPS SRT 1.0KVA Tower/Rack Mountable UPS
Product Type: Dual Conversion Online UPS
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Depth: 590 mm
Form Factor: Tower/Rack Mountable
Height: 128 mm
Rack Height: 3U
Weight (Approximate): 25.70 kg
Width: 432 mm
Power Description
Input Voltage Range: 80 V AC - 150 V AC
Input Voltage: 230 V AC
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 900 W
Output Voltage: 220 V AC
Waveform Type: Sine Wave
Technical Information
Plug/Connector Type: IEC 60320 C14
Receptacles: 8 x IEC 60320 C13
