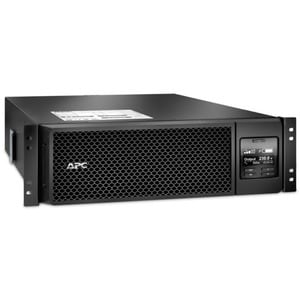

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 Iec Outlets, Network Card+SmartSlot, Extended Runtime, W/ Rail Kit SRT5KRMXLI

$8,258.00
SKU:204797
MPN:SRT5KRMXLI Link
Manufacturer:http://www.schneider-electric.com.au
Brand: Apc
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 3U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 719mm (depth) x 130mm (height) x 432mm (width) and weighs 54.43kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Battery Chemistry Lead Acid
Product Type Double Conversion Online UPS
Hot Swappable Yes
Input Voltage 230 V AC
Form Factor Rack-mountable
Waveform Type Sine Wave
Brand Name APC by Schneider Electric
Plug/Connector Type Hard Wire 3 wire (1PH+N+G)
Receptacle Type IEC 60320 C13, IEC 60320 C19
Network (RJ-45) Yes
Product Family Smart-UPS SRT
Backup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 4 Minute
Load Capacity (VA) 5 kVA
Load Capacity (Watt) 4.50 kW
Product Color Black
Receptacle Detail 4 x IEC 60320 C19, 6 x IEC 60320 C13
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Number of Batteries 1
Battery Characteristics Maintenance-free, Sealed, Spill-proof
Typical Battery Recharge Time 3 Hour
Status Indicators LED Indicators
Thermal Dissipation 931 BTU/h
Maximum Operating Temperature 40°C
Sound Emission (A-Weighted) 55 dB(A)
Manufacturer Part Number SRT5KRMXLI
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Smart-UPS SRT 5000VA RM 230V
Product Line Smart-UPS
Product Series SRT
USB Yes
Total Number of Expansion Slots 1
Alarm Battery Failure
Package Contents • Smart-UPS SRT 5000VA RM 230V • Documentation CD • Installation Guide • Rack Mounting Brackets • Rack Mounting Hardware • Rails Rack Mount Bracket • Temperature Probe • Warranty Card
Certifications & Standards • CE • CE Mark
Environmentally Friendly Yes
Weight (Approximate) 54.55 kg
Height 130 mm
Width 432 mm
Depth 719 mm
Color Family Black
Circuit Breaker Yes
Output Voltage 230 V AC
Surge Energy Rating 480 J
Bypass Switch Internal, Automatic & Manual
Emergency Power OFF Yes
Protection Type Spike, Surge, Lightning
Shipping Dimensions Height 33, Width 62, Length 95.5, Shipping Weight 66.86 KG
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
