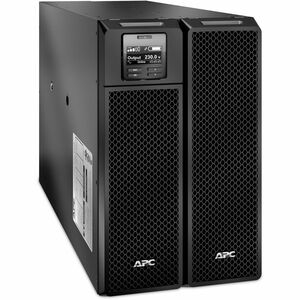

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 Iec Outlets, Network Card+SmartSlot, Extended Runtime, W/O Rail Kit SRT10KXLI

APC Smart-UPS SRT 10000VA 230V SRT10KXLI
$13,175.00
SKU:200821
MPN:SRT10KXLI Link
Manufacturer:http://www.schneider-electric.com.au
Brand: Apc
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA/10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 6U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire/5-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 3x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 432mm (depth) x 715mm (height) x 263mm (width) and weighs 111.82kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, VDE, EAC, IRAM, RCM, EN/IEC 62040-1/62040-2. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Battery Chemistry Lead Acid
Product Type Double Conversion Online UPS
Input Voltage 230 V AC, 380 V AC, 400 V AC, 415 V AC
Form Factor Tower
Waveform Type Sine Wave
Brand Name APC
Plug/Connector Type Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Phase Single Phase/Three Phase
Receptacle Type IEC 60320 C13, IEC 60320 C19, Hard Wire 3-wire (H N + G)
Network (RJ-45) Yes
Product Family Smart-UPS SRT
Backup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 3 Minute
Load Capacity (VA) 10 kVA
Load Capacity (Watt) 10 kW
Product Color Black
Receptacle Detail 6 x IEC 60320 C13, 1 x Hard Wire 3-wire (H N + E), 4 x IEC 60320 C19, 3 x IEC Jumper
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
Number of Batteries 2
Battery Characteristics Maintenance-free, Sealed, Spill-proof
Typical Battery Recharge Time 1.50 Hour
Thermal Dissipation 2002 BTU/h
Maximum Operating Temperature 40°C
Sound Emission (A-Weighted) 55 dB(A)
Manufacturer Part Number SRT10KXLI
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Smart-UPS SRT 10000VA 230V
Product Line Smart-UPS
Product Series SRT
USB Yes
Total Number of Expansion Slots 1
Package Contents • Smart-UPS SRT 10000VA 230V • CD with Software • Documentation CD • Installation Guide • Temperature Probe • USB Cable • Warranty Card
Certifications & Standards • CE • CE Mark
Environmentally Friendly Yes
Mercury Free Yes
For Country/Region United States
SCIP Number 409c68a1-39a6-4e5f-b080-12befe783ad8
Product Take Back Program Yes
RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KXLI_ROHS_DECLARATION&p_FileName=SRT10KXLIKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL https://download.schneider-electric.com/files?p_Doc_Ref=SRT10KXLI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL https://download.schneider-electric.com/files?p_Doc_Ref=SRT10KXLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf
Energy Star URL https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies
REACH free of SVHC No
WEEE Statement The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Single-use Plastic (SUP) Free Shipping Packaging No
Sustainable Packaging No
Reach Compliance Date 12/10/2025
Weight (Approximate) 111.82 kg
Height 432 mm
Width 263 mm
Depth 715 mm
Color Family Black
Mounting Location Front
Mounting Preference No Preference
Output Voltage 230 V AC
Surge Energy Rating 480 J
Bypass Switch Automatic & Manual
Emergency Power OFF Yes
Protection Type Surge
Shipping Dimensions Height 34, Width 60, Length 99, Shipping Weight 129.3 KG
APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
