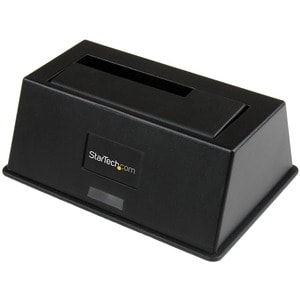

Startech Usb 3.0 Sata Iii Hard Drive Docking Station Ssd / Hdd With Uasp - 2.5/3.5 Usb 3.0 Sata I/ii/iii Ssd / Hdd Dock Station With Uasp - Us Sdocku33bv

$86.00
SKU:230514
MPN:SDOCKU33BV Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
Connector(s)
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
Host ConnectorsUSB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity20%RH ~ 80%RH
Operating Temperature5?C to 35?C (41?F to 95?F)
Storage Temperature-20?C to 50?C (-4?F to 122?F)
Hardware
Chipset IDASMedia - ASM1053 - 6G
Compatible Drive TypesSATA
Drive InstallationRemovable
Drive Size2.5in & 3.5in
Fan(s)No
InterfaceUSB 3.0
Number of Drives1
Indicators
LED IndicatorsPower/Activity
Packaging Information
Shipping (Package) Weight704 g [24.9 oz]
Physical Characteristics
ColorBlack
Product Height52 mm [2 in]
Product Length139 mm [5.5 in]
Product Weight704 g [24.9 oz]
Product Width91 mm [3.6 in]
Power
Input Voltage100 ~ 240 AC
Output Voltage12 DC
Power SourceAC Adapter Included
Software
Microsoft WHQL CertifiedYes
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in PackageInstruction Manual
Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
USB 3.0 Cable
USB 3.0 SATA hard drive docking station

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
