Startech Usb 3.0 Dual Hard Drive Docking Station With Uasp For 2.5 /3.5in Hdd / Ssd A Usb 3.5 Sata

HDD/SSD Dock - USB 3.0 Docking Station for SATA 6 Gbps hard drives solid state drives SDOCK2U33
Special Price $118.00 Regular Price $135.00
SKU:225926
MPN:SDOCK2U33 Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

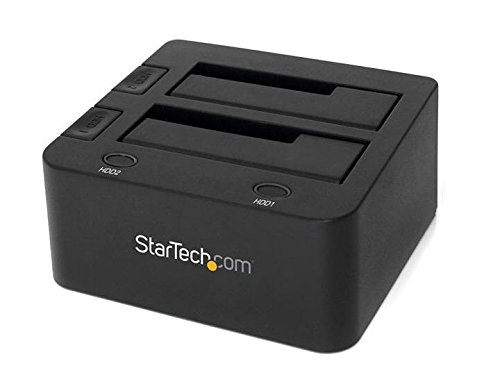

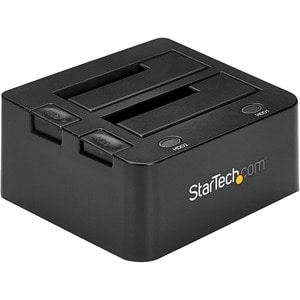

The SDOCK2U33 Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

The hard drive dock features independent power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time.

Extend the value of this hard drive docking station further with the addition of ourSATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCK2U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

SDOCK2U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage
  • Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
  • Hassle-free operation with independent drive power allowing for uninterrupted data transfers while hot-swapping the other drive
Connector(s)
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
Host ConnectorsUSB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity20%RH~80%RH
Operating Temperature5?C to 35?C (41?F to 95?F)
Storage Temperature-20?C to 50?C (-4?F to 122?F)
Hardware
Chipset IDVIA/VLI - VL812
ASMedia - ASM1053 - 6G
Compatible Drive TypesSATA
Drive InstallationRemovable
Drive Size2.5in & 3.5in
Fan(s)No
InterfaceUSB 3.0
Number of Drives2
Indicators
LED IndicatorsDrive Power / Activity
Packaging Information
Shipping (Package) Weight950 g [33.5 oz]
Performance
Insertion Rating15,000 Cycles
Max Drive CapacityCurrently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
MTBF30,000
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Product Height70 mm [2.8 in]
Product Length148 mm [5.8 in]
Product Weight498 g [17.6 oz]
Product Width132 mm [5.2 in]
Power
Input Current1.3 A
Input Voltage100 ~ 240 AC
Output Current3 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)36
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in Package3ft (1m) USB 3.0 Cable
Instruction Manual
Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
USB 3.0 to Dual 2.5/3.5in SATA hard drive docking station

The SDOCK2U33 Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

The hard drive dock features independent power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCK2U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

SDOCK2U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
