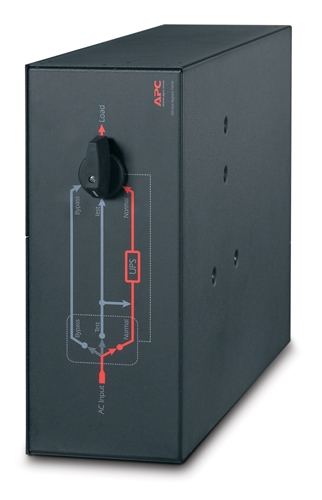

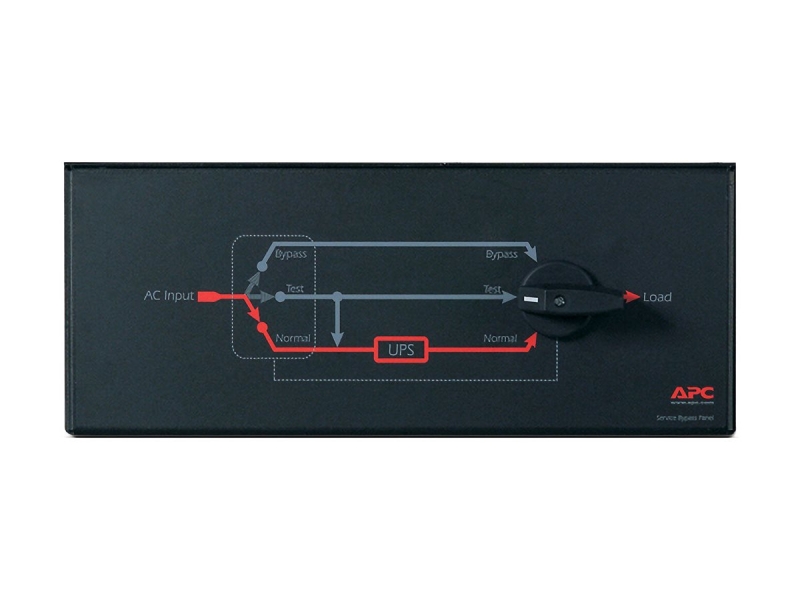

    main product photo

    Apc (sbp16kp) Service Bypass Panel- 200/208/240v; 100a; Mbb; Hardwire Input/output Sbp16kp

    $3,190.00
    SKU:225169
    MPN:SBP16KP Link
    Manufacturer:https://www.apc.com/au/en/
    Brand: Apc
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    BP16KPFeatures

    APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output

    Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

    Includes : Installation Guide , Rack Mounting Brackets , User Manual

    • Wrap Around System Bypass
      (3) Breaker maintenance bypass panel to isolate the UPS from the critical load

    Output

    • Nominal Output Voltage
      120V , 200V , 208V , 230V
    • Other Output Voltages
      220, 240
    • Overload Protection
      Yes
    • Maximum Total Current Draw
      100
    • Output Connections
      (1) Hard Wire 3-wire (H N + G) (Battery Backup)
      (1) Hard Wire 3-wire (2PH + G) (Battery Backup)

    Input

    • Nominal Input Voltage
      200V , 208V , 230V , 480V 3PH
    • Input frequency
      50/60 Hz
    • Input Connections
      Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
    • Acceptable Input Voltage
      200-240VAC
    • Number of Power Cords
      1
    • Load Power Factor Range
      0 to 1
    • Load Capacity
      20000VA
    • Maximum Input Current
      100A
    • Maximum Line Current
      100A

    Physical

    • Maximum Height
      178mm , 17.8cm
    • Maximum Width
      432mm , 43.2cm
    • Maximum Depth
      660mm , 66.0cm
    • Rack Height
      4U
    • Net Weight
      21.36kg
    • Shipping weight
      31.36kg
    • Shipping Height
      305mm , 30.5cm
    • Shipping Width
      610mm , 61.0cm
    • Shipping Depth
      991mm , 99.1cm
    • Color
      Black

    Environmental

    • Operating Environment
      -20 - 50 °C
    • Operating Relative Humidity
      0 - 95 %
    • Operating Elevation
      0-4500meters
    • Storage Temperature
      -40 - 65 °C
    • Storage Relative Humidity
      0 - 95 %
    • Storage Elevation
      0-15000meters

    Conformance

    • Approvals
      CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
    • Standard warranty
      2 years (parts only)

    Sustainable Offer Status

    • RoHS
      Compliant
