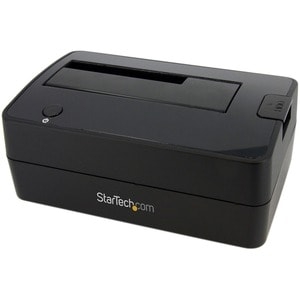

Startech Superspeed Usb 3.0 To Sata Hard Drive Docking Station For 2.5/3.5 Hdd - Hdd Docking Station - Sata Dock Satdocku3s
SKU: | 230362 |
---|---|
MPN: | SATDOCKU3S Link |
Manufacturer: | https://www.startech.com/ |
Brand: | Startech |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.
Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.
Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speeds of up to 5Gbps, making it the fastest way to access data from an external drive. Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.
To ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The StarTech.com Advantage
- SuperSpeed USB 3.0 technology provides fast access for external storage, while still being backwards compatible with USB 2.0
- A top slot-loading design and unique drive ejection mechanism provides quick and easy access to the data without having to install drives into an enclosure or tray
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
Packaging Information | |
Shipping (Package) Weight | 728 g [25.7 oz] |
Performance | |
Insertion Rating | 15,000 Cycles |
Max Drive Capacity | Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive |
Type and Rate | SATA II (3 Gbps) |
USB 2.0 - 480 Mbit/s | |
USB 3.0 - 5 Gbit/s | |
UASP Support | No |
Physical Characteristics | |
Color | Black |
Enclosure Type | Plastic |
Product Height | 65 mm [2.6 in] |
Product Length | 145 mm [5.7 in] |
Product Weight | 0.4 kg [0.9 lb] |
Product Width | 93 mm [3.7 in] |
Indicators | |
LED Indicators | Power and Activity (Solid - Power, Blinking - Activity) |
Hardware | |
Number of Drives | 1 |
Interface | USB 3.0 |
Fan(s) | No |
Drive Size | 2.5in & 3.5in |
Compatible Drive Types | SATA |
Chipset ID | ASMedia - ASM1053 |
Environmental | |
Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
Operating Temperature | 5?C to 80? (41?F to 176?F) |
Humidity | 8~80% RH |
Connector(s) | |

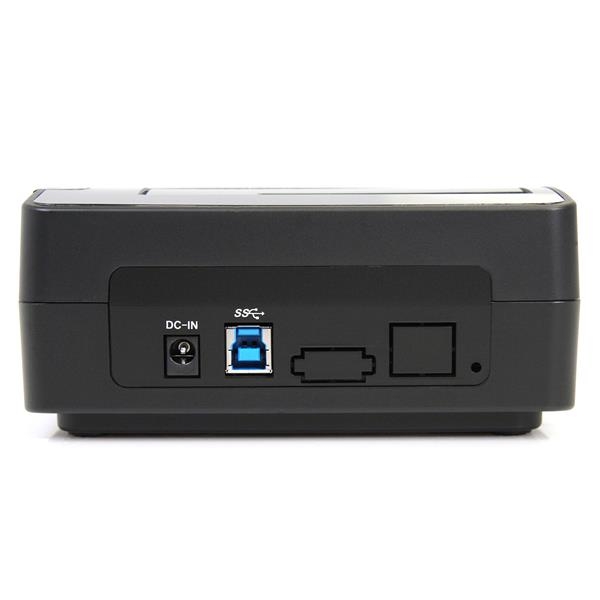

Host Connectors | USB Type-B (9 pin) USB 3.0 Female |
Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
Power | |
Center Tip Polarity | Positive |
Input Voltage | 110V-240V AC |
Output Current | 2.5A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 30 |
Power Source | AC Adapter Included |
Software | |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |
Included in Package | Instruction Manual |
Universal Power Adapter (NA,EU,UK,ANZ) | |
USB 3.0 Cable | |
USB 3.0 HDD Dock |
