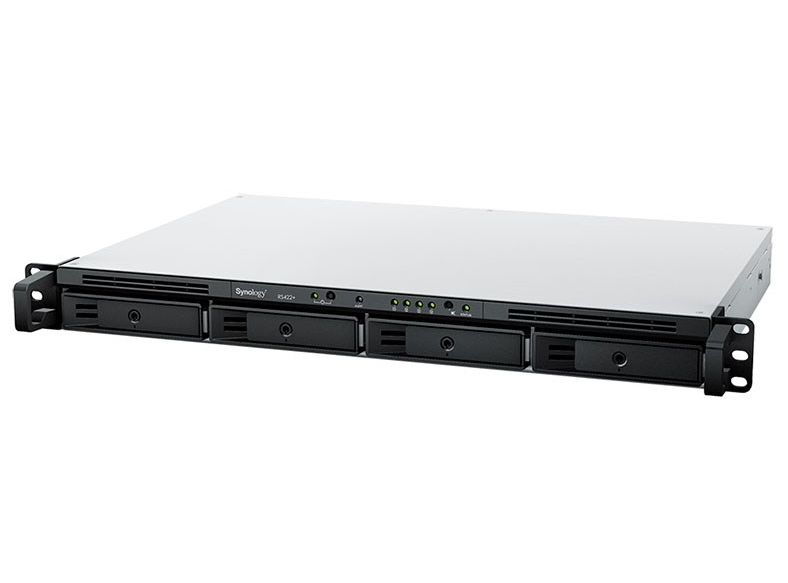

Synology RS422+ RackStation 4-Bay Nas ( Rail Kit Optional ) Check Hdd Compatibility List. RS422+
$1,635.00
| SKU: | 384148 |
|---|---|
| MPN: | RS422+ Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Synology RackStation RS422+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Powered by Synology DSM OS, it offers an affordable all-in-one solutions for data sharing, synchronization, and backup to small businesses and home lab owners looking to meet their daily data management needs.
Specification:
•CPU Frequency: AMD Ryzen R1600 dual-core 2.6Ghz max boost clock up to 3.1GHz
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA/ SSD x4 (Hard drive not included)
•Max Internal Capacity: x 4 HDD (Capacity may vary by RAID types)
•Hot Swappable HDD
•External HDD Interface: USB 3.2 Gen 1 Port X 1
•Size (HxWxD): 44x430x295.5mm
•Weight: 4.38Kg
•LAN: Gigabit x2
•Link Aggregation
•System Fan: 40x40mm x3
•Wireless Support (dongle)
•Noise Level: 22.6 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Freque
Specification:
•CPU Frequency: AMD Ryzen R1600 dual-core 2.6Ghz max boost clock up to 3.1GHz
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA/ SSD x4 (Hard drive not included)
•Max Internal Capacity: x 4 HDD (Capacity may vary by RAID types)
•Hot Swappable HDD
•External HDD Interface: USB 3.2 Gen 1 Port X 1
•Size (HxWxD): 44x430x295.5mm
•Weight: 4.38Kg
•LAN: Gigabit x2
•Link Aggregation
•System Fan: 40x40mm x3
•Wireless Support (dongle)
•Noise Level: 22.6 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Freque
Specifications
▼
| SKU | RS422+ |
|---|---|
| Brand | Synology |
| Model | RS422+ |
| Notes | No M.2 NVMe slots; no external expansion unit support (no RX series expansion reported). Default memory is 2 GB DDR4 ECC soldered and generally reported as non-upgradeable; this limits heavy container/VM use. 10GbE requires a Synology proprietary mini adapter (PCIe Gen3 x2). Model specifications and included accessories may vary by region. |
| Power | Power Supply: Single internal 100 W PSU BTU (reported): { "Access": "129.42 BTU/hr", "HDD Hibernation": "45.83 BTU/hr" } Power Frequency: 50/60 Hz, Single Phase AC Input Voltage: 100V to 240V AC Power Consumption (reported): { "Access": "37.93 watts", "HDD Hibernation": "13.43 watts" } |
| Series | RackStation |
| Category | Storage |
| Physical | Weight: 4.38 kg Noise Level: 28.5 dB(A) (reported when fully populated) System Fans: 3 x 40 mm Fan Speed Modes: [ "Full-Speed Mode", "Cool Mode", "Quiet Mode" ] Dimensions (H x W x D): 44 mm x 478 mm x 327.5 mm |
| Warranty | 3-year hardware warranty (extendable with Synology Extended Warranty options) |
| CPU Cores | 2 |
| CPU Model | AMD Ryzen R1600 (embedded) |
| USB Ports | 1 x USB 3.2 Gen 1 (USB 3.0) |
| Drive Bays | 4 |
| CPU Threads | 4 |
| Description | Compact 1U 4-bay rackmount NAS powered by an AMD Ryzen R1600 dual-core CPU and Synology DiskStation Manager (DSM). The RS422+ provides 2 x 1GbE with link aggregation/failover, a PCIe Gen3 x2 slot for an optional Synology 10GbE adapter (E10G22-T1-mini), support for 3.5" SATA HDDs and 2.5" SATA SSDs, hardware RAID (SHR, RAID 0/1/5/6/10, JBOD, Basic), Btrfs/ext4 file systems, and Synology application services for backup, file sharing and surveillance in a compact, quiet 1U chassis. |
| Form Factor | 1U rackmount |
| Memory Type | DDR4 ECC (soldered) |
| Performance | Synology Chat Maximum Users: 100 Synology Drive Maximum Users: 70 VPN Server Maximum Connections: 4 Sequential Throughput (reported): Up to 601 MB/s read, 516 MB/s write (reported by Synology under specific test conditions) Synology Drive Maximum Hosted Files: 500000 Maximum SMB Connections (FSCT-Based): 40 Download Station Max Concurrent Tasks: 80 |
| SAN / iSCSI | Maximum LUNs: 4 Maximum iSCSI Targets (SAN Manager): 2 |
| Sub-Category | Network Attached Storage (NAS) |
| CPU Frequency | 2.6 GHz base / up to 3.1 GHz turbo |
| Environmental | Storage Humidity: 5% to 95% RH Operating Humidity: 8% to 80% RH Storage Temperature: -20°C to 60°C (-5°F to 140°F) Operating Temperature: 0°C to 35°C (32°F to 95°F) |
| Network Ports | 2 x RJ-45 1GbE (support link aggregation and failover) |
| Onboard Flash | Small onboard flash module for first-time DSM setup (reported) |
| Product Title | Synology RackStation RS422+ 4-Bay 1U Rackmount NAS (Diskless) |
| Certifications | FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS |
| DSM & Software | Operating System: Synology DiskStation Manager (DSM) Supported Protocols: [ "SMB (SMB1/CIFS, SMB2, SMB3)", "AFP", "NFS (v3, v4, v4.1, Kerberized)", "FTP", "WebDAV", "rsync", "iSCSI", "HTTP/HTTPS", "SNMP", "LDAP", "CalDAV" ] DSM Version (reported): DSM 7.x (arrived with DSM 7.0.1 / supports DSM 7.1+) Notable Applications/Services: [ "Synology Drive", "Hyper Backup (note: full-system backup requires DSM 7.2 or later - reported)", "Snapshot Replication", "Surveillance Station", "Virtual Machine Manager", "Docker (use limited by 2 GB memory)", "Active Backup Suite", "Synology Photos" ] |
| M.2 NVMe Slots | None (no M.2 NVMe support) |
| PCIe Expansion | 1 x PCIe Gen3 x2 network upgrade slot (supports Synology E10G22-T1-mini 10GbE adapter) |
| Drive Bay Trays | Metal, lockable trays (keys included reported) |
| CPU Architecture | 64-bit |
| Hot-Swap Support | Yes |
| Memory Upgradable | No (default 2 GB soldered/non-upgradeable reported) |
| Supported RAID Types | Synology Hybrid RAID (SHR) Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA SSD |
| System Memory (Installed) | 2 GB DDR4 ECC |
| External File Systems Supported | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| Internal File Systems Supported | Btrfs ext4 |
| RAID Migration & Expansion Notes | RAID Migration Supported: [ "Basic to RAID 1", "Basic to RAID 5", "RAID 1 to RAID 5", "RAID 5 to RAID 6" ] Maximum Single Volume Size (DSM): 108 TB Volume Expansion with Larger HDDs: [ "SHR", "RAID 1", "RAID 5", "RAID 6", "RAID 10" ] Volume Expansion by Adding a Drive: [ "SHR", "JBOD", "RAID 5" ] Maximum Internal Volume Number (DSM): 64 Global Hot Spare Supported RAID Types: [ "SHR", "RAID 1", "RAID 5" ] |
| Included Accessories / Packaging Content | Main unit x1 Accessory pack x1 AC power cord x1 Quick Installation Guide x1 Reported in some unboxings: drive keys, rack handles, HDD/SSD screws, rack-mount screws |
| Surveillance Limits (Surveillance Station) | H.264: { "3M": "35 channels, 350 FPS", "4K": "17 channels, 170 FPS", "5M": "28 channels, 280 FPS", "1080p": "40 channels, 800 FPS" } H.265: { "3M": "40 channels, 600 FPS", "4K": "20 channels, 200 FPS", "5M": "40 channels, 480 FPS", "1080p": "40 channels, 1200 FPS" } Default Licenses Included: 2 |
| Optional / Compatible Accessories (reported) | Enterprise 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise 2.5" SATA SSD: SAT5200 Series 10GbE Network Upgrade Module: E10G22-T1-Mini (proprietary) Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114 |
