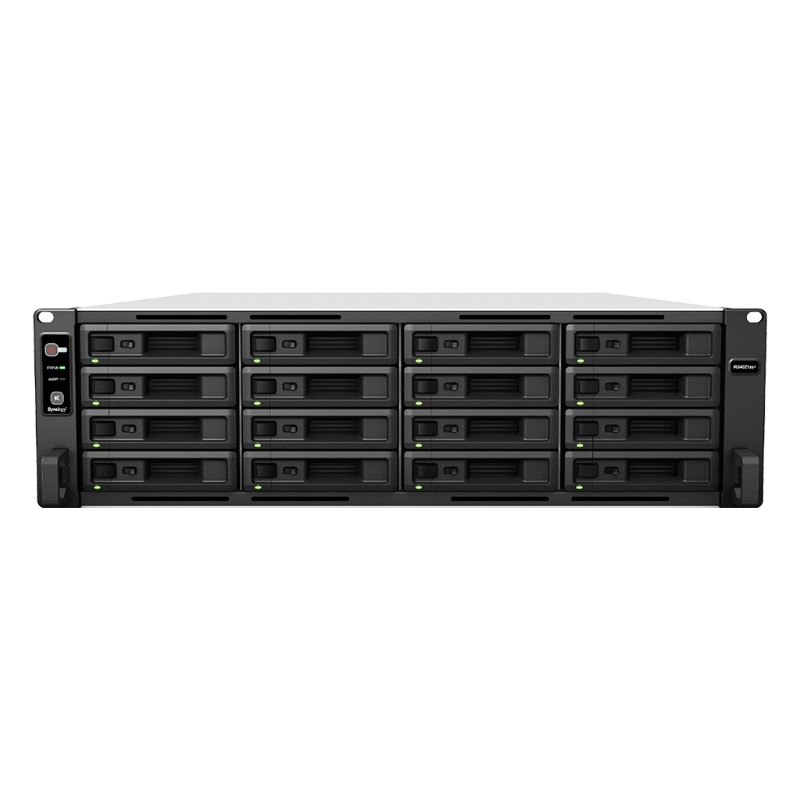

Synology RS4021xs+ RackStation 16-Bay Scalable Nas ( Rail K RS4021xs+
Special Price $10,569.00 Regular Price $12,154.00
| SKU: | 371082 |
|---|---|
| MPN: | RS4021xs+ Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Designed to meet tomorrow's intensive storage requirements, Synology RackStation RS4021xs+ provides solid data security and lightening-fast performance with over 234K 4K random read IOPS and 6,258 MB/s sequential read throughput. Together with its 8-core processor, ECC memory, advanced snapshot technology, and built-in 10Gbe connectivity, the RS4021xs+ can support large multi-user environments while handling data-intensive workloads and is backed by Synology's 5 wty.
Specification:
•CPU Frequency: Intel Xeon 8-core 2.7GHz
•HEE
•Floating Point
•Memory: DDR4 8GB ECC RAM(Expandable, up to 64GB
•Internal HDD/SSD: 3.5" or 2.5" SATA/SSD
•Hot Swappable HDD
•External HDD Interface: USB3.2 x 2
•Size (HxWxD): 88x482x656.5mm
•Weight: 17.4Kg
•LAN: Gigabit x4 , 10Gbe x 2
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mmx32m x4
•Easy Replacement System Fan
•Wireless Sup
Specification:
•CPU Frequency: Intel Xeon 8-core 2.7GHz
•HEE
•Floating Point
•Memory: DDR4 8GB ECC RAM(Expandable, up to 64GB
•Internal HDD/SSD: 3.5" or 2.5" SATA/SSD
•Hot Swappable HDD
•External HDD Interface: USB3.2 x 2
•Size (HxWxD): 88x482x656.5mm
•Weight: 17.4Kg
•LAN: Gigabit x4 , 10Gbe x 2
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mmx32m x4
•Easy Replacement System Fan
•Wireless Sup
Specifications
▼
| Brand | Synology |
|---|---|
| Model | RS4021xs+ |
| Notes | Specifications based on manufacturer data and third-party listings. Actual performance may vary depending on configuration, drives, network and workload. |
| Weight | 17.4 kg (38.36 lbs) |
| Chassis | Rack-mount NAS enclosure |
| CPU Type | Xeon D |
| Category | Storage |
| Warranty | 5 years (limited) |
| CPU Brand | Intel |
| CPU Cores | 8 |
| CPU Model | Intel Xeon D-1541 |
| USB Ports | 2 x USB 3.2 Gen 1 (Type-A) |
| BTU Rating | Access: 497.14 BTU/hr HDD Hibernation: 213.74 BTU/hr |
| Drive Bays | 16 |
| Networking | 1GbE RJ-45 Ports: 4 10GbE RJ-45 Ports: 2 Link Aggregation/Failover: Supported |
| Rack Units | 3 |
| CPU Threads | 16 |
| Description | The Synology RackStation RS4021xs+ is a 3U, 16-bay enterprise NAS engineered for data-intensive applications and service continuity. Powered by an Intel Xeon D-1541 8-core CPU (2.1 GHz base, up to 2.7 GHz turbo) and 16 GB DDR4 ECC UDIMM (expandable to 64 GB across 4 slots), the RS4021xs+ delivers high throughput and data integrity for virtualization, backup, collaboration, surveillance and other multi-user workloads. Built-in networking includes 2 x 10GbE RJ-45 and 4 x 1GbE RJ-45 with link aggregation/failover support; storage connectivity supports 16 hot-swappable 3.5" LFF bays (also supports 2.5" SATA drives/SSDs) and up to 40 drives with RX1217/RX1217RP expansion units. The unit supports Btrfs and ext4, comprehensive RAID options (including RAID F1), Synology DSM software, hardware encryption, redundant power (1+1) and a broad set of enterprise features for secure, high-performance storage. |
| Form Factor | 3U rackmount (19") |
| Memory Type | DDR4 ECC UDIMM |
| Noise Level | 44.7 dB(A) (manufacturer figure) |
| System Fans | 3 x 80 mm |
| CPU Quantity | 1 |
| Key Features | Enterprise-class 8-core Xeon CPU 16 hot-swappable drive bays (LFF) supporting HDDs and SSDs Dual 10GbE + quad 1GbE built-in networking 16 GB ECC DDR4 preinstalled (expandable to 64 GB) Btrfs support for advanced data integrity and snapshots Hardware encryption (AES-NI) Redundant power support (1+1) Synology DiskStation Manager (DSM) OS with extensive services |
| Power Supply | Rated Power: 800 W (per PSU) Configuration: Redundant (1+1) hot-swappable PSUs Power Frequency: 50/60 Hz, Single Phase AC Input Voltage: 100 V to 240 V AC |
| Product Line | RackStation |
| Sub-Category | Network Attached Storage (NAS) |
| CPU Frequency | 2.1 GHz base / 2.7 GHz turbo |
| Product Title | Synology RackStation RS4021xs+ 16-Bay 3U Enterprise NAS (Xeon D-1541, 16GB ECC, 2x10GbE + 4x1GbE) |
| Certifications | FCC CE BSMI VCCI RCM EAC CCC KC BIS UL RoHS |
| PCIe Expansion | 2 x PCIe Gen3 x8 slots (x8 link) |
| Expansion Ports | Type: Infiniband (expansion port to RX1217/RX1217RP) Count: 2 |
| CPU Architecture | 64-bit |
| Operating System | Synology DSM |
| Storage Humidity | 5% to 95% RH |
| Packaging Content | Main unit x1 Accessory pack x1 AC power cord x2 Quick Installation Guide x1 |
| Power Consumption | Access: 145.79 W HDD Hibernation: 62.68 W |
| Dimensions (HxWxD) | 132.3 mm x 482 mm x 656.5 mm (5.2" x 19" x 25.8") |
| Operating Humidity | 8% to 80% RH |
| Total Memory Slots | 4 |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Supported Protocols | SMB1 (CIFS) SMB2 SMB3 NFSv3 NFSv4 NFSv4.1 NFS Kerberized sessions iSCSI Fibre Channel HTTP HTTPS FTP SNMP LDAP CalDAV |
| Hot Swappable Drives | Yes |
| Maximum Local Groups | 512 |
| Supported RAID Types | RAID F1 RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 JBOD Basic |
| Internal File Systems | Btrfs ext4 |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Supported Drive Types | 3.5" SATA HDD (LFF) 2.5" SATA HDD 2.5" SATA SSD |
| Maximum Shared Folders | 512 |
| Maximum Memory Capacity | 64 GB (16 GB x 4) |
| System Memory (Installed) | 16 GB DDR4 ECC UDIMM |
| Hybrid Share Folder Number | 15 |
| Maximum Single Volume Size | Up to 1 PB (requires 64 GB memory for RAID 6 groups); other supported maximums: 200 TB (requires 32 GB memory); 108 TB |
| Performance (Manufacturer) | Over 234K 4K random read IOPS and 6,258 MB/s sequential read (with appropriate 10GbE NICs installed; Synology internal testing) |
| Maximum Local User Accounts | 5120 |
| Maximum Internal Volume Number | 256 |
| Maximum Shared Folder Sync Tasks | 32 |
| Optional / Compatible Accessories | DDR4 ECC UDIMM: D4EC-2666-16G Expansion Units: RX1217 / RX1217RP Enterprise 3.5" SATA HDD: HAT5300 Series Enterprise 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Cards: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail kit (Synology RKS-02) for 4-post 19" racks |
| Surveillance Station Default Licenses | 2 |
| Maximum Drive Bays with Expansion Unit | Up to 40 (with RX1217 / RX1217RP expansion units) |
| Included Accessories (varies by bundle) | Accessory pack; some seller bundles may include rack rail kit |
| Maximum Number of SMB Connections (FSCT-Based) | 1500 |
