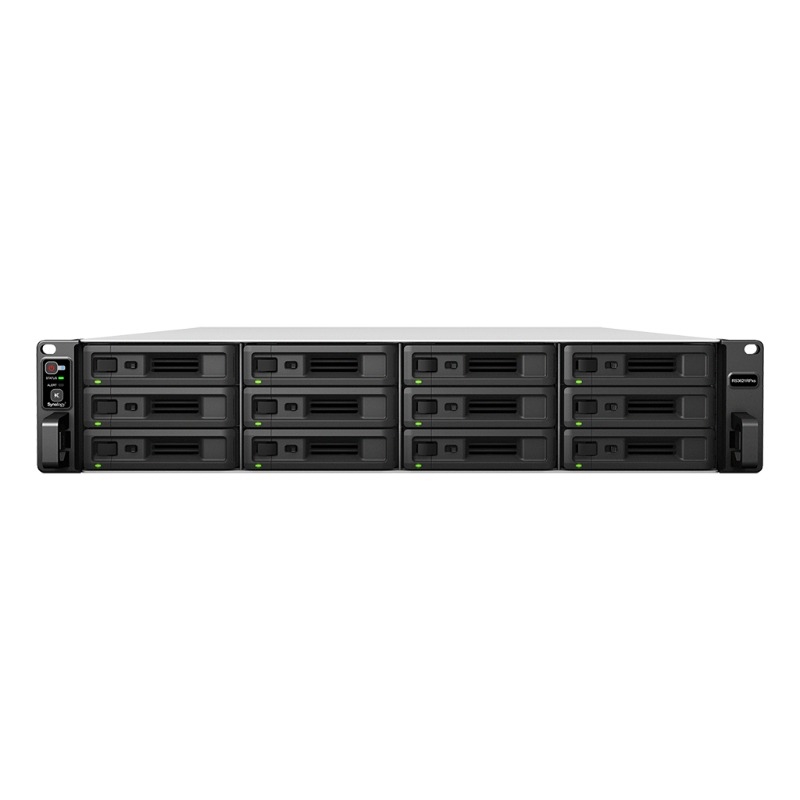

Synology RS3621RPxs RackStation 12-Bay Scalable Nas ( Rail Kit Optional ) Redundant Power (Use Synology Hdd Only) RS3621RPxs
Special Price $6,515.00 Regular Price $7,492.00
| SKU: | 307733 |
|---|---|
| MPN: | RS3621RPxs Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology RackStation RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive servies while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB.s sequential read throughput, it is ideal for small business and iis backed iwth 5 -year limited warrranty.
Specification:
•CPU Frequency: Intel XeonD 6-core 2.7GHz
•Floating Point
•Memory: DDR4 8GB ECC RAM(Expandable, up to 64GB
•Internal HDD/SSD: 3.5" or 2.5" SATA 6Gb/s x12, (Hard drive not included)
200TB(32GB RAM required, for RAID 5 or RAID 6 groups only
•Hot Swappable HDD
•External HDD Interface:USB 3.0 X 2, Expansion Port x2
•Size (HxWxD): 88x482x724mm
•Weight: 14.5Kg
•LAN: Gigabit x4 supports 2Xoptional dual-port 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
â€
Specification:
•CPU Frequency: Intel XeonD 6-core 2.7GHz
•Floating Point
•Memory: DDR4 8GB ECC RAM(Expandable, up to 64GB
•Internal HDD/SSD: 3.5" or 2.5" SATA 6Gb/s x12, (Hard drive not included)
200TB(32GB RAM required, for RAID 5 or RAID 6 groups only
•Hot Swappable HDD
•External HDD Interface:USB 3.0 X 2, Expansion Port x2
•Size (HxWxD): 88x482x724mm
•Weight: 14.5Kg
•LAN: Gigabit x4 supports 2Xoptional dual-port 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
â€
Specifications
▼
| SKU | RS3621RPxs |
|---|---|
| UPC | 846504004065 |
| ASIN | B08TWJVWDX |
| Brand | Synology |
| Color | Black |
| Model | RS3621RPxs |
| Series | RackStation / XS |
| Cooling | 4 x 80 mm fans (hot-swappable) |
| Category | Storage |
| Diskless | Yes (enclosure only by default) |
| Warranty | Limited 5-year hardware warranty |
| Processor | Intel Xeon D-1531 |
| USB Ports | 2 x USB 3.0 (USB 3.2 Gen 1) |
| DIMM Slots | 4 |
| Drive Bays | 12 |
| Description | The Synology RackStation RS3621RPxs is a business-grade 12-bay, 2U rackmount NAS enclosure (diskless) engineered for high throughput and robust data protection. Powered by an Intel Xeon D-1531 6-core processor (2.2 GHz, turbo up to 2.7 GHz) and 8 GB DDR4 ECC memory (expandable to 64 GB), the RS3621RPxs supports compute-intensive services and mission-critical workloads. It features dual redundant 500 W hot-swappable power supplies, 4 x 1 GbE ports (with link aggregation/failover), 2 PCIe Gen3 expansion slots for 10GbE NICs or M.2 NVMe cache adapters, and 2 x USB 3.0 ports. The system runs Synology DiskStation Manager (DSM) with the Btrfs file system and supports RAID 0/1/5/6/10, Basic, JBOD and Synology RAID F1. Delivering up to 189,098 4K random read IOPS and up to 4,718 MB/s sequential read throughput (with appropriate networking), it can scale to up to 36 drive bays using two RX1217(RP) expansion units. Includes accessory pack and two AC power cords; backed by a 5-year limited hardware warranty. |
| File System | Btrfs (next-generation file system) |
| Form Factor | 2U rackmount |
| Memory Type | DDR4 ECC |
| Noise Level | 50.2 dBA (reported) |
| Power Input | 100-240 VAC, 50/60 Hz |
| Rack Height | 2U |
| Key Features | High throughput: up to 4,718 MB/s sequential read (with appropriate networking) Up to 189,098 4K random read IOPS (with appropriate networking and configuration) ECC memory Dual redundant 500 W hot-swappable power supplies M.2 NVMe SSD cache support via Synology adapter (per compatibility list) Synology High Availability (SHA) support License-free backup solutions (Hyper Backup, Snapshot Replication, Active Backup Suite) Surveillance Station support (up to 75 IP cameras) AES 256-bit encryption |
| Manufacturer | Synology, Inc. |
| Power Supply | 2 x 500 W (redundant) |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 14.5 kg / 32.0 lb |
| Product Title | Synology RackStation RS3621RPxs 12-Bay 2U Rackmount NAS (Diskless) |
| Drive Bay Type | Hot-swappable 3.5" / 2.5" SATA (12 bays) |
| PCIe Expansion | 2 x PCIe Gen 3.0 slots (for 10GbE NICs or M.2 NVMe cache adapters) |
| Processor Cores | 6 (hexa-core) |
| Processor Speed | 2.2 GHz (turbo up to 2.7 GHz) |
| Additional Notes | Performance figures obtained by Synology with 10GbE NICs installed; actual results vary by configuration and environment. Only drives listed on Synology's compatibility list are supported for storage pools and SSD cache. |
| Country of Origin | Taiwan |
| Dimensions (HxWxD) | Inches: 3.5 x 19 x 28.5 in Millimeters: 88 x 482 x 724 mm |
| Memory (Installed) | 8 GB DDR4 ECC |
| Network Interfaces | 4 x RJ45 Gigabit Ethernet (1 GbE); supports link aggregation and failover; 10GbE via PCIe NIC |
| Included Accessories | Accessory pack 2 x AC power cords Documentation / Quick Installation Guide |
| Memory Expandable To | 64 GB (4 DIMM slots) |
| RAID Levels Supported | RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 Basic JBOD Synology RAID F1 |
| Supported Drive Types | 3.5" SATA, 2.5" SATA, SSD (per Synology compatibility list) |
| Manufacturer Part Number | RS3621RPXS |
| Shipping / Package Weight | Approx. 43 lb (varies by pack) |
| Certifications / Compliance | FCC RoHS UL VCCI BSMI CCC EAC KC RCM |
| Operating System / Software | Synology DiskStation Manager (DSM) |
| Power Consumption (Standby) | 65.94 W (standby) [per manufacturer testing] |
| Power Consumption (Typical) | 40.01 W (typical) [per manufacturer testing] |
| Maximum Expandable Drive Bays | Up to 36 drives with two RX1217(RP) expansion units |
