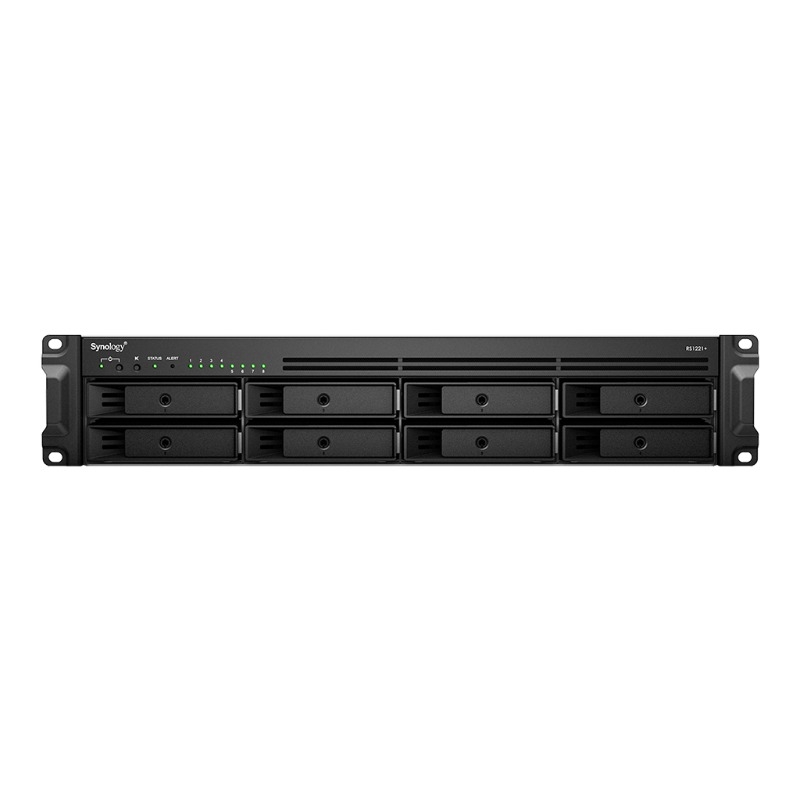

Synology RS1221RP+ RackStation 8-Bay Scalable Nas ( Rail Kit Optional ) Redundant Power RS1221RP+
Special Price $3,242.00 Regular Price $3,728.00
| SKU: | 365561 |
|---|---|
| MPN: | RS1221RP+ Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology RackStation RS1221RP+ is a powerful 2U 8-bay rackmount network-attached storage solution, perfect for centralizing data management in short rack-depth environments. The RS1221RP+ series is ideal at handling heavy file workloads and protecting digital assets in small business enivronments through the comprehensive data protection options included in the DSM operation system.
Specification:
•CPU Frequency: AMD Ryzen V1500B quad-core 2.2GHz
•Floating Point
•Memory: DDR4 4GB ECC SODIMM(Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA HDD/SSD x8,(drives not included )
•Hot Swappable HDD
•External HDD Interface: USB 3.0 Port X 2
•Size (HxWxD): 88x430.5x297.6mm
•Weight: 8.4Kg
•LAN: Gigabit x4 supports optional 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
•Easy Replacement System Fan
•Wireless Support (dongle)
•Noise Leve
Specification:
•CPU Frequency: AMD Ryzen V1500B quad-core 2.2GHz
•Floating Point
•Memory: DDR4 4GB ECC SODIMM(Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA HDD/SSD x8,(drives not included )
•Hot Swappable HDD
•External HDD Interface: USB 3.0 Port X 2
•Size (HxWxD): 88x430.5x297.6mm
•Weight: 8.4Kg
•LAN: Gigabit x4 supports optional 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
•Easy Replacement System Fan
•Wireless Support (dongle)
•Noise Leve
Specifications
▼
| Brand | Synology |
|---|---|
| Model | RS1221RP+ |
| Notes | Diskless unless otherwise specified by seller. Some resellers offer factory-installed memory or drive bundles (e.g., upgraded RAM or populated HDD configurations). Software features and performance figures are manufacturer-quoted and subject to change; refer to Synology documentation for firmware/DSM updates and compatibility. |
| Weight | Approximately 11.7 kg / 25.79 lb (diskless) |
| Features | ECC memory; Btrfs snapshots and data protection; SSD cache support (NVMe/SATA) for improved IOPS; Synology High Availability (SHA); iSCSI support; Virtual Machine Manager; Hyper Backup; Snapshot Replication; Surveillance Station; AES-256 encryption; 2-factor authentication; additional Synology DSM apps and utilities |
| Humidity | 5% to 95% R.H. |
| Processor | AMD Ryzen Embedded V1500B |
| Drive Bays | 8 |
| Max Memory | Up to 32 GB DDR4 ECC (2 x 16 GB) |
| Description | The Synology RackStation RS1221RP+ is an 8-bay, 2U rackmount NAS designed for space-sensitive deployments and business environments that require redundancy and high availability. Powered by an AMD Ryzen Embedded V1500B quad-core 2.2 GHz CPU and shipping with 4 GB DDR4 ECC memory (expandable to 32 GB), the RS1221RP+ delivers up to 2,315 MB/s sequential read and 1,147 MB/s sequential write performance with over 100K 4K random read IOPS. Features include redundant power supplies, ECC memory, Btrfs and EXT4 file-system support, SSD cache support, PCIe expansion for 10GbE networking, Synology DSM software (DSM 7.3 series supported), and Synology High Availability for minute-level failover. Expandable with RX418 expansion units to add extra drive bays, the unit supports a range of RAID levels (RAID 0, 1, 5, 6, 10, JBOD) and hot-spare configurations. |
| Form Factor | 2U Rackmount (short-depth rack compatible) |
| Identifiers | MPN: RS1221RP+ UPC: 0846504003693 Manufacturer: Synology Inc. |
| Memory Type | DDR4 ECC SODIMM |
| RAID Levels | RAID 0, 1, 5, 6, 10, JBOD; supports hot-spare configurations |
| File Systems | Btrfs, EXT4 |
| Power Supply | Redundant power supplies (dual); AC 100-240 V, 50/60 Hz |
| Product Line | RackStation |
| Product Type | Rackmount NAS / SAN-NAS Storage System |
| Power Details | Redundant power supply support; dual 350W PSUs referenced in product materials |
| Product Title | Synology RackStation RS1221RP+ 8-Bay 2U Rackmount NAS (Ryzen V1500B, 4GB DDR4 ECC, Redundant PSUs) |
| Drive Interface | SATA 6Gb/s |
| Additional Ports | 2 x USB 3.x, 1 x eSATA |
| Installed Memory | 4 GB DDR4 ECC (single SODIMM) |
| Operating System | Synology DSM (DSM 7.3 series supported; DSM 7.3.2 available) |
| Expansion Options | Supports RX418 expansion unit to add 4 additional drive bays (expandable to 12 bays total); PCIe slot for networking or performance expansion |
| Dimensions (WxHxD) | 482 x 88 x 407.5 mm (19 x 3.5 x 16 in) |
| Network Interfaces | 4 x RJ-45 1GbE (supports Link Aggregation/Failover); PCIe slot for optional 10GbE (SFP+ or RJ-45) expansion |
| Storage Controller | SATA 6Gb/s RAID controller |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Performance (Quoted) | Up to 2,315 MB/s sequential read, up to 1,147 MB/s sequential write; >100K 4K random read IOPS / ~54K 4K random write IOPS |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Supported Drive Types | 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD |
| Manufacturer Part Number | RS1221RP+ |
| Typical Package Contents | Main unit and accessory pack (quick installation guide; power cable(s) and mounting accessories vary by seller) |
| Processor Cores and Speed | Quad-core, 2.2 GHz |
