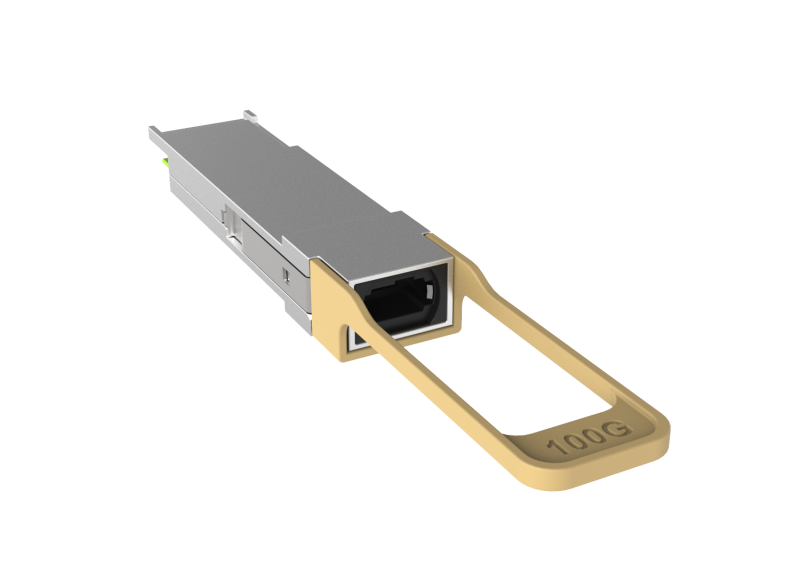

This is a Four-Channel, Pluggable, Fibre-Optic QSFP28 SR4 for 100Gigabit Ethernet and Infiniband EDR applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates four data lanes in each direction with 103.1Gbps bandwidth. The length of MNC QSFP28 SR4 is up to 70 metres over OM3 MMF or 100 metres over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fibre MPO connector.

FEATURES
Hot-pluggable QSFP28 form factor
Supports 25.78125Gb/s bit rate per channel
Maximum link length of 70m over OM3 Multimode Fibre (MMF) and 100m over OM4 (MMF）
4 channels 850nm VCSEL laser and 4 channels PIN photo detector array
Single MPO connector receptacle
Internal CDR circuits on both receiver and transmitter channels
Case operating temperature range: 0 ~ +70°C
Single 3.3V power supply
Power dissipation: <2.5 W
QSFP28 housing with enhanced EMI shielding
APPLICATIONS
Data centre and Cloud services
100GBASE-SR4 Ethernet
Infiniband EDR interconnects
Servers, Switches, Storage and Host Card Adapters
STANDARDS
Compliant with QSFP28 MSA
Compliant with IEEE 802.3bm
Compliant with SFF-8636
RoHS Compliant
WARRANTY

2-years limited warranty

TAA-approved SFPs available upon request, Contact us for more details.
