SKU	MBP3KI
Type	HotSwap Maintenance Bypass Panel (MBP)
Brand	Eaton
Color	Black
Model	MBP3KI
Phase	Single-phase
Weight	1.9 kg
Outputs	{ "Quantity": 6, "Outlet Type": "IEC C13" } { "Quantity": 1, "Outlet Type": "IEC C19" }
Category	Power and Rack Equipment
Features	Enables hot-swap of UPS for maintenance without interrupting protected loads Adds high availability to UPS systems up to 3,000 VA Easy plug-in IEC connectivity Versatile mounting options
VA Rating	3000 VA
Rack Units	2U

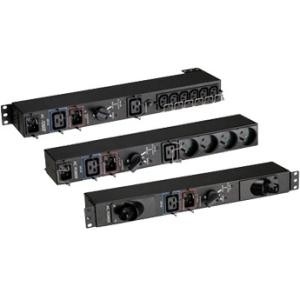

Description	The Eaton HotSwap MBP3KI maintenance bypass panel enables hot-swapping of a UPS without interrupting power to protected equipment. Designed for compatibility with UPS systems up to 3,000 VA, it offers versatile mounting options (rackmount, wall-mount or rear-mount to compatible Eaton UPS units) and easy plug-in IEC connectivity (input: C20; outputs: 6×C13 and 1×C19). The compact black chassis includes LED indication and a rack-ready design for 19" enclosures. Package includes maintenance bypass unit, cable locking system, connection cable to the UPS, rack-mounting kit and user manual.
Fitted With	LED indication
Form Factor	2U
Part Numbers	EAN: 3553340684227 MPN: MBP3KI Manufacturer Number: MBP3KI Alternate Part Number: FEMBP3KI
Sub-Category	Power Equipment
Input Voltage	200 - 240 V
Product Title	Eaton HotSwap MBP3KI Maintenance Bypass Panel, 3000 VA, IEC (6×C13, 1×C19) - C20 Input
Rack Mounting	Yes (19" rack compatible)
Input Connection	IEC C20 (socket)
Mounting Options	Rack-mounted Wall-mounted Rear-mount on compatible Eaton UPS (front- or rear-facing, left or right side)
Package Contents	Maintenance bypass unit Cable locking system Connection cable to the UPS Rack-mounting kit User manual
Dimensions (HxWxD)	Depth: 76.5 mm Width: 439 mm Height: 50 mm
Mounting Direction	Horizontal / Vertical
Compatibility / Notes	Adds high availability to UPSs up to 3,000 VA; can be rack-mounted, wall-mounted or connected at the rear of an Eaton UPS (can be mounted front-facing or rear-facing, left or right side for versatility).
Electrical Connection	Socket outlet (IEC)
Number of Outputs C13	6
Number of Outputs C19	1
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Over Voltage Category	Category 2
Certifications / Compliance	CE
Mounting Dimension (standardized)	482.6 mm (19 inch)
Communication / Management Interfaces	SNMP: No Serial: No Ethernet: No

Eaton (MBP3KI/M68433) Eaton HotSwap Maintenance Bypass, C20 input, 1 x C19 outlet, 6 x C13 outlets is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW90461. Order online for Australia-wide delivery with local support.
