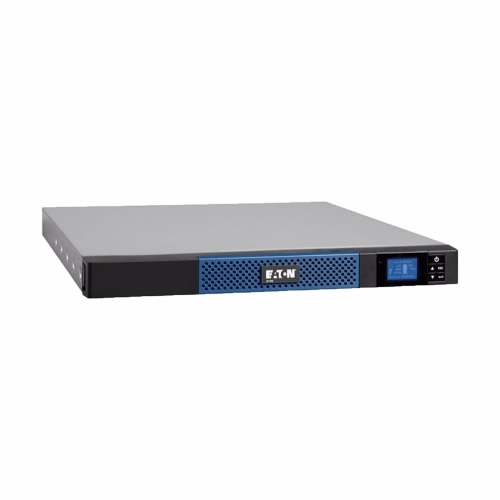

    main product photo

    Eaton 5P Lithium Ion Model 1550VA / 1100W 1U Rackmount UPS With LCD 5P1550GR-L

    Special Price $2,267.00 Regular Price $2,607.00
    SKU:289576
    MPN:5P1550GR-L Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

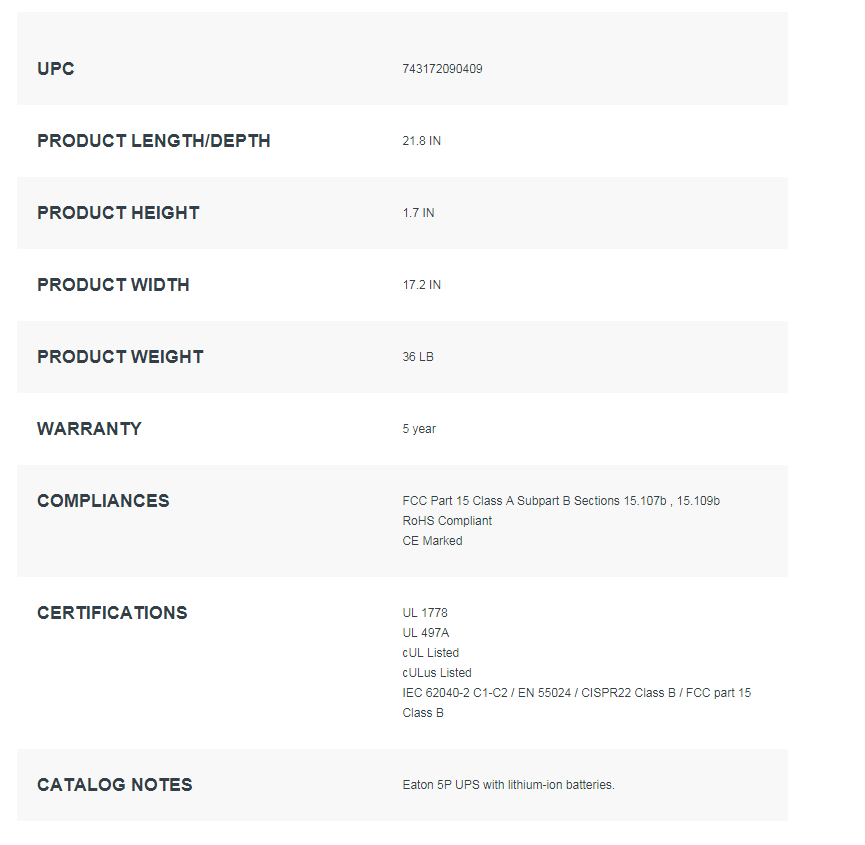

    Eaton 5P Lithium Ion Model 1550VA / 1100W 1U Rackmount UPS with LCD
    LCDFive-button graphical LCD (auto-dims backlight/screen saver)
    MPN5P1550GR-L
    SKU5P1550GR-L
    UPC743172090409
    BrandEaton
    ColorBlack (accent/secondary: Blue reported)
    Model5P1550GR-L
    Weight36 lb (16.33 kg)
    TopologyLine-interactive
    WarrantyLimited warranty - 5 years
    EfficiencyApproximately 98–99% (reported)
    Rack Units1U
    DescriptionEaton 5P1550GR-L is a 1U rackmount/ wall-mount line-interactive UPS delivering 1.55 kVA / 1.1 kW with true sine wave output and maintenance-free lithium-ion batteries. Designed for network closets and small data centers, it provides 6 IEC C13 outlets (grouped into two load banks), a single IEC C14 input, on-board five-button graphical LCD, RS-232 and USB management ports, Eaton Intelligent Power management software compatibility, and an optional NETWORK-M2 gigabit network card for remote monitoring and secure firmware updates. Typical runtimes are about 11 minutes at half load and 4 minutes at full load. Units include a 4-post rail kit, IEC-to-IEC output jumper cables, USB and RS-232 cables, quick start guide and output cable locking system. Eaton reports long battery service life (up to ~8 years), a fast recharge (6–8 hours), high efficiency (~98–99%) and a 5-year limited manufacturer warranty.
    Form FactorRack-mountable / Wall-mountable (1U)
    ManufacturerEaton
    Product TypeLine-interactive UPS
    Product TitleEaton 5P1550GR-L 1U Rackmount UPS, 1550 VA / 1100 W, Lithium-ion
    Sound Emission45 dB (reported)
    Input Connector1 x Power IEC 60320 C14
    Additional NotesOptional Environmental Monitoring Probe (EMPDT1H1C2) available separately NETWORK-M2 card sold separately
    Output Frequency50/60 Hz
    Output Connectors6 x Power IEC 60320 C13 (3 outlets per load bank)
    Battery TechnologyLithium-ion
    Dimensions (HxWxD)1.7 x 17.2 x 21.8 in (43 x 437 x 554 mm)
    Operating Humidity0% - 90% (non-condensing)
    Power Capacity (W)1100 W
    Input Voltage Range160–294 V (adjustable to 150–294 V)
    Management SoftwareEaton Intelligent Power Manager (supported)
    Power Capacity (VA)1550 VA
    Runtime (Full Load)Approximately 4 minutes
    Runtime (Half Load)Approximately 11 minutes
    Battery Service LifeUp to ~8 years (reported)
    Battery Recharge Time6 - 8 hours (reported)
    Features / HighlightsTrue sine wave output Maintenance-free lithium-ion battery modules Battery management system (BMS) for monitoring cycles and temperature Optional network card for remote management and secure firmware updates Energy metering and high efficiency Rack and wall mount capable
    Operating Temperature0 °C to 40 °C (32 °F to 104 °F) (reported)
    Output Voltage Margin+6% / -10%
    Product Line / Series5P
    Interfaces / ManagementRS-232 (RJ-45), USB (Type B HID), EPO
    Output Voltage (default)230 V
    Remote Management OptionNETWORK-M2 gigabit network card (sold separately) - supports secure remote management (meets UL 2900-1 and IEC 62443-4-2 standards)
    Certifications & ComplianceUL 1778 UL 497A cULus IEC 62040-2 CISPR 22 / EN55024 (Class B) FCC Part 15 (Class B) RoHS CE Mark
    Output Voltage (selectable)200 / 208 / 220 / 230 / 240 V
    Country of Origin (reported)China Philippines
    Outlet Groups / Load SheddingTwo load banks (3 outlets each) for load shedding
    Included Accessories / Package ContentsUPS unit Quick start guide USB cable RS-232 serial cable 4-post rail kit 2 x IEC-to-IEC jumper cables Output cable locking system Input cable locking system (reported)
    Eaton 5P Lithium Ion Model 1550VA / 1100W 1U Rackmount UPS with LCD
