MPN	9SX1000I-AU
SKU	9SX1000I-AU
GTIN	743172091086
Type	Dual Conversion Online UPS (On-line)
Brand	Eaton
Model	9SX1000I-AU
Weight	14.8 kg
Battery	Internal, hot-swappable batteries
Display	Multilingual graphical LCD display; LED indicators
Outlets	4 x Australian 10A outlets
Wattage	900 W
Features	Zero transfer time to battery Internal automatic static bypass Selectable high-efficiency mode Programmable/switchable outlets/load groups EBM connector for external battery modules Fan-cooled High power density (vendor claims up to 28% more wattage vs traditional UPS)
Topology	Double-conversion (online)
Warranty	24 months (2 years) manufacturer's warranty
VA Rating	1000 VA

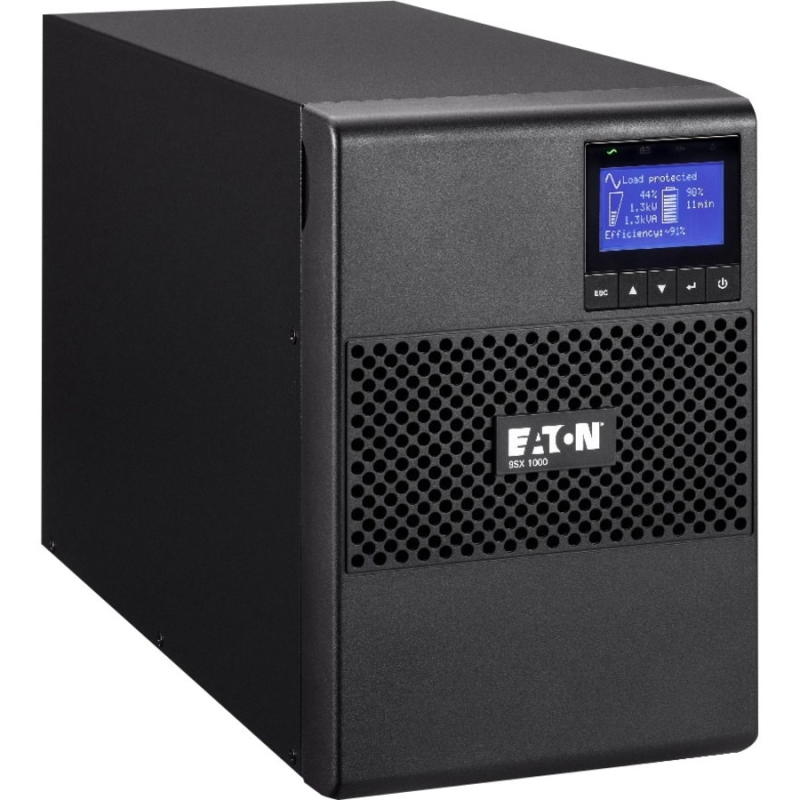

Description	The Eaton 9SX1000I-AU is a compact, high-efficiency dual-conversion (online) UPS delivering 1000 VA / 900 W of protected power for servers, storage, network equipment, medical and industrial applications. Designed in a tower form factor with rack-convertible options, the 9SX provides continuous, pure sine wave output with zero transfer time, internal static bypass and advanced battery management (ABM) for extended battery life. The unit includes an easy-to-read multilingual graphical LCD, hot-swappable internal batteries, selectable high-efficiency mode, programmable outlets and comprehensive communications (USB, RS-232, relay/RPO and optional network/SNMP/Modbus cards) for remote monitoring and integration.
Form Factor	Tower (rack-convertible / rack-ready option)
Power Factor	PFC (power factor correction)
Power Rating	1.0 kVA / 900 W
Product Code	6134408121
Product Title	Eaton 9SX 1000VA (900W) Dual-Conversion Online UPS - 9SX1000I-AU
Output Voltage	230 VAC ±2%
Input Connector	IEC C14 (as listed)
Output Waveform	Pure sine wave
Additional Notes	Multiple vendor datasheets reference compatibility with tower and rack configurations, generator compatibility, and advanced integration options for IT and industrial environments.
Battery Features	ABM advanced battery management (increases battery life), built-in battery, hot-swappable capability
Output Frequency	50/60 Hz ±0.1%
Communication Ports	USB RS-232 (serial) Mini-terminal block for Remote Power Off (RPO) Terminal block for output relay
Input Voltage Range	170 - 276 VAC (wide range)
Typical Backup Time	Approximately 3-7 minutes depending on load (manufacturer guidance)
Included Accessories	UPS unit 2 x IEC-IEC output cables USB cable Serial (RS-232) cable Safety instructions Quickstart guide
Network & Management	Optional network/SNMP card slot (Network Card/MS slot) Modbus support Relay outputs Remote Power Off (RPO/ROO) Firmware upgradeable
Dimensions (H x W x D)	252 x 160 x 387 mm
Input Voltage (nominal)	230 V / 240 V (variant dependent)
Supported Input Voltages	200 / 208 / 220 / 230 / 240 VAC (nominal)
Part Number / Supplier Part No	9103-53898
Rated Output Power (alternate)	1.10 kVA / 900 W (listed by some sources)

Eaton Eaton 9SX 1000VA/900W On Line Tower UPS, 240V is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW86361. Order online for Australia-wide delivery with local support.
