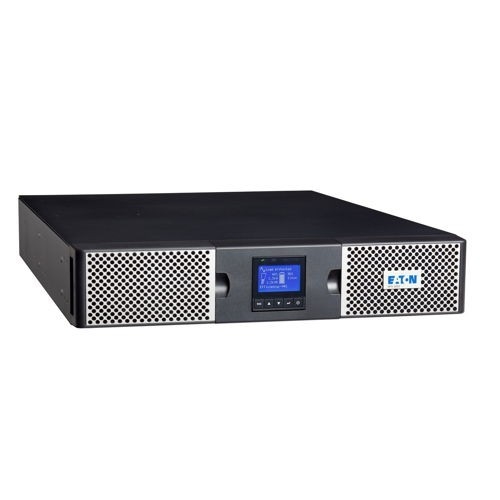

    Eaton 9PX 2200VA 2U Rack/Tower, 16Amp Input, 230V (Rail Kit Included) 9PX2200IRT2UANZ

    Special Price $3,982.00 Regular Price $4,579.00
    SKU:261608
    MPN:9PX2200IRT2UANZ Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    Eaton 9PX 2200VA 2U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)
    SKU9PX2200IRT2UANZ
    kVA2.2
    BrandEaton
    Model9PX
    Weight25.02 kg
    Altitude<1000 m for nominal power; 10% power degradation every 1000 m up to 3000 m
    FeaturesOnline/double-conversion topology for continuous power conditioning Unity power factor (1.0) Multilingual graphical LCD with energy consumption analytics and load segment control Optional communication/network cards and external battery packs Designed for virtualized and IT environments
    TopologyOnline / Double-conversion
    WarrantyElectronics: 3 years; Battery: 2 years (per listings)
    DescriptionHigh-efficiency Eaton 9PX online double-conversion UPS delivering 2.2 kVA / 2.2 kW of protected power in a 2U rack/tower form factor. Provides sine-wave output with unity power factor, 8 x IEC C13 and 2 x IEC C19 outlets, hot-swappable sealed lead‑acid battery, and support for optional external battery packs for extended runtime. Built-in multilingual graphical LCD for local status, plus USB, RS232 and mini-terminal block ports and an expansion slot for optional network/management cards. Ideal for protecting servers, storage and network equipment with advanced power management via Eaton Intelligent Power Manager and Intelligent Power Protector.
    Form Factor2U Rack/Tower (Rack/Tower convertible)
    Noise Level<40 dB at 1 m
    Part Number9PX2200IRT2UANZ
    Battery TypeSealed lead-acid (VRLA)
    Product TitleEaton 9PX 2200VA/2200W 2U Rack/Tower Online UPS (9PX2200IRT2UANZ)
    Hot Swap PowerNo (UPS supports hot-swappable batteries)
    Output Outlets8 x IEC 60320 C13, 2 x IEC 60320 C19
    Power Rating W2200 W
    User InterfaceMultilingual graphical LCD display (status, configuration, diagnostics, energy consumption/load segment control)
    Input ConnectorListed as 1 x IEC C20 (some listings show IEC C14)
    Internal BypassYes
    Power Rating VA2200 VA
    Output Frequency50/60 Hz
    Rail Kit IncludedYes (per product listing)
    Relative Humidity0-96% non-condensing
    Compatible SoftwareEaton Intelligent Power Manager Eaton Intelligent Power Protector
    Input Voltage Range176-276 VAC without derating; up to 100-276 VAC with derating
    Output Power Factor1.0
    Phase (Input/Output)Single-phase
    Battery Hot-swappableYes
    Input Frequency Range40-70 Hz
    Input Nominal Voltage240 V
    Operating Temperature0° to 40° C (32° to 104° F)
    Auto Shutdown FunctionYes
    Dimensions (H x D x W)86.5 x 440 x 605 mm
    Output Voltage Nominal240 V
    Notes / Source VariationsInput connector is listed as IEC C20 on some listings and IEC C14 on others; some listings reference 120/230 V AC input options or lithium-ion battery models in the series. Values above are consolidated from multiple product listings for Eaton 9PX2200IRT2UANZ.
    Communications / Management1 x USB port, 1 x RS232 serial port, mini-terminal blocks for Remote ON/OFF, Remote Power Off and output relay; expansion slot for optional communication/network card; compatible with Eaton Intelligent Power Manager and Eaton Intelligent Power Protector software
    Extended Battery CapabilityYes (optional external battery packs supported)
    Certifications / CompliancesRCM, CE Marked, CB; IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, IEC 61000-4
    Output Voltage Range / NotesOutput sine wave; output nominal 240 V
    Battery Technology / FeaturesABM battery management technology (extends battery service life), extended-runtime capable
    Energy Efficiency / CertificationsENERGY STAR qualification referenced in some listings
