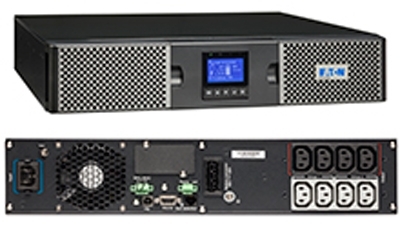

Eaton 9PX 1500VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included) Includes Australian Cables 9PX1500IRT2UANZ
Special Price $2,968.00 Regular Price $3,414.00
| SKU: | 254572 |
|---|---|
| MPN: | 9PX1500IRT2UANZ Link |
| Manufacturer: | https://www.eaton.com |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Eaton 9PX 1500VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included) INCLUDES AUSTRALIAN CABLES
Specifications
▼
| SKU | 9PX1500IRT2UANZ |
|---|---|
| Brand | Eaton |
| Model | 9PX1500IRT2UANZ |
| Weight | 18.9 kg |
| Altitude | <1000 m for nominal power; 10% power degradation every 1000 m (up to 3000 m) |
| Category | Power and Rack Equipment |
| Topology | Online / Double-conversion |
| Capacity_W | 1500 W |
| Dimensions | Depth: 440 mm Width: 450 mm Height: 86.5 mm Rack_Width: 482.6 mm (20 inch) device |
| Capacity_VA | 1500 VA |
| Description | Eaton 9PX 1500VA / 1500W online double-conversion UPS in a 2U rack/tower form factor. Provides sine-wave output at 240 V nominal with a power factor of 1.0 and eight IEC C13 output receptacles. Built-in, hot-swappable sealed lead-acid battery with extended battery capability and an optional communication card slot. Features a multilingual graphical LCD, internal bypass, automatic shutdown, and compatibility with Eaton Intelligent Power Manager and Eaton Intelligent Power Protector software. Suitable for single-phase input/output environments and rated for 50/60 Hz operation. |
| Input_Phase | Single-phase |
| Noise_Level | <35 dB at 1 meter |
| Battery_Type | Sealed lead-acid |
| Output_Phase | Single-phase |
| Sub-Category | Power Equipment |
| Auto_Shutdown | true |
| Product Title | Eaton 9PX 1500VA (1500W) Online Double-Conversion Rack/Tower UPS (2U) - 240V |
| Catalog Number | 9PX1500IRT2UANZ |
| Hot_Swap_Power | false |
| User_Interface | Multilingual graphical LCD display |
| Expansion_Slots | 1 (for optional communication card) |
| Input_Connector | IEC C14 |
| Internal_Bypass | true |
| Output_Waveform | Sine wave |
| Built_in_Battery | true |
| Output_Frequency | 50/60 Hz |
| Construction_Type | 2U rack/tower device |
| Relative_Humidity | 0-96% non-condensing |
| Output_Receptacles | IEC C13 x 8 |
| Input_Voltage_Range | 176-276 VAC without derating (up to 100-276 VAC with derating) |
| Output_Power_Factor | 1 |
| Battery_Hot_Swappable | true |
| Included_Network_Card | false |
| Input_Frequency_Range | 40-70 Hz |
| Input_Nominal_Voltage | 240 V |
| Operating_Temperature | 0° to 40°C (32° to 104°F) |
| Output_Nominal_Voltage | 240 V |
| Software_Compatibility | Eaton Intelligent Power Manager Eaton Intelligent Power Protector |
| Extended_Battery_Capability | true |
| Certifications_and_Compliance | Compliances: [ "CB", "CE Marked", "RCM" ] Certifications: [ "IEC 61000-4", "IEC/EN 62040-2", "IEC/EN 62040-1", "EN 62040-3" ] |
Vendor Info
▼
Eaton 9PX 1500VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included) INCLUDES AUSTRALIAN CABLES
