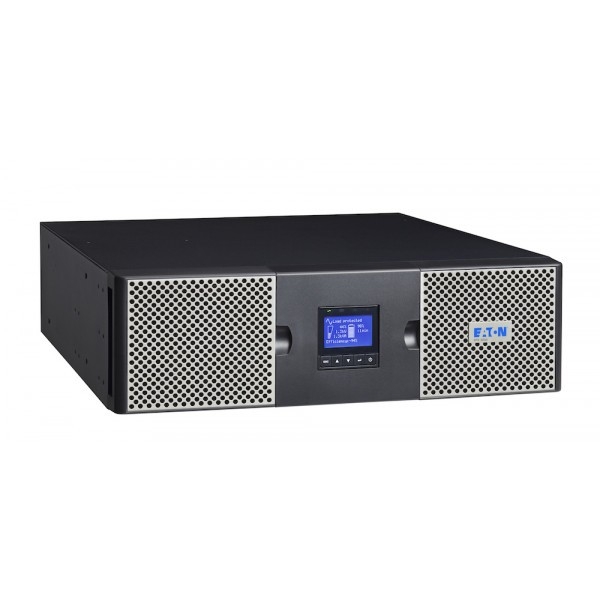

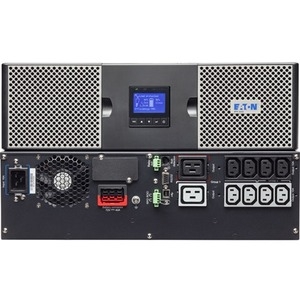

    main product photo

    Eaton 9PX 2200VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included) 9PX2200IRT3UANZ

    $4,042.00
    SKU:258763
    MPN:9PX2200IRT3UANZ Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Eaton 9PX 2200VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included) *
    SKU9PX2200IRT3UANZ
    UPC743172081377
    BrandEaton
    ColorBlack / Silver
    Model9PX2200IRT3U
    Weight24.52 kg
    Wattage2200 W
    AltitudeOperable to 3000 m; nominal power specified at <1000 m with approximately 10% power degradation every additional 1000 m up to 3000 m
    CategoryPower and Rack Equipment > Power Equipment
    TopologyOnline / Double-conversion
    BatteriesSealed lead-acid, 6 x 12 V / 7 Ah; hot-swappable internal batteries; extended battery capability (supports EBMs)
    VA rating2200 VA
    DescriptionEaton 9PX 2200VA / 2200W online double-conversion UPS in a 3U rack/tower form factor. Provides unity power factor (VA = W), high-efficiency power protection and hot-swappable sealed lead-acid batteries (6 x 12V/7Ah) with support for external battery modules (EBMs). Features multilingual graphical LCD, internal bypass, advanced battery management (ABM), comprehensive communications (USB HID, RS232, dry contacts, mini terminal blocks), one expansion slot for optional communication cards, and multiple IEC output receptacles (8 x C13, 2 x C19). Rack mounting kit and full set of cabling and accessories included.
    Form FactorRack/tower, 3U (19" device)
    Noise level<40 dB at 1 meter
    ReceptaclesIEC C13 x 8, IEC C19 x 2
    Product TitleEaton 9PX 2200VA (2200W) 3U Rack/Tower UPS - 8x C13 & 2x C19 (SKU: 9PX2200IRT3UANZ)
    CommunicationsUSB (HID), Serial (RS232), Mini terminal blocks for remote On/Off and remote power off and output relay, Dry contacts (3 outputs, 1 input, optocoupler, DB9), Potential-free switch contact: Yes
    Expansion slotOne slot for optional communication card
    Hot swap powerNo
    User interfaceMultilingual graphical LCD display
    Internal bypassYes
    Output waveformSine wave
    Input connectionIEC C20
    Output frequency50/60 Hz
    Package contentsUPS, input cable, (2) IEC-IEC output cables, USB cable, serial cable, (2) brackets for 19" mounting, (2) supports for tower mounting, cable locking system, safety instructions, quickstart guide
    Special featuresUnity power factor (VA = W), meter energy consumption, advanced battery management, hot-swappable batteries, internal bypass, compatible with virtual environments (VMware, Hyper-V, Citrix Xen, RedHat)
    Construction type482.6 mm (19 inch) device
    Input cord length1.8 m
    Rack mounting kitYes (includes brackets and supports for 19" mounting)
    Relative humidity0-96% non-condensing
    Battery managementABM & temperature-compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of EBMs
    Ethernet interfaceNo (optional via comm card)
    Input power factor>.99
    Input voltage range176-276 V (100-276 V with derating)
    Output power factor1.0
    Output voltage range200/208/220/230/240 V ±1%
    Includes network cardNo
    Input frequency range40-70 Hz
    Input nominal voltage230V default (selectable 200/208/220/230/240V)
    Operating temperature0° to 40°C (32° to 104°F)
    Auto shutdown functionYes
    Dimensions (H x W x D)130 mm x 440 mm x 485 mm
    Output nominal voltage230V default (selectable 200/208/220/230/240V)
    Software compatibilityEaton Intelligent Power Manager, Eaton Intelligent Power Protector
    Certifications / CompliancesCE, cULus Listed, TUV, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B, EAC, ENERGY STAR, UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, RCM
    Efficiency (typical at max load)93%
    Eaton 9PX 2200VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)
