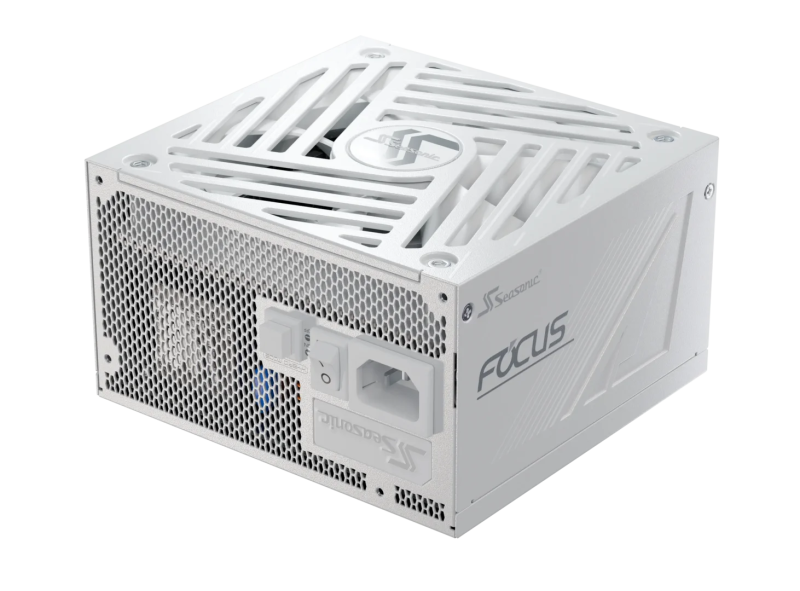

FOCUS GX White ATX 3
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX White Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2 × 6 cable, our new OptiSink technology and a stunning white finish. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.

SPECIFICATIONS

Platinum

Technical Specifications

80PLUS ®

Gold

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

ATX/EPS

Fan Information

Fan Size

135 mm

Fan Control

Digital Hybrid Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity

Fully Modular

Cable type

Individual White Cables with Braided Pattern

Electrical Features

Operating Temperature

0 - 50 °C

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OCP, OPP, OTP, OVP, SCP, UVP

Safety and Environmental

Safety and EMC

BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV

Environmental Compliance

Energy Star, ErP Lot 6, REACH, RoHS, WEEE

Warranty

10 Years

Power Output

AC Input

Voltage: 100 V - 240 V

Current: 13 - 6.5 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

25 A

25 A

83 A

0.3 A

3 A

125 W

996 W

3.6 W

15 W

Total continuous power

1000 W
