CORE GX ATX 3 (2024)

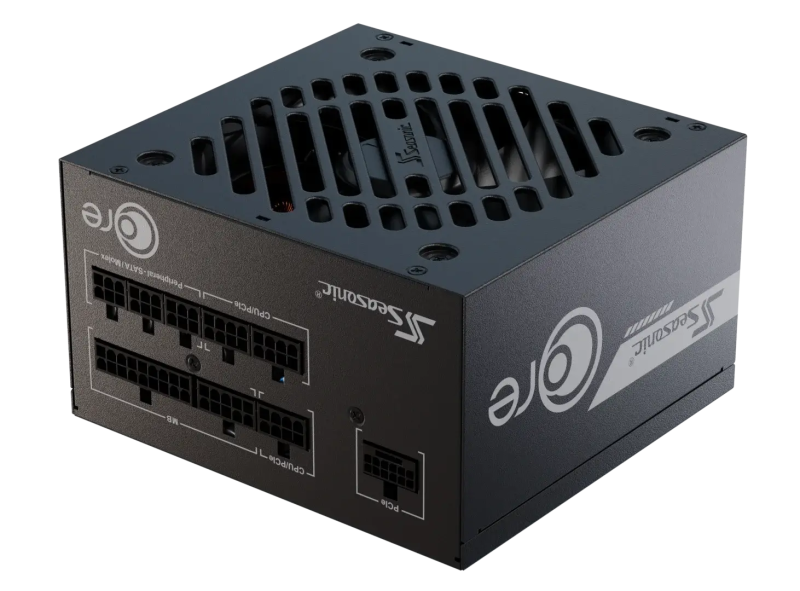

The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic's Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm fluid dynamic bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.

SPECIFICATIONS

Technical Specifications

80PLUS ®

Gold

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

ATX/EPS

Fan Information

Fan Size

120 mm

Fan Control

Smart and Silent Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

25,000 hours at 40 °C, 15 % – 65 % RH

Cable Information

Modularity

Fully Modular

Cable type

Individual Black Cables with Braided Pattern

Electrical Features

Operating Temperature

0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OCP, OTP, OVP, SCP, UVP

Safety and Environmental

Safety and EMC

BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA

Environmental Compliance

Energy Star, ErP Lot 6, REACH, RoHS, WEEE

Warranty

7 Years

Power Output

AC Input

Voltage: 100 V - 240 V

Current: 10 - 5 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

62 A

0.3 A

3 A

100 W

744 W

3.6 W

15 W

Total continuous power

750 W
