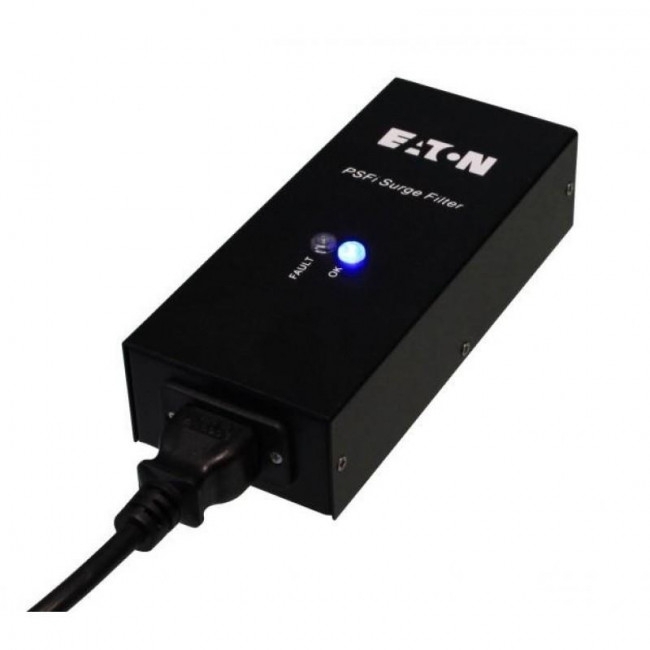

Eaton PSF10i - Professional Surge Filter, 10A, 40KA, IECs PSF10i
$277.00
| SKU: | 168725 |
|---|---|
| MPN: | PSF10i Link |
| Manufacturer: | https://www.eaton.com |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
PROFESSIONAL SURGE FILTER, 10A, 40KA, IEC
Input cord not included. IEC-IEC Output cord included, IEC socket retention clips included
Input cord not included. IEC-IEC Output cord included, IEC socket retention clips included
Specifications
▼
| SKU | PSF10i |
|---|---|
| Brand | Eaton |
| Model | PSF10I |
| Housing | Painted metal enclosure |
| Category | Power and Rack Equipment |
| Warranty | 12-month manufacturer warranty |
| IP Rating | IP24 |
| Indicators | Protection-fail indicators |
| Protection | 3-stage, 3-mode (primary & secondary MOVs + L/C filter) |
| Weight (g) | 500 |
| Description | The Eaton PSF10I is a compact 10 A IEC surge protector and inline power filter designed for domestic, SOHO and light industrial environments. It provides 3-stage, 3-mode surge protection using high-kA primary and secondary MOVs plus an L/C filter, and reduces line harmonics and high-frequency noise (cut-off ~10 kHz, nominal attenuation ~40 dB). Housed in a painted metal enclosure (IP24), the unit includes protection-fail indicators and is suitable as a UPS pre-filter. IEC-to-IEC output lead and IEC socket retention clips are supplied; input mains cable (3-pin plug to IEC) is not included. |
| Filter Type | L/C EMI/RFI filter |
| Manufacturer | Eaton Corporation |
| Product Type | Surge Suppressor / Inline Power Filter |
| Sub-Category | Power Equipment |
| Input Voltage | 230 V AC |
| Product Title | Eaton PSF10I 10A Professional Surge Filter (IEC, 230 VAC) |
| Rated Current | 10 A |
| In/Out Sockets | IEC (10 A) input and output sockets |
| Recommended Use | UPS pre-filter / protection for UPS and connected IT equipment |
| Cut-off Frequency | ~10 kHz |
| Other Part Numbers | 1114045 UPSPWR2576198 MPN: PSF10I |
| Nominal Attenuation | 40 dB |
| Included Accessories | IEC-to-IEC output cable IEC socket retention clips User guide / documentation |
| Manufacturer Website | http://www.eaton.com |
| Standards / Compliance | AS3100 AS1768 IEC 61643-11 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 |
| Accessories Not Included | Input mains cable (3-pin plug to IEC) |
| Manufacturer Part Number | PSF10I |
| Surge Suppression Rating | 20 kA (L-N) |
| Dimensions (H x W x D, mm) | 55 x 90 x 205 |
