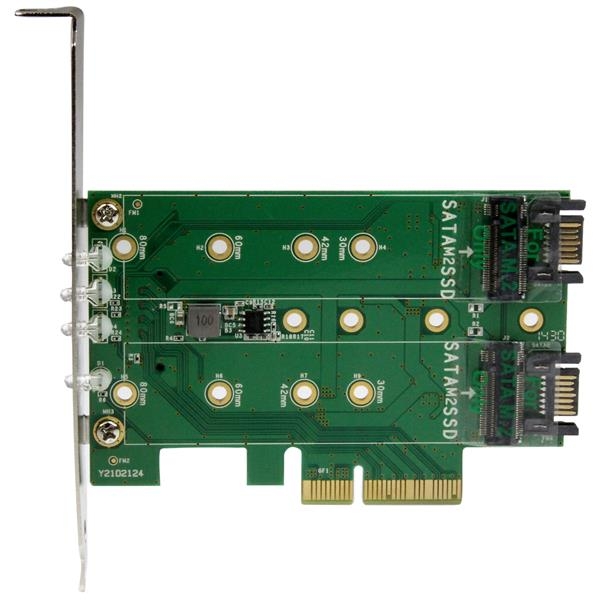

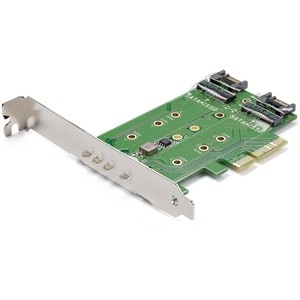

Startech 3-port M.2 Ssd (ngff) Adapter Card - 1 X Pcie (nvme) M.2 2 X Sata Iii M.2 - Pcie 3.0 - Pci Express 3.0 M.2 Ngff Card - Ssd Host Card Pexm2sat32n1
| SKU: | 231186 |
|---|---|
| MPN: | PEXM2SAT32N1 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
Increase the storage of your desktop PC
If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.
Optimize your computer’s performance
When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.
Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Leverage the size and speed of M.2 drives
This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.
Supports a wide range of drives
You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.
The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Connector(s) | |
| Connector Type(s) | PCI Express x4 Male |
| Internal Ports | M.2 (NGFF, M-Key, PCIe x4) Receptacle |
| M.2 SATA (NGFF, B-Key) Receptacle | |
| SATA (7 pin, Data) Plug | |
| Environmental | |
| Humidity | 20%~80% RH (Non-condensing) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards | PCI Express 3.0 |
| Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps) | |
| Interface | M.2 PCIe |
| M.2 SATA | |
| SATA | |
| Port Style | Integrated on Card |
| Ports | 3 |
| Indicators | |
| LED Indicators | M.2 drive status/activity |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 122 g [4.3 oz] |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| MTBF | 50,000 Hours |
| Port Multiplier | No |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 46 g [1.6 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required Note: When installed in a compatible operating system, the card is natively supported and doesn?t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express). |
| Special Notes / Requirements | |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. |
| System and Cable Requirements | A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot |
| An operating system that natively supports PCIe SSDs (NVMe), such as: - Windows? 7 and later - Mac OS 10.10.3 and later | |
| One or two SATA host ports on the host computer (for example, the SATA controllercard, or the motherboard SATA ports inside of your computer) | |
| What's in the Box | |
| Included in Package | 3-port M.2 NGFF SSD adapter card |
| low-profile bracket | |
| M.2 mounting nuts | |
| M.2 mounting screws | |
| screwdriver | |
| quick-start guide | |
| M.2 mounting standoffs | |
